Product Details:
|
| Compressor: | French Tecumseh Brand, Germany Brand | Detachable Style: | -70~120 Deg C ; 20%~98%R.H When -70 To 65 Deg C |
|---|---|---|---|
| Control Accuracy Of Humidity: | ±3.5% R.H. | ±3.5% R.H.: | 0.1~3.0°C/min |
| Integral Style: | -70~150 Deg C / 20%~98%R.H | Control Accuracy Of Temperature: | ±0.5℃ |
| Cooling System: | Water Cooling | Temp.Falling Rate: | 0.1~1.0°C/min |
| Highlight: | Temperature Humidity Test Chamber,Temperature Humidity Chamber |
||
Humidity Range 20%~98%R.H Humidity Chamber Used AC 380V50/60HZ

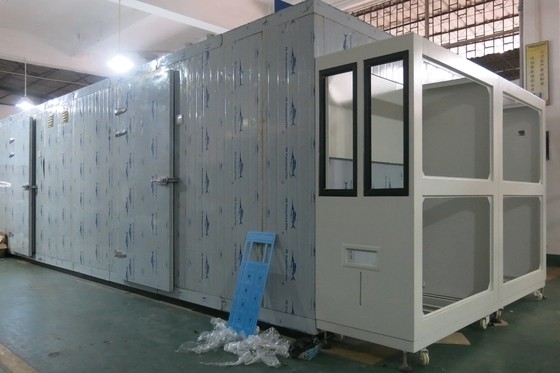

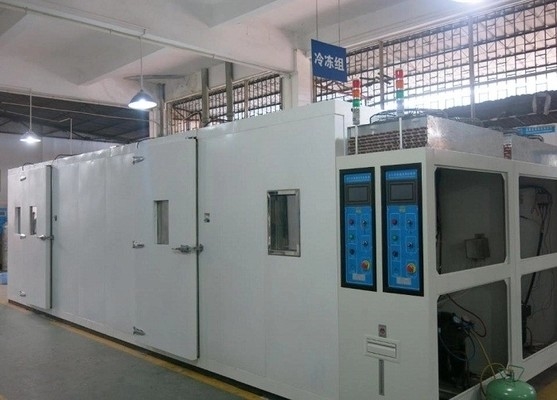

Large environmental walk in chamber / walkin in stability chamber for lab test Application:,
walk in environmental temperature humidity chamber used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for for all types of electronic products,electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical,building materials, medical and aerospace industries.
Large environmental walk in chamber / walkin in stability chamber for lab test Features:
1. Graceful appearance, circularly shaped body for , surface treated with mist strips and plane handle with no reaction. Our temperature humdity climatic chamber is easy to operate, safe and reliable.
2. Rectangular double-glassed watching window for the observation of the test production during the testing process.The window is equipped with sweat-proof electrical heating device that can prevent water steam from condensing into droplets, and with high brightness PL fluorescent bulbs to provide light inside the box.
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. The French Tecumseh brand is used for the circulation system of the compressor, capable of removing the lubricant between the
condensation pipes and capillaries. The environment protecting coolant is used for the whole series (R23, R404A).
6. Imported LCD display screen, capable of displaying the measured value as well as the set value and time.
7. The controller of environmental chamber has the functions of multiples segment program editing, and of quick or slope control of temperature and humidity.
8. Inserted mobile pulley, convenient for movement an relocation, with strong positioning screws.
Technical Parameters:
| Model | low-temperature options : A ~ F |
| Inner Dimensions(cm) | Customers designated space size and design |
| Temperature Range | Low Temperature(A:25°C B:0°C C:-20°C D:-40°C E:-60°C F:-70°C) High Temperature 80°C (80°C ~150°C is optional) |
| Humidity Range | 20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is a special optional condition, need dehumidifier) |
| Analytic Accuracy /Distribution Uniformity of Temperature& Humidity |
0.1°C; 0.1% R.H/±2.5°C; ±3.5% R.H. |
| Control Accuracy of Temperature and Humidity |
±0.5°C; ±2.5% R.H. |
| Temperature Rising /Falling speed Rate |
Temperature rising approx. 0.1~3.0°C/min temperature falling approx. 0.1~1.0°C/min;( The Falling Speed Rate Min.1.0°C/min is a special optional condition) |
| Cooling System | Water cooling |
| Protection Devices | Fuse-free switch, overloading protection switch for compressor,high and low voltage coolant protection switch, over-humidity & over-temperature protection switch, fuses, fault warning system, water short storage warning protection |
| Optional Accessories | Slope for cart , Recorder, Water Purifier, Dehumidifier |
| Compressor | French Tecumseh Brand, Germany Brand |
| Power | AC 380 V,50/60HZ ,3ph 5 Lines |
Advantage:
1 Programmable control, touch screen operation
2. It can spray regularly, intermittently and evenly
3.24 hours online
4.Sample chamber of each model
5. Best price, fast delivery
6.OEM,ODM
7.Oversea offices
8.Own import and export business license
9.ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
Need more info for Large environmental walk in chamber / walkin in stability chamber for lab test, please let us know,thank you
