Product Details:
|
| Customized Support: | OEM | Temperature Fluctuation: | ±1.0℃ |
|---|---|---|---|
| Power: | 220V , 50Hz | Controller Resolution: | ±0.3℃；±2.5%RH |
| Body Materials: | SUS#304 Stainless Steel Plate | Temperature Uniformity: | ±2.0℃ |
| Condenser: | Water-cooled Condensing Agent | ||
| High Light: | Temperature Humidity Test Chamber,Temperature Humidity Chamber |
||

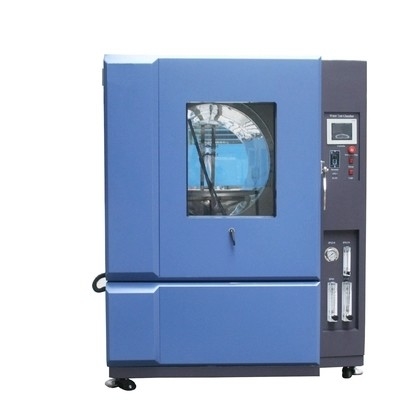

Small 220V 50Hz Environmental Test Chamber Overtemperature Protection

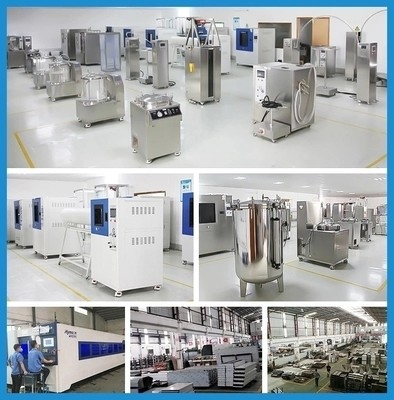

We produce:
The different varieties of humidity chambers allow testing to be completed in a static or dynamic state depending on the required data and the type of product. Humidity chambers are used as extended testing chambers to determine a specimen‘s reaction to elevated moisture conditions when exposed for weeks or months.
It is intended for research and quality control of various materials, products, components, assemblies, structures, mechanisms, measuring instruments, etc. associated with temperature exposure at low temperatures down to -30 ° С and positive up to + 100 ° С and humidity from 10% to 98% at certain temperatures (on request).
It is used to simulate special operating conditions in laboratories of radio-electronic, mechanical engineering, food, chemical, pharmaceutical, etc. industries.
A humidity chamber is a mechanism that examines how products react when exposed to variations in humidity. This type of environmental testing is used by manufacturers to test the various parameters of their products in the harshest of conditions.
The purpose of humidity chambers is to test the influence of varying environments on products to determine the length of their usefulness and at what point they will fail. The collected data assists engineers in adjusting their designs and selecting more resilient materials.
Working Principle:
This is so called Fast Shipping Thermal Shock Test Chamber, Thermal Chamber, Thermal Shock Chamber.
Sample is placed in the test chamber, more extreme temperature than test temperature can be set in high-temperature chamber and low-temperature chamber. When it comes to low temperature test, cold chamber door open, and low-temperature chamber working together with test chamber.
When converted into high-temperature test, cold chamber door closed, hot chamber door are opened, and test chamber working together with high-temperature chamber.
Conversion of mechanical action (transferring from high temperature to low temperature or low temperature to high temperature) can be completed in less than 1second, and the temperature can be quickly stabilized. During the whole test, test sample is no need to be moved, and without any human intervention.
Specification:
| Voltage | 1Ø 220V 50Hz/ 3Ø 380V 60Hz/Customized |
| Temperature range | -70℃ ～180℃ |
| Humidity range | 10% ～98%RH (5%~98% R.H. customized) |
| Temp.& humidity control fluctuation | ≤±0.5℃, ≤ ±2.5%RH |
| Indication resolution | 0.01℃, 0.1 %RH |
| Temp.&humidity Uniformity | ≤±1.5℃,≤±2.5% RH |
| Heat up&Cool down time | ≤5℃/min for heating; ≤ 1.2℃/min for cooling |
| Cooling type | Air cold |
| Chamber materials | SUS#304 stainless steel for Inner chamber with thickness 1.5mm Steel plate for external chamber with thickness 1.5mm |
| Insulation materials |
Rigid polyurethane foam + ultrafine glass fiber with thickness of 100mm |
|
|
Refrigerating unit, water supply and drainage device, blower fan, power distributing Cabinet; Humidifying and humidity measuring water utilization control device |
|
|
Heat emission blower fan Distribution switchboard Test terminal of sample USB physical interface (need to be purchased together with centralized monitoring software) Residual current circuit breaker of main power supply |
|
|
Basin heating humidifying method Stainless steel armored heater is adopted in basin humidification Control mode of heater: non contact equal period pulse-width modulation, SSR (solid state relay) Water level control device, dry heating prevention device of heater |
| Humidifier | 1.Basin heating humidifying method 2.Control mode of heater: non contact equal period pulse-width modulation, SSR (solid state relay) 3.Water level control device, dry heating prevention device of heater |
|
|
Temperature (humidity) control display, over temperature protection setting device,emergency switch, run indicator, failure indicator |
|
|
Imported Compressor Fits wide range of pressure Higher heating efficiency Easy to maintain |
|
|
1.Unique design of the box within the wind circulation structure, to ensure that under the conditions of the test with the case of uniformity within the box within ± 2 ℃ 2.Unique design of the humidity test when the top of the box anti-drip design to ensure that live test from water short circuit,
surface water pollution
3.Using the latest environmentally friendly adsorption drying processor, effective control of the product when the surface
temperature condensation 4.The refrigeration room is fully sealed and soundproofed to reduce machine noise and box resonance, machine noise control within
75db./Other Contact us |
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
- A variety of industrial and laboratory drying ovens;
- Muffle and chamber furnaces;
