Product Details:
|
| Place Of Origin: | Dongguan China | Direction Of Vibration: | Horizontal Or Vertical |
|---|---|---|---|
| Cooling Method: | Air Cooling | Load Way: | Electronic Load |
| Brand Name: | GSKA | Power Source: | AC380V |
| Material: | Metal | Control: | Computer Control |
| Highlight: | Vibration Tester,Vibration Test Machine |
||

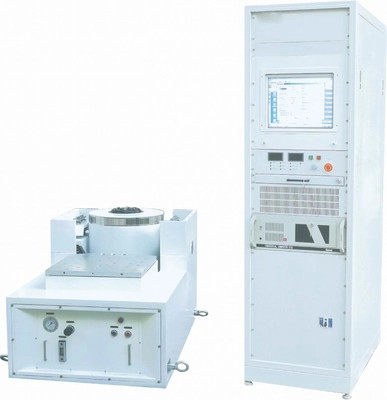

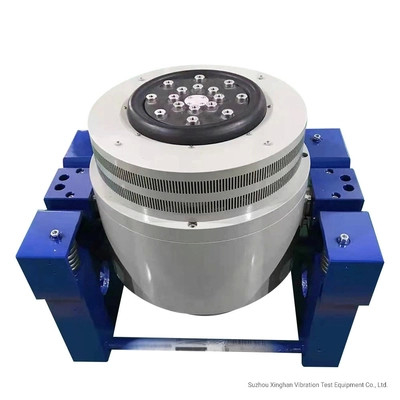

Low Frequency Transport Vibration Test Equipment Horizontal / Vertical
Features:
Large loading capacity, the maximum displacement can be reached at 51MMP-P, low working frequency (2HZ)
It can meet the requirements of the sinusoidal vibration test method (fixed frequency or swept frequency) for the basic test of international transport packages.
The table body is guided by hydraulic wheels and linear bearings with low axial rigidity
Air spring support, large load capacity, good low frequency characteristics, high stability
| Technical indications/Size | GSKA -150 |
GSKA -200 |
GSKA -300-1 |
GSKA -300 |
GSKA -600-1 |
GSKA -600 |
GSKA- 1000-1 |
GSKA- 1000-2 |
|
| major indications of system | Maximum sinusoidal excitation force (N) | 1470 | 1960 | 2940 | 2940 | 5880 | 5880 | 9800 | 9800 |
| Rated frequency range (Hz) | 2-2500 | 2-2500 | 2-2500 | 2-2500 | 2-2500 | 2-2500 | 2-2500 | 2-2500 | |
| Rated unloaded acceleration (M/S2) | 184 | 245 | 367 | 346 | 490 | 490 | 1020 | 1020 | |
| Rated speed (M/S) | 0.8 | 1.2 | 1.1 | 1.2 | 1.1 | 1.45 | 1.4 | 1.8 | |
| Rated displacement (mmp-p) | 40 | 40 | 40 | 40 | 51 | 51 | 51 | 51 | |
| Maximum loading test (KGS) | 140 | 140 | 140 | 140 | 300 | 300 | 140 | 140 | |
| Power consumption (KVA) | 5 | 6 | 7 | 8 | 11 | 14 | 18.5 | 20.5 | |
| Voltage (V) | 380V±10% AC50Hz | ||||||||
| Vibration bench | model | GSKA-200 | GSKA-200 | GSKA-300 | GSKA-300 | GSKA-600 | GSKA-600 | GSKA-1000 | GSKA-1000 |
| Mass of moving part(kg) | 8 | 8 | 8 | 8 | 12 | 12 | 9.5 | 9.5 | |
| Bench size(mm) | Φ230 | Φ230 | Φ230 | Φ230 | Φ230 | Φ230 | Φ200 | Φ200 | |
| Bench weight(kg) | 720 | 720 | 720 | 720 | 1050 | 1050 | 950 | 950 | |
| Bench body size(L*W*H)(mm) | 785*495 *600 |
785*495 *600 |
785*495 *600 |
785*495 *600 |
910*740 *770 |
910*740 *770 |
910*620 *780 |
910*620 *780 |
|
| Power amplifier | Model | GSKA-1 | GSKA-2 | GSKA-2 | GSKA-3 | GSKA-3 | GSKA-5 | GSKA8 | GSKA-10 |
| Maximum output power(KVA) | 1 | 2 | 2 | 3 | 3 | 5 | 8 | 10 | |
| Power amplifier weight(kg) | 210 | 210 | 210 | 230 | 230 | 280 | 320 | 340 | |
| Power amplifier size(L*W*H)(mm) | 545*720 *1625 |
545*720 *1625 |
545*720* 1625 |
545*720* 1625 |
545*720* 1625 |
545*720* 1625 |
545*720* 1625 |
545*720* 1625 |
|
| Vibration controller(optional) | GSKA-2A GSKA-3A GSKA-2B GSKA-3A | ||||||||
| Type of cooling | Air cooling | ||||||||
| Executive standard | GB/T13310-1991,GB2423.10-1995,JJG190-1997,IEO68-2-8,company standard Q/320502SN001-2002 | ||||||||
| Remark | Power amplifier-DA type is liner power amplifier,KA is switching power amplifier.controller-SDVC series is sinusoidal vibration control;RDVC series is random control | ||||||||
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
