Product Details:
|
| Sine Thrust: | 600kgf | Continued Displacement: | 51mm |
|---|---|---|---|
| Maximum Acceleration: | 981m/s2 | Allow Eccentric Moment: | ＞190N.m |
| Frequency Range: | 5～2000Hz | Maximum Speed: | 2m/s |
| Moving Coil Diameter: | Φ150mm | Maximum Load: | 120Kg (customer Request 45Kg) |
| Highlight: | Vibration Tester,Vibration Test Machine |
||

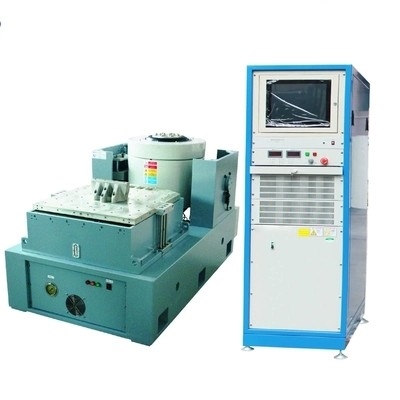

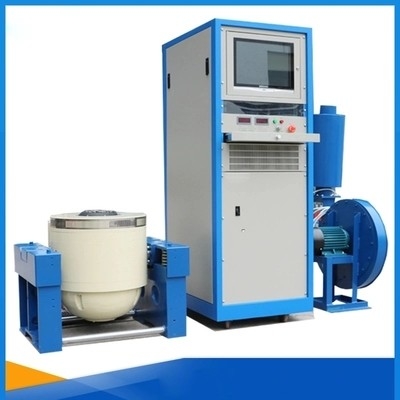

OEM Vertical / Horizontal Vibration Test Table Amplifier Output 8kVA
High first order resonance frequency and the wide using frequency:
Optimize the design of the armature skeleton structure, especially strengthen the design of the weak links such as the skeleton force transmission angle plate of the traditional armature structure, which effectively improves the force transmission rigidity. The new structure of the ring cylinder strengthens the glue hole and enhances the stiffness of the winding. Significantly increased the first-order resonance frequency of the moving coil, exceeding the international similar quality
High reliability of armature winding:
The original new structure and new process of armature winding reinforcement ring significantly improve the vibration resistance reliability of armature winding in the working environment of large thrust, high acceleration vibration, shock and high temperature.
High efficiency air cooling:
Innovative cooling air tunnel design: improved air intake structure, upper magnetic ring replaces circular hole type air inlet ; excitation coil adopts honeycomb air passage and middle magnetic ring adopts double air flow type wind .The track and the lower magnetic ring adopt a new structure such as a wedge-shaped air duct, which significantly improves the cooling effect.
.Sinusoidal vibration test:
Sine vibration test control parameters are mainly two, namely the frequency and amplitude. According to the frequency change and invariant divided into fixed frequency and sweep two. Fixed frequency test is mainly used for:
A) Resonance frequency processing: the vibration frequency of the product found in the frequency of the apparent resonance frequency, the provisions of the vibration parameters of the vibration amplitude to assess the product resistance to resonance vibration.
B) Resistance to constant frequency processing: In the known product using the ambient conditions of vibration frequency, can be used to determine the frequency of vibration test, the purpose is to assess the product at a given risk frequency to withstand vibration.
System Performance parameters
| Vibration table | |
| Sine thrust | 600kgf |
| Random thrust | 600kgf |
| Impact thrust | 1200kgf |
| Frequency Range | 5～2000Hz |
| Continued displacement | 51mm |
| The impact of displacement | 51mm |
| Maximum speed | 2m/s |
| Maximum acceleration | 981m/s2 |
| Moving coil diameter | Φ150mm |
| Allow eccentric moment | ＞190N.m |
| Load connection point | 6 piont |
| Equivalent mass of moving parts | 6kg |
| Countertops screw size (standard) | M8 |
| Screw layout table (diameter, circumference) | 8 on Φ100mm,8 on Φ,200mm. |
| Axial isolation frequency | ＜3Hz |
| Maximum load | 120Kg (customer request 45Kg) |
| Magnetic flux leakage | ＜1mT |
| Dimensions (without packaging)(L×W×H) | 1600mm×985mm×850mm |
| Vibration table Weight | 1850kg |
| Amplifier output | 8kVA |
| SNR | ＞65dB |
| System Protection | The entire power amplifier has: Grid overvoltage, undervoltage power grid phase, logical failure, power module protection, power module temperature, output overcurrent, output overvoltage, power supply, displacement units, units body temperature, external linkage, etc. protection circuit, when any fault occurs, turn off the output, sound and light alarm. In addition to the above protection, it also has a protective function RMS values of tolerance protection, emergency stop devices, such as improving running. |
| Rated output voltage | 120Vrms |
| Amplifier efficiency | ＞95% |
| Fan | |
| Power | 0.75kW |
| Airflow | 0.3m3/s |
| Duct diameter | 120mm |
| Pressure | 0.048kgf/cm2 |
| Vertical extension table | |
| Table size | 600mm×600mm |
| Equivalent mass | 23kg |
| Upper frequency | 2000Hz |
| Countertop Materials | Aluminium |
| Horizontal slide | |
| Table size | 600mm×600mm |
| Thickness | 30mm |
| Countertops weight | 36kg |
| Frequency | 2000Hz |
| Bearing number | 1 |
| Bearing weight | 0.58kg |
| Connector Weight | 1.4kg |
| Maximum Load | 300kg |
| Countertop Materials | Aluminium |
