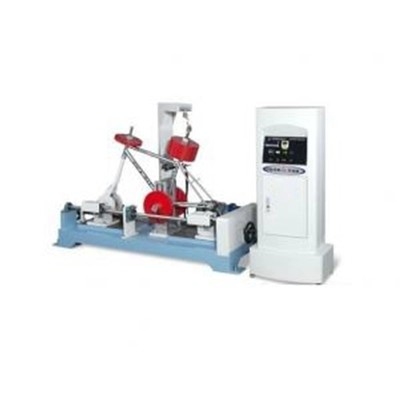

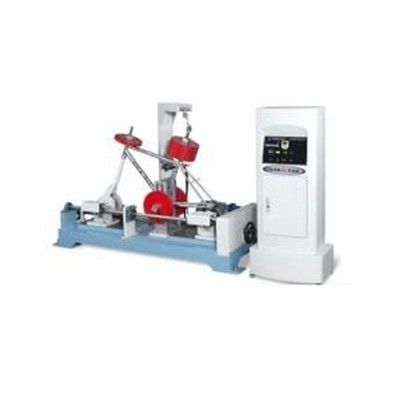

Touch Screen Bicycle Frame Front Fork Vibration Test Machine AC220V 60Hz

Touch Screen Bicycle Frame Front Fork Vibration Test Machine AC220V 60Hz
Touch Screen Bicycle Frame Front Fork Vibration Test Machine AC220V 60Hz Touch Screen Bicycle Frame Front Fork Vibration Test Machine AC220V 60Hz

Large Image :  Touch Screen Bicycle Frame Front Fork Vibration Test Machine AC220V 60Hz

Product Details:
Place of Origin: DongGuan,China
Brand Name: GSKA
Certification: CE
Model Number: Vibration Testing Machine
Payment & Shipping Terms:
Minimum Order Quantity: negotiate
Price: negotiate
Packaging Details: The outer packing is first packed with foam plastic, and then reinforced with strong wooden cases.
Delivery Time: 15-20working days after received deposit
Payment Terms: L/C, T/T
Supply Ability: 150 Set / Sets per Month

Touch Screen Bicycle Frame Front Fork Vibration Test Machine AC220V 60Hz

Description
Place Of Origin: Dongguan China Certification: CE SGS ROHS UL CE Model Num: Vibration Testing Machine
Front And Rear Amplitude: 0-25.4mm, Adjustable Test Frequency: 0-15Hz Adjustable
Brand Name: GSKA Power Supply: AC220V, 50/60Hz
The Weight Of The Whole Machine: About 1400 Kg Acceleration: 0-3.2g
Highlight:

Vibration Tester

,

Vibration Test Machine

Touch Screen Bicycle Frame Front Fork Vibration Testing Machine



Application:



The electric bicycle frame front fork vibration testing machine can dynamically simulate the loading of the electric bicycle frame/front fork assembly to realize the test process of the vibration of the frame/front fork assembly. This equipment is mainly used to test the strength performance of the frame/front fork assembly, and is suitable for front and rear vibration testing of the electric bicycle frame.



Principle:



The test sample is fixed on the test bench according to the standard test requirements, completely simulating the force of the electric bicycle during the riding process, setting the test force magnitude and the vibration frequency according to the standard, and observing the frame after a certain number of tests Whether there are cracks or cracks, whether the connecting parts and fasteners are loose or not, if the test piece is damaged in the middle of the test or the number of test pieces reaches the test, the machine will automatically stop and retain the test result.



Technical parameters:


1) Number of tests: 0-999999 times arbitrary setting, automatic display of test progress, automatic retention of test results


2) Stop mode: the number of times of arrival or damage to the test piece, automatic stop, and the number of trials retained


3) Micro switch: with safety micro switch, automatic shutdown when test object is damaged


4) Double vibration source, independent vibration control before and after, durable and high anti-resonance;


5) Base: It is specially designed with steel structure and is suitable for various sizes and shapes. It is a multifunctional test bench.


6) Horizontal feet: horizontal adjustment feet on the front, back, left and right, adjustable level


7) Appearance: electrostatic spray, hard chrome plating


8) Vibration reduction mode: the base of the test bench is equipped with a shock absorbing airbag;



Control mode PLC+ touch screen operation
Test frequency 0-15Hz adjustable
Load 0-100kg
Acceleration 0-3.2g
Speed ​​accuracy ±0.5%
Power supply AC220V, 50/60Hz
Front and rear amplitude 0-25.4mm, adjustable
Power source motor driven
The weight of the whole machine about 1400 kg
Machine size 1880*800*1800mm (L*D*H)



Touch Screen Bicycle Frame Front Fork Vibration Test Machine AC220V 60Hz 0


Customer Support Services:


Ø Installation


Ø Training (Training customer employees)


Ø Calibration


Ø Preventative maintenance


Ø Replacement parts


Ø Assistance via phone or internet


Ø On-site diagnosis and repair/online diagnosis and repair



We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
