Product Details:
|
| Refrigeration System: | R134A Refrigerant,Refrigerant CFC- Free | Exterior Chamber Material: | Stainless Steel Plate + Powder Coated |
|---|---|---|---|
| Power: | 220V , 50Hz | Controller Resolution: | ±0.3℃；±2.5%RH |
| Humidity Control Range: | 40~95%Rh (Depends On Temperature, Beyond 10degree) | Temperature Uniformity: | ±2.0℃ |
| Condenser: | Water-cooled Condensing Agent | Customized Support: | OEM |
| High Light: | Temperature Humidity Test Chamber,Temperature Humidity Chamber |
||

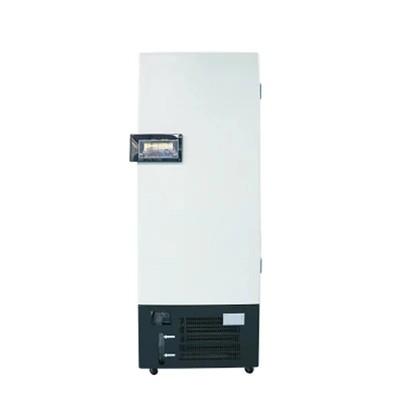

CE Medical Food Climate Stability Test Thermal Shock Chamber Touch Screen 380VAC
FEATURES:
Exceptcold heat shock chamber,Yuanyao team also can supply:
Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
If you want to know more about the product, please feel free to contact me.
Introduction&Application:
Thermal shock chamber is used to test the capability of material structure or composite materials to withstand the continuous environmental changes between extremely high temperature and low temperature during a short period, and therefore understand the chemical changes or physical damages caused by expansion from heat and contraction from cold in the shortest possible time. It is applicable to metals, plastic, rubber, electronics amongst other materials. The test result can be used as a reference or basis for product improvement.
| Model | GSKA200 | GSKA300 | GSKA400 |
| Display | 3.7' LCD | ||
| Capacity | 200L | 300L | 400L |
| Temp. Range | 0~65°C | ||
| Temp. Fluctuation | ± 0.5°C | ||
| Temp. Uniformity | ± 2°C | ||
| Humidity Control Range | 40~95% RH (Depends on temperature, beyond 10°C) | ||
| Humidity Fluctuation | ±3% RH | ||
| Illuminance | 6000Lux,5 level adjustable,1-side illumination | ||
| Shelves | 2 pcs adjustable | ||
| Timing Range | 1~99 hour | ||
| Refrigeration System | R134a refrigerant,refrigerant CFC- free | ||
| Alarm | High or low temperature/humidity ,sensor &systerm failure | ||
| Consumption | 2400W | 2900W | 3400W |
| Power Supply | AC220V±10%, 50/60Hz | ||
| Chamber Size(W*D*H) | 470*460*1180mm | 490*475*1280mm | 560*600*1200mm |
| External Size (W*D*H) | 665*880*1820mm | 685*895*1920mm | 755*1020*1840mm |
| Packing Size(W*D*H) | 1010*800*1990mm | 1040*790*2090mm | 1140*870*2040mm |
| Gross Weight | 158kg | 178kg | 200kg |
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
