Product Details:
|
| Business Type: | Manufacture(OEM And ODM) | Material: | Stainless Steel |
|---|---|---|---|
| Temperature Uniformity: | ±2℃ | Brand: | GSKA |
| Keyword: | Industrial Drying Oven | Temperature Resolution: | 0.1 |
| Temperture Range: | RT+10℃～500℃ | Power: | Electronic |
| High Light: | Temperature Humidity Test Chamber,Temperature Humidity Chamber |
||

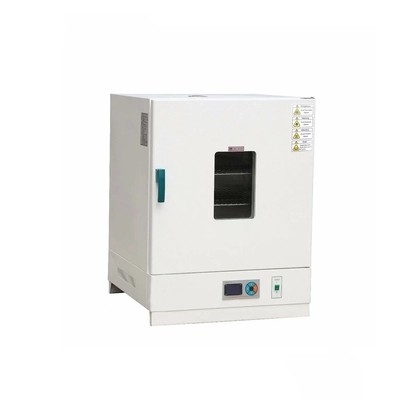

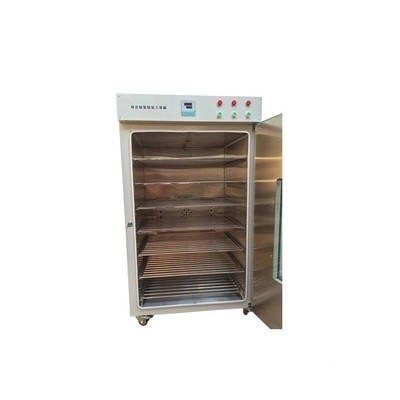

ODM 220V Vacuum Industrial Drying Oven Rustproof With Timing Device
Characteristics of Dryer :
1. The deyer is made of high quality cold-rolled steel plate and the electrostatic spraying on the surface. It has new appearance. It is durable.
2. The working room of our drying oven adopts high quality stainless steel plate or cold-rolled galvanized steel sheet with the advantages of high temperature resistance, corrosion resistant and no dark smoke.
3. Dryer has reasonable forced ventilation and circulation or natural convection structure. The internal of working room of drying oven has uniform temperature.
4. Movable pull net stand could increase store space of articles interior.
5. Double-layer tempering glass observation window in the middle of the door is easy for observing the heating situation in the working room at any time.
6. Electric control about drying oven : the use of advanced non-contact circuits, with no noise, high reliability characteristics. Microcomputer intelligent temperature control instrument, a temperature control accuracy, stability, good performance, limit alarm, automatic power-off and so on.
Can be customized:
| Industrial Drying Oven | ||||||
|
Inner Size W*H*D (cm) |
External Size W*H*D (cm) |
Heating up Time |
Accuracy (°C) |
Uniformity (°C) |
Power |
Rate of work (kw) |
| 45×40×40 | 66×92×55 |
RT~100°C About 10min |
±0.3 | ±1% |
220V Or 380V |
3.5 |
| 50×60×50 | 70×125×65 | 4.5 | ||||
| 60×90×50 | 80×156×65 | 5.5 | ||||
| 80×100×60 | 100×166×75 | 8 | ||||
| 90×120×60 | 110×186×75 | 10 | ||||
| 140×120×60 | 160×186×75 | 12 | ||||
| 160×140×80 | 180×206×97 | 14 | ||||
| 180×140×100 | 200×200×118 | 16 | ||||
| This model is based on your requirements, including the design. | ||||||
Advantages:
1. Precision temperature controller provides accurate, stable conditions of constant temperature, in order to facilitate the test or dry conducted.
2. The liquid expansion over-temperature power protection devices, to ensure the safety of the test article.
3.With adjustable air intake and exhaust ports, according to the test conditions of different options , Choose to resize or switch.
4. Timing device for LED Digital constant timing, providing complete use Conditional design.
5. Machine can be designed rely on customers requirements,such as the test cable hole,casters,controller’s position ect.
6. Machine continuous running time is above three month
7. Alarm device ,when over-temperature protection action and timing is complete ,that alarm will inform and automatic shut down.
Best material and stable performance:
The outer shell is made of high-quality steel plate, the surface is electrostatically sprayed, the inner liner is made of
galvanized sheet, and the outer casing is filled with thermal insulation material. The silicone sealing strip is used between the box door and the box body, which is safer to use and has a longer service life.
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
