Product Details:
|
| Loading Method: | Dynamic Load | Exterior Chamber Material: | Stainless Steel Plate + Powder Coated |
|---|---|---|---|
| Power: | 220V , 50Hz | Controller Resolution: | ±0.3℃；±2.5%RH |
| External Size(W*H*D): | 1430*1950*1600mm | Temperature Uniformity: | ±2.0℃ |
| Condenser: | Water-cooled Condensing Agent | Customized Support: | OEM |
| High Light: | Temperature Humidity Test Chamber,Temperature Humidity Chamber |
||

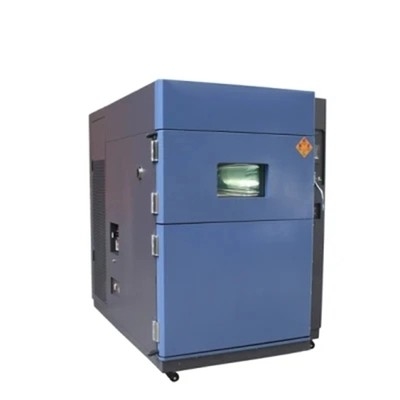

Battery Industry Heat Impact Climate Test Chamber 380VAC Dynamic Load
Introduction&Application:
Thermal shock chamber is used to test the capability of material structure or composite materials to withstand the continuous environmental changes between extremely high temperature and low temperature during a short period, and therefore understand the chemical changes or physical damages caused by expansion from heat and contraction from cold in the shortest possible time. It is applicable to metals, plastic, rubber, electronics amongst other materials. The test result can be used as a reference or basis for product improvement.
Feature:
1. Using powerful air-to-air thermal shock chambers
2. Has hot and cold zones that can be controlled independently
3. Direct-drive lift system for reliability & safety
4. Touch-screen controller for easy operation
Exceptcold heat shock chamber,Yuanyao team also can supply:
Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
If you want to know more about the product, please feel free to contact me.
| Specification | |||||||
| Model | GSKA-050 | GSKA-080 | GSKA-108 | GSKA-216 | GSKA-252 | ||
| Test Area Dim. W× H× D(mm) | 360× 350× 400 | 500× 400× 400 | 600× 400× 450 | 600× 600× 600 | 600× 700× 600 | ||
| External Dim. W× H× D(mm) | 1200× 1820× 1500 | 1430× 1950× 1600 | 1510× 1850× 1850 | 1510× 2050× 2000 | 1510× 2150× 2000 | ||
| High Temp. Range | +80º C---+200º C | ||||||
| Low Temp. Range | -10º C -- -40º C; -10º C ---60º C; -10--- -70º C | ||||||
| Test Temp. Range | +60º C-- +150º C; | ||||||
| -10º C--- -40º C; -10º C---55º C; -10º C--- -65º C | |||||||
| Ferformance | Temp. Constancy | ± 1º C | |||||
| Temp. Recover Time | 3 -- 5min | ||||||
| Heat-at Time | º C | 150 | 150 | 150 | 150 | 150 | |
| min | 30 | 40 | 40 | 40 | 40 | ||
| Pull-downTime | º C | -40 -50 -65 | -40 -50 -65 | -40 -50 -65 | -40 -50 -65 | -40 -50 -65 | |
| min | 60 70 80 | 60 70 80 | 80 90 100 | 90 100 110 | 100 110 120 | ||
| Material | Exterior | Stainless steel piate+Powder Coated | |||||
| Interior | SUS#304 stainless steel piate | ||||||
| Insulation | PU & Fiberglass wool | ||||||
| Systems | Cirulation | siroco fan | |||||
| Heating | Chrome steel strip wire heater | ||||||
| Cooling | Compressor+evaporator fins+air-cooling(or water-cooling)condenser | ||||||
| Controller | CLCD-9800 | ||||||
| Other Components | Control status indicator lights, experiment separation shelves(freely adjustable 2pcs) | ||||||
| Sevey Devices | Overheating prevention circuit-breaker, compressor overload protection, control system overload prevention, breakdown idicator lihgt, high-low compressure protection swith. | ||||||
| Power Source[K. W. ] | AC 3Ψ 380V 60/50Hz | ||||||
| Customization | Customization of inner chamber size, temperature range, etc. | ||||||
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
- A variety of industrial and laboratory drying ovens;
- Muffle and chamber furnaces;
