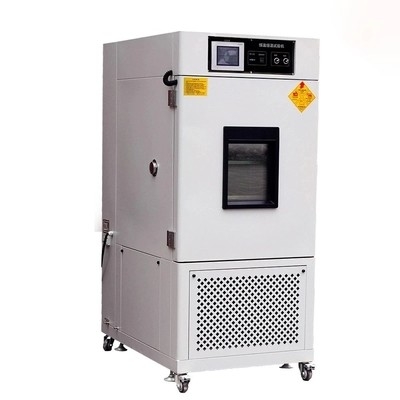

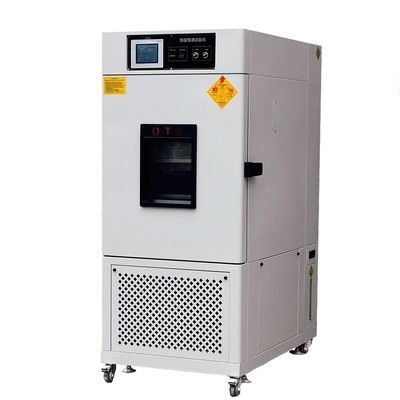

Antiwear 220V High Low Temperature Test Chamber With 1.5mm Steel Plate

Antiwear 220V High Low Temperature Test Chamber With 1.5mm Steel Plate
Antiwear 220V High Low Temperature Test Chamber With 1.5mm Steel Plate Antiwear 220V High Low Temperature Test Chamber With 1.5mm Steel Plate

Large Image :  Antiwear 220V High Low Temperature Test Chamber With 1.5mm Steel Plate

Product Details:
Place of Origin: DongGuan China
Brand Name: GSKA
Certification: CE SGS ROHS UL
Model Number: Temperature Humidity Chamber
Payment & Shipping Terms:
Minimum Order Quantity: negotiate
Price: negotiate
Packaging Details: The outer packing is first packed with foam plastic, and then reinforced with strong wooden cases.
Delivery Time: 15-20working days after received deposit
Payment Terms: L/C, T/T
Supply Ability: 150 Set / Sets per Month

Antiwear 220V High Low Temperature Test Chamber With 1.5mm Steel Plate

Temp.& Humidity Uniformity: ≤±1.5℃,≤±2.5% RH Temperature Fluctuation: ±1.0℃
Customized Support: OEM Condenser: Water-cooled Condensing Agent
Screen Size &Display: 7" TFT-LCD Temperature Uniformity: ±2.0℃
Power: 220V , 50Hz Controller Resolution: ±0.3℃;±2.5%RH
High Light:

Temperature Humidity Test Chamber


Temperature Humidity Chamber

Antiwear 220V High Low Temperature Test Chamber With 1.5mm Steel Plate




1. High-texture appearance, the surface handled through the matte stripes, and use of planar non-reactive handles, easy to operate, safe and reliable.


2. Rectangular complex glass window can be viewed the testing sample, windows with anti-sweat heater device that prevents water vapor condensation, and high-brightness PL light.


3. Double-insulated airtight container, which can effectively isolate the internal temperature of leakage.


4. With an external water supply system can be easy to supply water and automatically reuse.


5. Compressor circulatory system from French "Taikang", more effective removal of oil between the condenser and the capillary and use environmentally refrigerants (R23, R404, R507).


6. Controller imported LCD display screen can be displayed measuring values and setting the value and time.


7. Controller with multi-segment program edited, temperature and humidity can be controlled quickly (OUICK) or slope (SLOP).


8. Built-in mobile pulley easy to move and has a strong positioning screw fixed position.



English LCD display LCD touch-panel, the screen on the input data, and programmable temperature and humidity, backlight adjustable 17, curve, curve of setting/display value. Can display a variety of alerts, failure occurs through the screen display, eliminating failures, eliminate misuse. Multi-PID control functions, sophisticated monitoring functions, and the data displayed on the screen.


  Power 3∮ AC380V 50Hz Weight 360kg/380kg
  Interior size 60*75*50 /50*60*50 Exterior size 110*167*110/108*167*120
  Customized size acceptable Cooling type Water cold
  Temperature range --70℃ ~150℃ Humidity range None
  Temp.& humidity control fluctuation ≤±0.5℃, Indication resolution 0.01℃,
  Temp.& humidity Uniformity ≤±1.5℃, (Put 9 sensor into inner chamber with 9 different location to get uniformity )
  Heat up&Cool down time ≤5℃/min for heating and cooling
  Chamber materials

SUS#304 stainless steel for Inner chamber with thickness 1.5mm

Steel plate for external chamber with thickness 1.5mm




Rigid polyurethane foam + ultrafine glass fiber with thickness of 100mm

Hinged door, single door open in the central cabinet ( the front of the chamber)

Heat distribution on the door (automatic adjustment) anti-frost, anti-condensation insulating glass observation window

Door electric equipment (automatic adjustment) anti-frost, anti-condensation device

Preparation inside the door lights (LED longevity and efficient light source)


Communication interface: RS232

Test hole: diameter 50mm 1 pieces (size can be customized)

Observation window: Tempered glass (size can be customized)

One light: 9 w/AC220V

Foot wheel: four castor, four balance goblet

Sample shelf: stainless steel rack 2 pieces

In the total bearing weight (bottom and rack combined) no more than: 200 kg

  Control panel Controller+ operation button+over heating protection device +RS232 and USB interface

Air Circulation&

Drain system

(1) Centrifugal fan & imported motor

(2) Reverse uniflow(air flow direction)

(3) Flow-throws wind

(4) Inner air circulation fan, wind channel and stainless steel cycle fan, through the top window and air diffuser, the wind will out uniformly from the top, which could reach the purpose of control temperature uniformly.

(5) Drain system uses swirl type outlet and U-trap deposition unit



Application :


Temperature adaptability test under the condition of rapid change, or gradient for electrical, electronic, instruments and other products or spare parts, particularly applies to environmental stress screening test (ESS)

Environmental stress screening (ESS) refers to the process of exposing a newly manufactured or repaired product or component (typically electronic) to stresses such as thermal cycling and vibration in order to force latent defects to manifest themselves by permanent or catastrophic failure during the screening process. The surviving population, upon completion of screening, can be assumed to have a higher reliability than a similar unscreened population.

ESS can be performed as part of the manufacturing process or it can be used in new product qualification testing.

ESS Testing Purpose:

Testing at the physical environmental conditions (shock, vibration, temperature, altitude, humidity, etc.) that simulate those encountered over the operational life of the component. Random vibration and temperature cycling have proven to be the most successful forms of ESS in terms of effective flaw precipitation.



Antiwear 220V High Low Temperature Test Chamber With 1.5mm Steel Plate 0

We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency


More produced:


Temperature Humidity Test Chamber
Walk-in Aging Chamber
Environmental Test Chambers
Thermal Shock Chamber
Fast Temp. Change Test Chamber
Vibration Shaker
Environmental Vibration Chamber
Mechanical Shock Tester
UV Chamber
Xenon Chamber
highly accelerated stress testing
Salt Spray Test Chamber
Paper Packing Test Equipment
Video Measuring System
Metallographic Analysis Equipment
Mechanical Test Equipment
Other Test Equipment

Customers Support Services

1. Installation;

2. Training (Training customer employees);

3. Calibration;

4. Preventative maintenance;

5. Replacement parts;

6. Assistance via phone or internet;

7. On-site diagnosis and repair/online diagnosis and repair;
