Product Details:
|
| Compressor: | French Tecumseh Brand, Germany Brand | Humidity Range: | 5%-98%RH |
|---|---|---|---|
| Control Accuracy Of Temperature: | ±0.5℃ | Power: | AC380V |
| Keyword: | Programmable Walk In Stability Chamber | Temperature Range: | -40℃~150℃ |
| Control Accuracy Of Humidity: | ±3.5% R.H. | Test Time: | 1~9999 Minutes(arbitrary Setting) |
| High Light: | Temperature Humidity Test Chamber,Temperature Humidity Chamber |
||

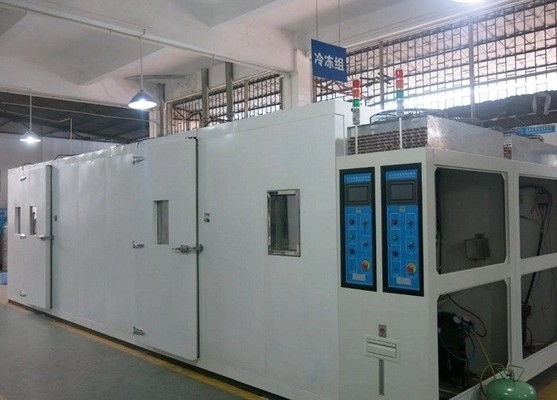

Climatic Programmable Walk In Stability Chamber BS ASTM Standard
USES:
※ Aging room, also known as burning room, is one of the commonly used equipment in various aging tests, widely used in electronics, computers, communications and other fields. The aging room is usually composed of envelope structure, air duct system, control system, indoor test architecture, etc.

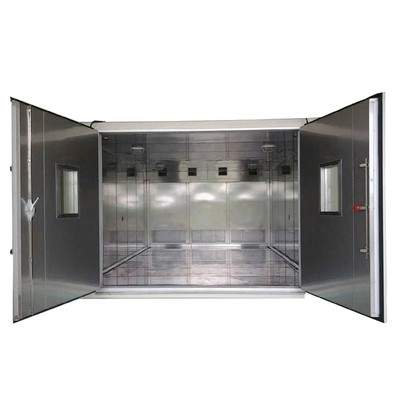

※ The structure of aging room is generally assembled by thermal insulation board (double-sided color steel plate, heat preservation material in the middle) on site. The room size is designed according to customer requirements. The whole room appearance is beautiful, the structure is firm, and the installation is convenient and fast, and the construction period is short. An observation window can be set on the wall of the room according to the needs, so as to facilitate the observation of indoor product testing outdoors. The wall is also equipped with different voltage sockets to meet the needs of the product aging test.
Features:
※ Accurate temperature control, high precision. Due to the use of the best air duct system design and electric control system, can maintain the temperature uniformity of the whole room, much higher than similar products.
The room setting temperature range is wide and can be adjusted continuously. It can be set freely in the range of normal temperature ~60℃. If the customer special request, can design higher temperature products.
※ Multi-point temperature rolling display in the room, accurate and clear monitoring.
※ System protection function is complete, can ensure safe and long-term stable operation.
※ Beautiful appearance, convenient construction, short construction period.
Technical Parameters:
| Model | GSKA-10001 |
| Inner Dimensions(cm) | Customers designated space size and design |
| Temperature Range | RT+10℃~80℃(80℃ ~150℃ is optional) |
| Indication Resolution / Distribution Uniformity of Temperature | 0.1℃ /±2.5℃; |
| Control Accuracy of Temperature | ±0.5℃; |
| Temperature Rising Speed Rate | Temperature rising speed: approx. 0.1~3.0 (℃/min) |

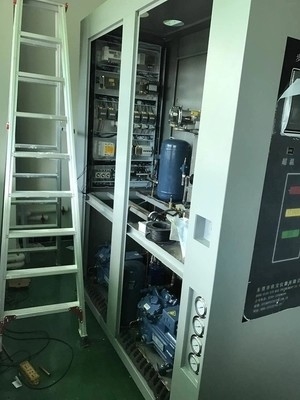

| Cooling System | Refrigeration by compressor, according to customer’s requirements |
| Protection Devices | Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-temperature protection switch, fuses, fault warning system |
| Optional Accessories | Slope for cart , Recorder |
| Compressor | French Tecumseh Brand, Germany Bizer Brand |
| Power | AC 380 V,50/60HZ ,3∮ 5 Lines |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
Do you have any question please contact with us for this Climatic Programmable Walk In Stability Chamber BS ASTM Standard,thank you
