Product Details:
|
| Compressor: | French Tecumseh Brand, Germany Brand | Humidity Range: | 10%-98%RH |
|---|---|---|---|
| Control Accuracy Of Temperature: | ±0.5℃ | Power: | AC380V |
| Keyword: | Climate Test Room | Temperature Range: | -40℃~120℃ |
| Control Accuracy Of Humidity: | ±3.5% R.H. | Test Time: | 1~9999 Minutes(arbitrary Setting) |
| High Light: | Temperature Humidity Test Chamber,Temperature Humidity Chamber |
||

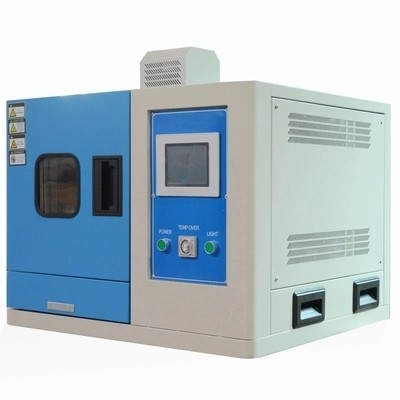

Walk In Temperature Humidity Climate Test Chamber Ac380v With Pid Ssr Control
Heating humidifying:
The heater adopts porcelain frame nickel chromium wire electric heater, which has little thermal inertia and long life.
By the instrument output controllable pulse duty cycle PID signal, through solid state relay to control, the control is stable and reliable.
Refrigeration system:
Compressor: imported semi-closed German valley wheel;
The United States "Ai Gao" dryer filter, Taiwan "Guan Ya" oil separator, Italy "Castor" solenoid valve;
The refrigerating system adopts unit or binary cryogenic loop system design;
The multi-wing blower is adopted for strong air circulation to avoid any dead Angle and make the temperature distribution uniform in the test area;
The air pressure and wind speed are in line with the test standard, and the temperature stabilization time is fast at the moment of opening the door;
Heating, cooling and system independence can improve efficiency, reduce test cost, increase life and reduce failure rate.

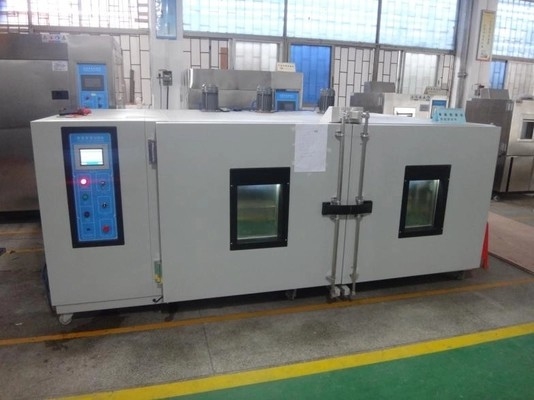

The walk-in constant temperature and humidity chamber has the characteristics of large test space, and the operator can operate the test products in the laboratory. It provides the conditions of temperature and humidity environment testing for the batch or large parts, semi-finished products and finished products of industrial manufacturers.
The ADVANCED Chinese LIQUID CRYSTAL DISPLAY screen TOUCH screen, can carry ON ALL kinds of complex program setting, program setting adopts the dialogue way, the operation is simple and fast. It can realize automatic operation of refrigerator and realize automation to the greatest extent. LAN communication interface can be configured, which is convenient for users to make remote distance process and centralized control. Can record 90 days of temperature, temperature parameters, quite equipped with a paperless recorder.
Detailed Parameters:
| Humidity range | 20%-95% | |
| Stability | Temperature | ±0.5℃ |
| Humidity | ±2%RH | |
| Uniformity | Temperature | ±2℃ |
| Humidity | ±3%RH | |
| Deviation of temperature and humidity | ≤±2℃/±3%RH | |
| Heating time | Can be designed as client need | |
| Cooling time | Can be designed as client need | |
| Structure size | Can be designed as client need | |
| Structure materials | Combination of a walk-in library board disassembly,inner case:SUS 304 plate,outside case:color plate,insulation layer:PU foam,Base:GB angle iron+channel | |
| Refrigeration system | Closed or semi-close imported compressor,evaporator heat sink doubles as a dehumidifier | |
| Heating,humidification system | Heating:stainless steel fin tube heating the air heating mode,humidification,stainless steel sheath-type electric steam | |
| Safety devices | No fuse overload protection,the compressor overheating,over current,over-pressure,heating,humidifying dry,water tank alarm system | |
| Controller | Large LED display function,and strong expansion of the dedicated controller | |
| Standard accessories | Test hole(50mm) Indoor proof lamp | |
| Power | AC35w 380V/50HZ | |
