Product Details:
|
| Cooling Type: | Water Cold | Temperature Fluctuation: | ±1.0℃ |
|---|---|---|---|
| Customized Support: | OEM | Condenser: | Water-cooled Condensing Agent |
| Screen Size &Display: | 7" TFT-LCD | Temperature Uniformity: | ±2.0℃ |
| Power: | 220V , 50Hz | Controller Resolution: | ±0.3℃；±2.5%RH |
| High Light: | Environmental Humidity Chamber,Humidity Test Chamber |
||

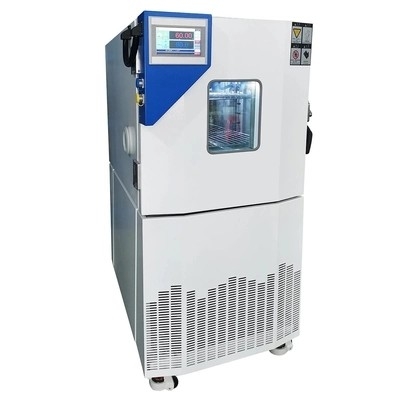

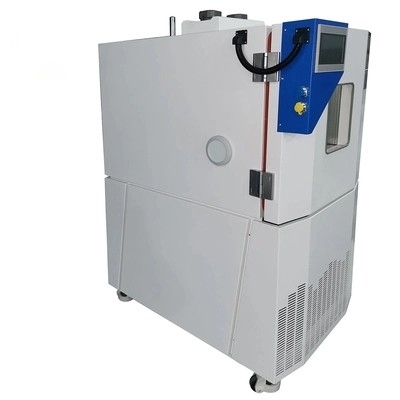

380kg Constant Temperature Humidity Chamber Multifunctional Dustproof
Main features:
1, perfect design: circular shape and surface spray, high-texture appearance, and no reaction with flat handle, easy, safe and reliable.
2, bright, broad vision of the large observation window: The three vacuum coating windows and Philips energy-saving fluorescent lamps, without wipers defogging keep clear observation results can always observe the condition of the test sample.
3, humidification system piping and control circuit separation: humidification system piping and power supply, controller, circuit board separation, avoid the affected pipeline leakage circuit to improve safety.
4, advanced and reliable refrigeration and control systems: closed compressor imported from Europe, imported environmentally friendly refrigerant, a world-renowned brand refrigeration device, imported LCD touch screen controller, friendly interface, easy to learn
Test Standard:
1. IEC - 529 dustproof test method
2. GB4208-93 dustproof test method
3. GB2423.37-89 dustproof test method
4. GJB150.12 dustproof test method
Specification:
| Power | 3∮ AC380V 50Hz | Weight | 360kg/380kg | ||
| Interior size | 60*75*50 /50*60*50 | Exterior size | |||
| Customized size | acceptable | Cooling type | Water cold | ||
| Temperature range | --70℃ ～150℃ | Humidity range | None | ||
| Temp.& humidity control fluctuation | ≤±0.5℃, | Indication resolution | 0.01℃, | ||
| Temp.& humidity Uniformity | |||||
| Heat up&Cool down time | ≤5℃/min for heating and cooling | ||||
| Chamber materials |
SUS#304 stainless steel for Inner chamber with thickness 1.5mm Steel plate for external chamber with thickness 1.5mm |
||||
|
Insulation materials |
Rigid polyurethane foam + ultrafine glass fiber with thickness of 100mm | ||||
| Door |
Hinged door, single door open in the central cabinet ( the front of the chamber) Heat distribution on the door (automatic adjustment) anti-frost, anti-condensation insulating glass observation window Door electric equipment (automatic adjustment) anti-frost, anti-condensation device Preparation inside the door lights (LED longevity and efficient light source) |
||||
| Accessories |
Communication interface: RS232 Test hole: diameter 50mm 1 pieces (size can be customized) Observation window: Tempered glass (size can be customized) One light: 9 w/AC220V Foot wheel: four castor, four balance goblet Sample shelf: stainless steel rack 2 pieces In the total bearing weight (bottom and rack combined) no more than: 200 kg |
||||
| Control panel | Controller+ operation button+over heating protection device +RS232 and USB interface | ||||
|
Air Circulation& Drain system |
(1) Centrifugal fan & imported motor (2) Reverse uniflow(air flow direction) (3) Flow-throws wind (4) Inner air circulation fan, wind channel and stainless steel cycle fan, through the top window and air diffuser, the wind will out uniformly from the top, which could reach the purpose of control temperature uniformly. (5) Drain system uses swirl type outlet and U-trap deposition unit
|
Product Usage:
This series of products is suitable for aerospace products, information electronic instruments, materials, electrical, electronic products, and various electronic components to test their performance indicators in high and low temperature or humid and hot environments.
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
