Product Details:
|
| Warranty: | 1 Year | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| After Flame Time: | 0~99min And 0~99s Can Be Set. | Burning Angle: | 20°, 45°, 90°(0°); Can Be Adjustable |
| Accuracy: | ±0.01s(KN) | Air Source: | More Than 98% Industrial Methane And Natural Gas |
| Temperature Range: | 0-1000℃ | Power Supply: | AC 220V 50Hz; 45w |
| High Light: | Temperature Test Chamber,Climate Test Chamber |
||

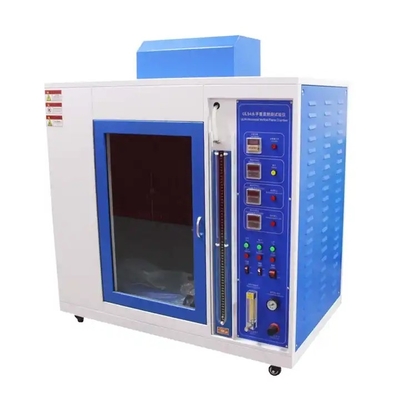

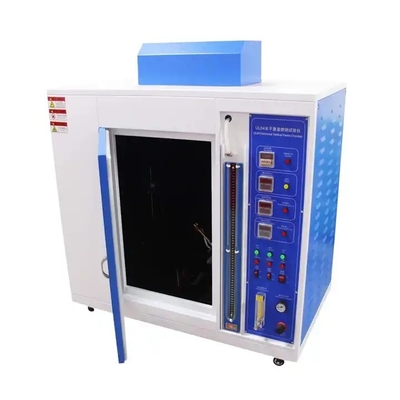

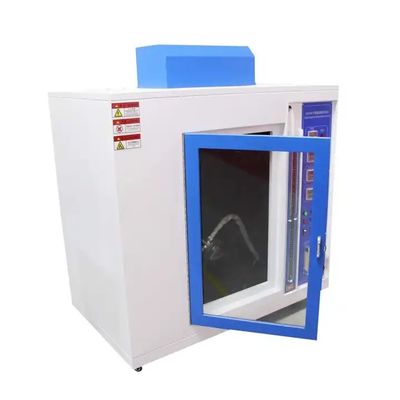

Flammability Test Chamber Is Used For Test The Combustion Performance Of Materials
product presentation:
vertical flame chamber tester is a fully automatic instrument contained in its own cabinet to maximize the safety of the operator. It screening procedure for comparing the relative burning behavior specimens made from plastic and other non-metallic materials, exposed to a flame ignition source of 50W or 500W nominal power. These test methods determine the linear burning rate and the after flame/afterglow times, as well as the damaged length of specimens. They are applicable to solid and cellular materials that have an apparent density of not less than 250kg/m3, determined in accordance with ISO 845. Then do not apply to materials that shrink away from the applied flame without ignition; ISO 9773 should be used for thin flexible materials. And the combustion test device of plastic materials represented by UL-94. It can perform each test of HB.
Standards:
Main Functions
Fire period | 0- 99min99s (optional) |
Burning period | 0- 99min99s (optional) |
Fire-off period | 20º,45º,90º (optional) |
Flame height | 20mm- 175mm (UL standard requires) |
Burner Size Para | inner diameter Ø9.5mm±0.3mm, (Bunsen burner) length of 100mm |
Timer: | 0~999.9s+/-0.1 s (adjustable) |
Gas: | 98% methane |
Outer Size | around 1100mm×700mm×1300mm |
Inner Dimension | 890*650*950mm |
Power Supply | AC 220v/50HZ |
