Product Details:
|
| Maximum Test Force KN: | 600KN | Tensile Space: | 500mm |
|---|---|---|---|
| Power Supply: | AC220V±10%,50Hz | Control Method: | Computer Control |
| Test Force Relative Error: | ±1% Of The Indicated Value | Test Speed Range: | 50-500mm/min |
| Load Range: | 0.4%～100%F·S | Structure: | Single Column Double Spaces |
| High Light: | Tensile Strength Testing Machine,Universal Testing Machine |
||

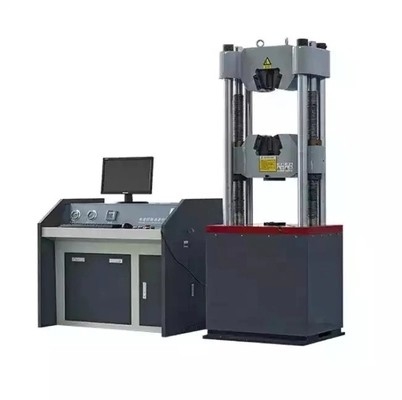

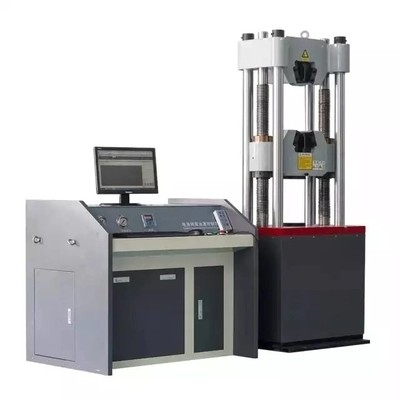

Steel Bar Hydraulic Servo Universal Testing Machine Utm 600KN
Two Point Extension Tensile Test Machine Description :
Two point extention test machine UTM tensile strength tester is applicable to the pull of the load below 0 ~ 500KG;It can do many testinf item ,like pressure;Bending;Tear;Stripping...Etc., the strength and extension of the specimen The experiment was conducted by the computer directly controlled the servo motor, and the test was conducted directly, and the automatic return to the origin was completed, and the test data of more than 100 kinds could be selected with the powerful software.
Two Point Extension Stretch Test Machine product has the greatest adaptability to international standards such as ASTM, ISO, JIS, AATCC, IWTO, BS, DIN, etc.To meet the precise testing of the mechanical properties of various related industries.
Technical Parameters :
| Model | GSKA-600 |
| Support Customized | Yes |
| Max capacity | 5kg,10kg,25kg,50kg,100kg,250kg,500kg (It is optional.) can be setting |
| Induction method : | Precision load cell (sensor) |
| Max. Load Capacity : | 500kg |
| Force Resolution/Accuracy: | ± 0.5% |
| Accuracy class : | 0.5 |
| Resolution: | 1/1,000,000 |
| Test width: | 400mm(Standard specifications special specifications can be customized) |
| Test stroke : | Max.700 mm( included the fixture) |
| Stroke Resolution: | 0.01mm |
| Speed range: | 0.001-20inches/min |
| Reference Machine Dimension: | 580*580*1250mm (W*D*H) Support Customized |
| Power : | 1 phase 220V 50/60Hz |
| Packing | Standard Export plywood case |
| Force system | servo drives + Servo motor + precision ball screw drive |
| Control system | Mechanical transmission + TM2101 + Pulse Command and Control System control |
| Measurement and Control System | TM2101 and control system; master controller uses the most advanced 32-bit ARM processor in the 21st century, the processing speed of the Pentium-class common computer standards, compared to the traditional 8 yuan SCM control system overall performance greatly improved, faster operation, control accuracy higher |
Obtain data |
The key components are used America's most stable and ultra-precision 24 yuan AD, sampling rate of up to 2000 times / sec, can capture the power of instantaneous change process, the entire file, regardless of the resolution of up to 1,000,000 indexing |
| Displacement Control: | Displacement encoder count with four frequency technology So that the displacement of four times the resolution can up to 0.0005mm |
| Safety devices: | 1. overload, emergency stop device
2. the upper and lower travel limit devices
3. the test is completed automatic shutdown device
|
|
|
ASTM D903, ASTM E8 CNS11888, JIS K6854, PSTC7 ASTM D903,GB/T16491CNS-11888,JIS K6854, PSTC-7 ,ASTM E4,ASTM D828,ASTM D882,ASTM,D1938,ASTM D 412 ,ISO 8339ASTM D3330,ASTM F88,ASTM F904,ISO 37,JIS P8113,QB/T 2358,QB/T 1130 , ISO 527 ,ISO 178 and other standards. |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
Need more info about Precision UTM Tensile Testing Machine Two Point Extension Stretch Test Machine ,please let us know,thank you
