Product Details:
|
| Warranty: | 1 Year, | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Model Number: | GSA-M21 | Power Supply: | AC220V 50HZ |
| Brine Temperature: | 35℃±1℃ 50℃±1℃ | Spray Form: | Programmable Spray |
| Power: | Electronic | Testing Capacity: | 108L / 270L /600L |
| Highlight: | Thermal Test Chamber,Environmental Test Chamber |
||

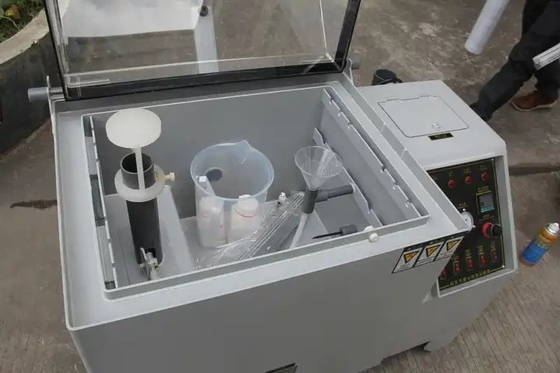

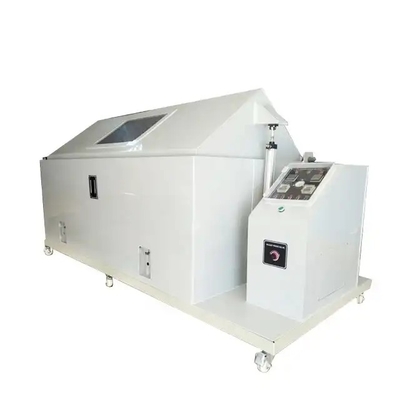

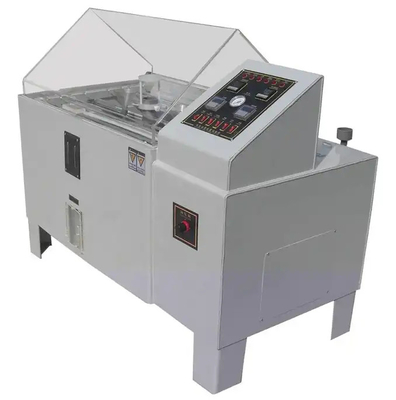

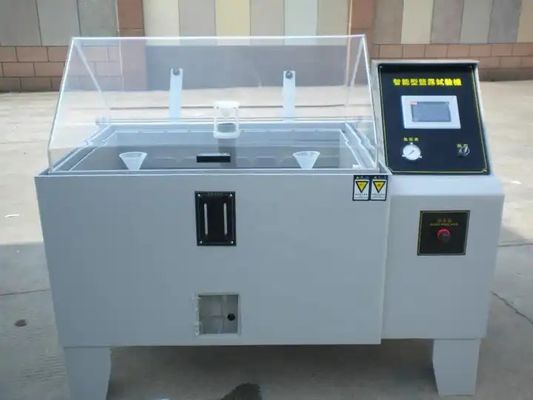

Stainless Steel Salt Fog Test Chamber Is Used For Corrosion Testing Of Products
product presentation:
Salt spray test chamber is used to test the reliability of corrosion resistance of the tested samples by means of salt spray corrosion. Salt spray refers to the dispersion system composed of tiny droplets containing salt in the atmosphere, which is one of the three prevention series of artificial environment. Many enterprise products need to simulate the damage caused by the surrounding climate on the products, so the salt spray test chamber should be shipped. Salt spray test is divided into two kinds: neutral salt spray and acid salt spray. The difference lies in the different standards and test methods they meet. They are called "NSS" and "CASS" test respectively, which are the most common test methods in artificial climate protection.
Detailed configurations as follows:
1. Machine material:
(A) testing room using PVC polyvinyl chloride plate (from Taiwan), acid-resisting and alkali-resisting, cleaning easier.
(B) cover of testing room using acrylic panels (imported organic glass), the thickness is 5mm.
(C) reagents added bottles attached with water gauge, cleaning easy and not easy to break.
(D) saturated air barrels is made of SUS # 304 stainless steel.
(E) testing room to adopt indexing frame, can be arbitrarily adjust the angle, Surrounded by fog and placed more piece .
2. According to CNS JIS ASTM GB2423.19 specifications, can be set constant temperature to control
(A) Salt spray test: NSS, ACSS
1. testing room : 35 ℃ ± 1 ℃
2 saturated air barrels : 47 ℃ ± 1 ℃
(B) anti-corrosion test: CASS (copper acetate)
1.testing room: 50 ℃ ± 1 ℃
2 saturated air barrels: 63 ℃ ± 1 ℃
3. Aair supply system: air pressure 1Kg/cm2 Two-stage adjustments (coarse / fine-tuning).
(A) the first paragraph for the rough adjustment 2-2.5Kg/cm2, the second paragraph to fine-tune 1Kg/cm2.
(B) Testing configuration is switch connector designed for SO2.
4. Spray form:
(A) Using Bo Nute principle to draw brine and then saline spray, atomization uniform, non-blocking and crystallization, so that ensure continuous spraying.
(B) Nozzle: The nozzle is made of special glass, adjust spray volume and spray angle.
(C) spray volume: Adjustable 1 ~ 2ml (80cm2/hr) (average of 16-hour volume).
5. Heating devices:
By direct heating, warming up faster and reduction of standby time, when the temperature arrives automatically switch ON / OFF, make temperature accuracy, low power consumption (heating tube is made of titanium alloy).
Technical parameters:
| Model | GSA-M21 | GSA-M22 | GSA-M23 |
| Inside box size(cm) | 60x45x40 | 90x60x50 | 120x100x50 |
| Outside box size(cm) | 107x60x118 | 141x88x128 | 190x130x140 |
| Testing room temperature | Salt test (NSS ACSS)35℃±1℃/ Corrosion Test (CASS)50℃±1℃ | ||
| Pressure barrel temperature | Salt test (NSS ACSS)47℃±1℃/ Corrosion Test (CASS)63℃±1℃ | ||
| Brine temperature | 35℃±1℃ 50℃±1℃ | ||
| Testing room Capacity | 108L | 270L | 600L |
| Brine tank capacity | 15L | 25L | 40L |
| Salt concentration | The concentration of sodium chloride 5% or the 5% concentration of sodium chloride add 0.26g per liter of copper chloride (CuCl2 2H2O) | ||
| Air pressure | 1.00±0.01kgf/cm2 | ||
| Spray volume | 1.0~2.0ml/80cm2/h (working at least 16 hours, and then take the average) | ||
| Testing room relative humidity | 85% above | ||
| PH | 6.5~7.2 3.0~3.2 | ||
| Spray form | Programmable spray (Including continuous and intermittent spray) | ||
| Power | AC220V1Φ10A | AC220V1Φ15A | AC220V1Φ20 |
1.Are your company a trading one or a factory?
Factory + trade (integration), began to engage in the R & D and production of test instruments in 2011 and established the foreign trade department in 2013. OEM is also acceptable for us.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.
3.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4.How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.
5.How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
6.What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
