Product Details:
|
Warranty: | 1 Year | Place Of Origin: | Guangodng,China |
---|---|---|---|
Model Number: | GSA-X21 | Temperature Range: | -20°C-150°C |
Temperature Evenness: | <=1°C | Cooling Speed: | 0.7°C~1.2°C/min |
Power: | Electronic | Temperature Fluctuation: | ±0.5℃ |
High Light: | Thermal Test Chamber,Environmental Test Chamber |

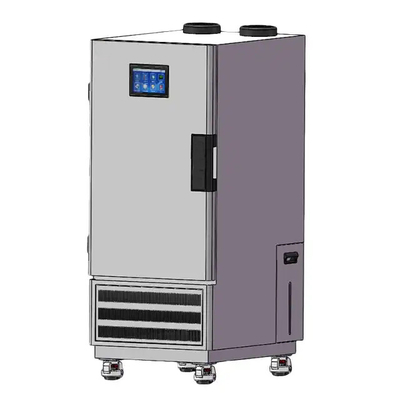

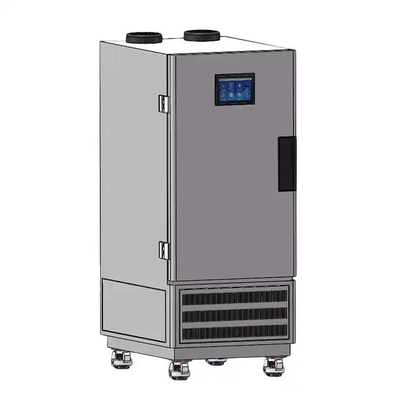

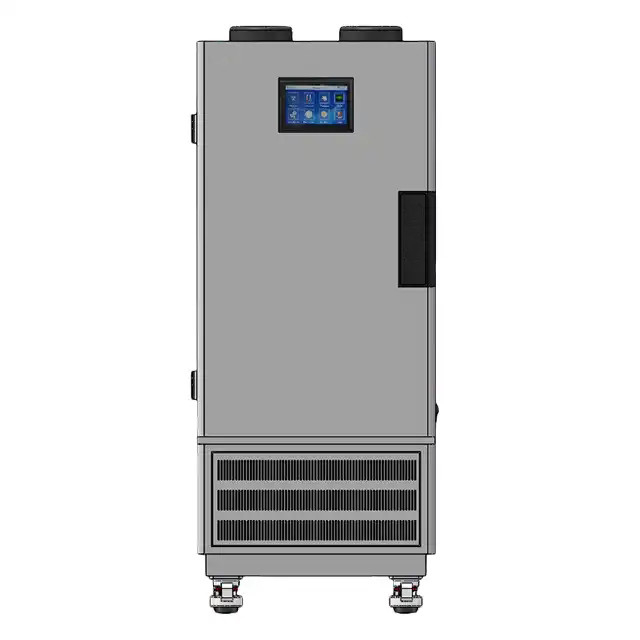

Temperature Range -20C-150C Stability Test Chamber For Factory Drug Testing
product presentation:
The drug stability test chamber is a professional equipment used for drug stability testing, which can be used for accelerated aging tests, long-term stability tests, ultraviolet light irradiation tests, damp heat tests, etc. of drugs. The drug stability test chamber mainly consists of a test space, a constant temperature and humidity system, a heating system, a refrigeration system, a temperature controller, a humidity controller, a temperature and humidity data recorder, etc. The drug stability test chamber can set different temperature, humidity, and lighting conditions according to the experimental needs to simulate different environmental conditions, evaluate and study the stability and changes of drugs.
Specification | GSA-X21 | GSA-X22 | GSA-X23 | GSA-X24 | GSA-X25 | |||||
Workroom Sizes W*D*H (cm) | 50x40x50 | 50x50x60 | 60x60x70 | 80x70x90 | 100x100x100 | |||||
Inner chamber volume(V) | 100L | 150L | 252L | 504L | 1000L | |||||
Outer dimension W*D*H(cm) | 98x95x160 | 98x105x170 | 108x112x180 | 128x125x200 | 148x155x210 | |||||
Packing Size | 113x110x175 | 113x120x185 | 123x127x195 | 133x140x215 | 163x160x225 | |||||
G.W(kg) | 360 | 390 | 450 | 480 | 620 | |||||
Temperature Range | A: -20°C-150°C B: -40°C-150°C C: -60°C-150°C D: -70°C-150°C | |||||||||
Temperature Fluctuation | ≤±0.5°C(standard)/≤±0.2°C(optional) | |||||||||
Temperature Evenness | ≤±2°C | |||||||||
Temperature Deviation | ≤1°C | |||||||||
Accuracy | 0.1°C,1.5%R.H (standard)/0.01℃,1.5%R.H(optional) | |||||||||
Humidity Range | 20%~98%R.H/ 10%~98%R.H(optional) | |||||||||
Humidity Deviation | ±2% R.H | |||||||||
Heating Speed | 1.0°C~3.0°C/min | |||||||||
Cooling Speed | 0.7°C~1.2°C/min | |||||||||
Heating time | RT°C~150°C≤30min | |||||||||
Cooling time | RT°C~-40°C≤60min | |||||||||
The machine noise | 72 dB(A) | |||||||||
Load on the largest |
100kg,≤20kg/ layer |
150kg,≤26kg/ layer |
260kg,≤30kg/ layer |
260kg,≤40kg/ layer |
300kg,≤60kg/ layer |
|||||
Power | ~3.25KW | ~3.55KW | ~3.95KW | ~5.5KW | ~6.25KW | |||||
material | Inner chamber:# SUS 304 stainless steel | The outer wall:A3 carbon steel plate with plastic spray/#SUS304 | ||||||||
Wind Cycling Way | Centrifugal fan forced air circulation | |||||||||
Refrigeration Way | Single stage compression refrigeration | |||||||||
Refrigerater | French Tecumseh | |||||||||
Refrigerants | R4O4A USA Dupont environmental protection refrigerant | |||||||||
Condensing Way | Air-cooled or water-cooled | |||||||||
Heater | Nickel chrome heating wire heater | |||||||||
Humidifier | Semi-closed steam and wet | |||||||||
Water Suplying Way | Automatic cycling water supply | |||||||||
Controller | Japan OYO/Korea Temi/HLS |
FAQ
Q 1: Are you manufacturer?
A: Yes, we are manufacturer with more than 10 years' experience.
Q 2: What are your Price Terms and depart port?
A : Trade term: FOB, CFR, or CIF, etc. Shipping port: Shanghai normally.
Q 3: What are your Payment Terms?
A: Payment shall be made by T/T, L/C, or D/P, etc., it varies considerably according to the region that you are in.
Q4: What's your Minimum Order Quantity?
A: Any order quantity is warmly welcomed.
Q 5: Do you have English Manual for each machinery?
A: Yes. The instruction manual,the test report and other Data Sheets related shall be provided by us.
Q 6: Can you customize the machine for me ?
A: Yes, we can customize according to customer's requirements.
Q 7: What shall we do if breakdown occurs?
A: Please informed us at once. We shall handle it by the on-line services to make one-one explanation or arrange the personnel to the site see as
the requirements.
Q8: Do you support overseas installtion and debugging?
A: Yes, normally we will despatch a profesional team with translater to the field to complete the whole project.
