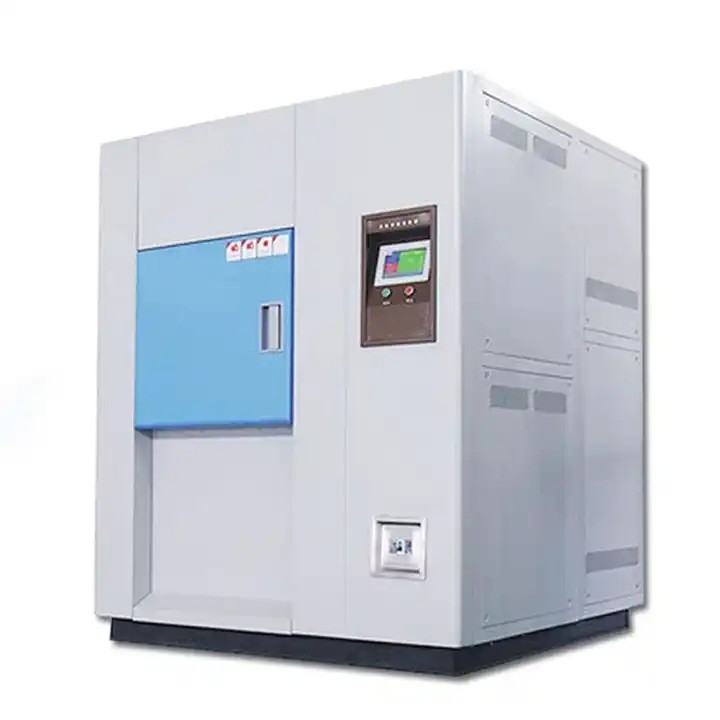

2200W stainless steel thermal vacuum chamber used for testing solar cells

2200W stainless steel thermal vacuum chamber used for testing solar cells
2200W stainless steel thermal vacuum chamber used for testing solar cells 2200W stainless steel thermal vacuum chamber used for testing solar cells 2200W stainless steel thermal vacuum chamber used for testing solar cells 2200W stainless steel thermal vacuum chamber used for testing solar cells

Large Image :  2200W stainless steel thermal vacuum chamber used for testing solar cells

Product Details:
Place of Origin: Guangdong,China
Brand Name: GSKA
Certification: CE SGS ROHS UL
Model Number: GSA-N12
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiate
Packaging Details: The outer packing is first packed with foam plastic, and then reinforced with strong wooden cases.
Delivery Time: 15-30working days after received deposit
Payment Terms: L/C, T/T
Supply Ability: 160 Set / Sets per Month

2200W stainless steel thermal vacuum chamber used for testing solar cells

Description
Type: Drying Oven Power: 2,200W
Heating Up Time: RT~200°C About 35min Warranty Of Core Components: 1 Year
Temp. Range: -65°C~150°C Temp Recover Time/change Time: ≤5min / ≤10sec
External Size W*H*D(cm): 150*190*160 Chamber Material: Stainless Steel
High Light:

Thermal Test Chamber

,

Environmental Test Chamber

2200W stainless steel thermal vacuum chamber used for testing solar cells



product presentation:



High temperature thermal vacuum chamber is a kind of equipment which can handle, test and experiment materials in high temperature and vacuum environment. It usually consists of a high temperature furnace and a vacuum system. In the high temperature thermal vacuum chamber, it can be used for high temperature treatment, sintering, annealing, melting and other material treatment, as well as material property testing, chemical reaction research and other experiments.



In the high temperature thermal vacuum chamber, resistance heating is generally used to heat the object to the required temperature through the heating wire. At the same time, the gas inside the furnace is removed by vacuum pump to form a higher vacuum degree, so as to ensure the stability and reliability of the experimental environment. High temperature thermal vacuum chamber is widely used in material science, chemistry, physics, electronics, energy and other fields.



Model GSA-N12 GSA-N13 GSA-N14 GSA-N15 GSA-N16
Inner size WxHxD(cm) 36×40×35 40×50×40 50×60×50 60×75×50 80×85×60
External size WxHxD(cm) 138x180x155 150X190X160 190x200X195 210x220X205 225x250x220
Shock Temperature ragne -65°C~150°C
Heating up time RT~200°C about 35min
Cooling down time RT~-70°C about 90min
Temp recover time/change time ≤5min / ≤10sec

Temp control accuracy/

distribution accuracy

±0.5°C / ±2.0°C
Inner materials

SUS 304# stainless steel plate for inner chamber,and stainless steel plate

+ spray painting for external chamber.

Insulation materials High-temperature high-density amino acid ethyl ester foam insulator material.
Systems P.I.D+S.S.R+Microcomputer balanced temperature control system.
Cooling systems

Semi-hermetic two-stage compressor (water-cooled) /

hermetic two-stage compressor (air-cooled).

Safety devices

Fuse switch, high and low pressure protection switch compressors,

refrigerant pressure protection switch failure warning system, electronic siren.

Fitting

Outlook window (special purchase), the upper and lower adjustable

compartment two energized measured line hole, casters,level bracket.

Power 3 phase AC108V-380V 50HZ/60HZ
Controller Taiwan TATO or TH900C

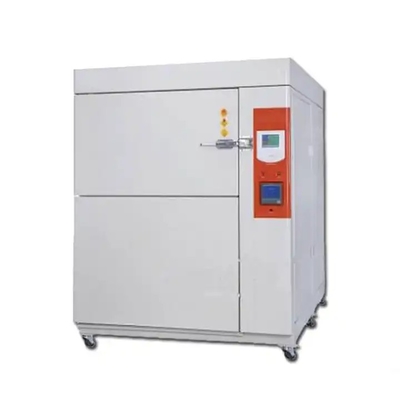

2200W stainless steel thermal vacuum chamber used for testing solar cells 0

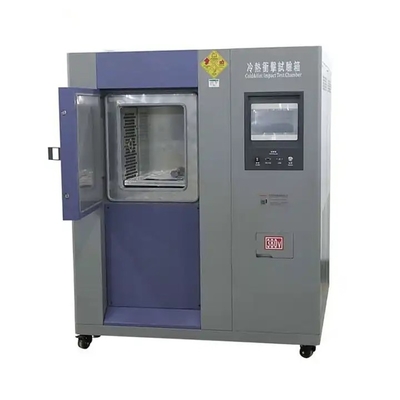

2200W stainless steel thermal vacuum chamber used for testing solar cells 1

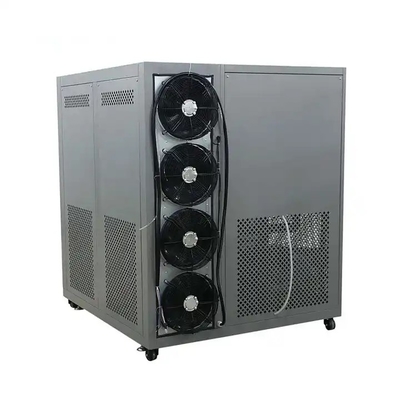

2200W stainless steel thermal vacuum chamber used for testing solar cells 2


FAQ


1. Do you offer after-sales service? How can I ask for that? And how about the warranty?



Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while



considering of sea transportation, we can extend 2 months for our customers. If your machine doesn’t work, you can send E-mail to us and we will



try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or



provide on-site repair.



2. What’s the delivery term?



At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are



in urgent need, we can consider making a special arrangement for you.



3. Do you accept customization service? Can I have my logo on the machine?



Yes, of course. We can not only offer standard machines, but also customized machines according to your



requirements. And we can also put your logo on the machine.


4. How to install and use the product?

We will send you operating instructions, English video by Email. Or you can download on our officail website directly. Most of our machine is

shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible,

we can also install your machine at site.
