Product Details:
|
| Warranty: | 1 Year | Place Of Origin: | Guangodng，China |
|---|---|---|---|
| Product Name: | GSA-H147 | Temperature Control Range: | -70~180℃ |
| Temperature Cooling Rate: | 1.0~2.0℃/min | Pressure Range: | Normal Pressure ~0.5kpa(500pa) |
| Testing Room Volume: | 250L | Temperature Fluctuation: | ±0.5℃ |
| High Light: | Temperature Test Chamber,Climate Test Chamber |
||

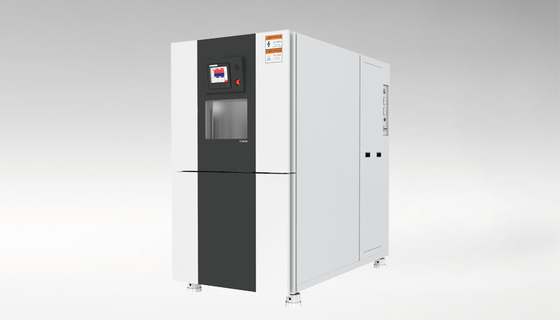

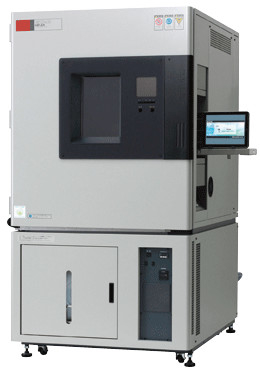

Tenney Altitude Test Chamber Can Be Controlled Remotely For Battery Testing
product presentation:
The altitude test chamber (temperature/altitude) is designed to allow users to perform temperature and altitude condition tests in a combined test chamber, and create multiple conditions to meet multiple test requirements at the same time.
For the test application of satellites, rockets, airplanes or helicopters: modern airplanes are subject to great pressure during use. We provide prefabricated and customized low-pressure test chambers for ultra-low cooling and extended temperature range to meet your exact test requirements
Features.
Altitude Test Chamber combine temperature and low pressure environments for simultaneous environmental testing. The Altitude Test Chamber allows the user to control the test chamber temperature while subjecting the product under test to various altitudes up to 100,000 feet, with the option to extend the altitude range to 150,000 feet. Lithium-ion batteries are defined as hazardous substances in the United Nations Restrictions on Hazardous Substances and must comply with these shipping restrictions.They must pass the United Nations Manual of Tests and Standards, which includes low pressure (high altitude), thermal cycling, vibration and shock standards.
|
|
Model
|
GSA-H147
|
|
|
Temperature
|
Temperature control range
|
-70℃~180℃
|
|
|
Temperature fluctuation
|
±0.5℃
|
||
|
Temperature cooling rate
|
1.0~2.0℃/min
|
||
|
Temperature heating rate
|
2.0~3.0℃/min
|
||
|
Pressure
|
Pressure range
|
Normal pressure~0.5kpa(500pa)
|
|
|
Pressure recovery time
|
<10kpa/min
|
||
|
Humidity
|
Humidity control range
|
20.0~98.0%RH
|
|
|
Humidity fluctuation
|
±2.0%RH
|
||
|
Humidity uniformity
|
±5.0%RH
|
||
|
|
Internal dimensions W×H×D mm
|
800*800*800
|
|
|
|
Dimensions W×H×D mm
|
900*1950*1495
|
|
|
|
Testing volume
|
250L
|
|
|
|
Power supply
|
AC 380V,50/60HZ
|
|
|
|
Operation cabinet Temperature
|
+5~35℃
|
|
|
|
Internal material
|
Adopted 2mm thick stainless steel plate(SUS304)
|
|
|
|
External material
|
Adopted 10mm thick cold rolled steel plate fully welded
|
|
|
|
Compressor
|
France Tecumseh, Germany Bock, Germany Bitzer
|
|
|
|
Noise level
|
68dB
|
|
|
|
*1 Performance values based on IEC60068-3-5:2001 and IEC60068-3-6:2001； Performance data is given at +23°C ambient temperature,65±20%rh relative humidity, rated voltage and no samples in the test area. *2 Minimum temperature attainable at ambient temperature +5 to +30°C. *3 When the temperature inside the chamber is +20℃.
|
||
