Product Details:
|
Warranty: | 1 Year | Place Of Origin: | Guangodng,China |
---|---|---|---|
Inner Size W X H X D(cm): | 1200*1200*1200 | Heating Rate/min: | 4 Degree |
Temperature Distribution Precision: | ±2.0℃ | Temperature Range: | -70℃~+150℃ |
Temperature Fluctuation: | ±0.5℃ | Power Supply: | AC220V 50/60Hz |
High Light: | Thermal Test Chamber,Environmental Test Chamber |

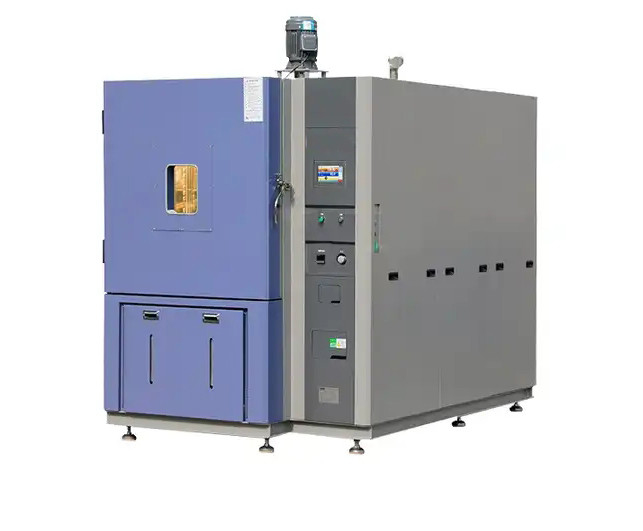

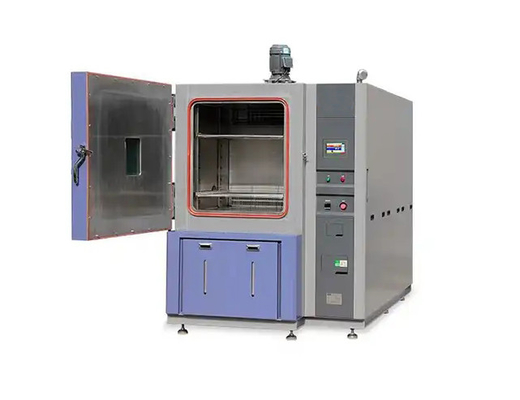

High Altitude Environment Test Chamber With Automatic Temperature Control
product presentation:
Product features of altitude test chamber:
1. The Balanced Temperature Control System (BTHC) controls the SSR in a P.I.D. manner to maintain a certain pressure in the studio, and uses an intelligent digital temperature regulator for temperature display and control settings, ensuring long-term stable use
2. Brand new * * styling design, high quality appearance, and systematic design and manufacture of essence of advanced technology from Japan and West Germany
3. Adopting full wool fine tubes and automatic load capacity adjustment system technology, it is more stable and reliable than the expansion logging system, allowing for free conversion, setting, and display of high and low temperatures. The temperature rise and fall speed is fast, stable, and uniform, saving valuable time for users
Equipment features: Altitude test box series
The FA series altitude test box is suitable for conducting temperature, humidity, and altitude comprehensive tests on materials, electrical and electronic products, * * and other products and components.
It is also suitable for product quality testing and reliability testing, and can also be used for other processing and testing processes related to high, low temperature (humidity), and low air pressure.
Equipment characteristics
Adopting a bipolar rotary vane vacuum pump with high ultimate vacuum degree, ensuring efficient and stable operation of the equipment throughout the entire working range;
High strength and high reliability structural design - ensuring the high reliability of the equipment;
The studio material is SUS304 stainless steel - with strong corrosion resistance, cold and hot fatigue function, and long service life;
High density polyurethane foam insulation material - ensures minimal heat loss;
Surface spraying treatment - ensuring the long-lasting anti-corrosion function and appearance life of the equipment;
High strength and temperature resistant silicone rubber sealing strip - ensures high sealing of equipment doors;
Multiple optional functions (such as test holes, recorders, water purification systems, etc.) ensure that users have multiple functions and testing needs;
Large area electric heating frost prevention observation window and built-in lighting - can provide good observation effect;
Environmentally friendly refrigerants - ensuring that the equipment better meets your environmental protection requirements;
|
Model
|
GSA-98L
|
|
Temperature
|
Temperature control range
|
-70℃~150℃
|
|
Temperature fluctuation
|
±0.5℃
|
||
Temperature cooling rate
|
1.0~2.0℃/min
|
||
Temperature heating rate
|
2.0~3.0℃/min
|
||
Pressure
|
Pressure range
|
Normal pressure~0.5kpa(500pa)
|
|
Pressure recovery time
|
<10kpa/min
|
||
Humidity
|
Humidity control range
|
20.0~98.0%RH
|
|
Humidity fluctuation
|
±2.0%RH
|
||
Humidity uniformity
|
±5.0%RH
|
||
|
Internal dimensions W×H×D mm
|
1200*1200*1200
|
|
|
Dimensions W×H×D mm
|
1300*2085*1800
|
|
|
Testing volume
|
1000L
|
|
|
Power supply
|
AC 380V,50/60HZ
|
|
|
Operation cabinet Temperature
|
+5~35℃
|
|
|
Internal material
|
Adopted 2mm thick stainless steel plate(SUS304)
|
|
|
External material
|
Adopted 10mm thick cold rolled steel plate fully welded
|
|
|
Compressor
|
France Tecumseh, Germany Bock, Germany Bitzer
|
|
|
Noise level
|
68dB
|
|
|
*1 Performance values based on IEC60068-3-5:2001 and IEC60068-3-6:2001; Performance data is given at +23°C ambient temperature,65±20%rh relative humidity, rated voltage and no samples in the test area. *2 Minimum temperature attainable at ambient temperature +5 to +30°C. *3 When the temperature inside the chamber is +20℃.
|
