Product Details:
|
| Cooling Rate: | 1~1.5℃/min (no Load) | Temperature Fluctuation: | ±1.0℃ |
|---|---|---|---|
| Power: | 220V , 50Hz | Controller Resolution: | ±0.3℃；±2.5%RH |
| Cooling Type: | Water Cold | Temperature Uniformity: | ±2.0℃ |
| Condenser: | Water-cooled Condensing Agent | Keyword: | Temperature Humidity Chamber |
| High Light: | Environmental Humidity Chamber,Humidity Test Chamber |
||

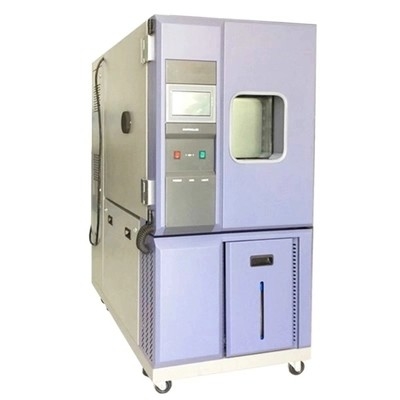

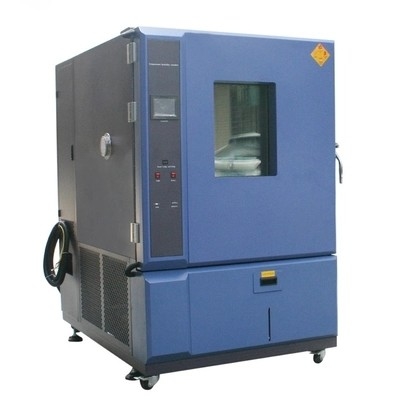

Stainless Steel 316L Temperature Humidity Chamber Test AC 240V Antiwear
Overview:
High low temperature test chamber is mainly for the adaptability test of automobile, marine electrical, electronic products, raw devices, and other materials when stored, transported and used in low temperature environment.
According to the national standards or user requirements, under low temperature conditions, conduct environmental simulation tests on the physical and other related characteristics of the product, to judge whether the performance of the product meets the predetermined requirements, so that it can be used for product design, improvement, identification and factory inspection.
Control:
English LCD display LCD touch-panel, the screen on the input data, and programmable temperature and humidity, backlight adjustable 17, curve, curve of setting/display value. Can display a variety of alerts, failure occurs through the screen display, eliminating failures, eliminate misuse. Multi-PID control functions, sophisticated monitoring functions, and the data displayed on the screen.
| Material | Outer chamber material and size | High quality yarn surface drawn stainless steel 950(W)*870(D)*1400(H)mm | |||
| Inter chamber material and size | Imported SUS304 stainless steel 400(W)*400(D)*500(H)mm ; Volume: 50L | ||||
| Thermal insulation material | High quality polyurethane foam 100mm | ||||
| Heating system | Heater | Stainless steel 316L fin heat pipe electric heater | |||
| Control mode: PID control mode, using non-contact periodic pulse width adjustment SSR (solid state relay) | |||||
| Controller | Essential information | TEMI-850 True color touch programmable temperature and humidity controller | |||
| The program controls 12 groups of 120 segments (the number of segments can be arbitrarily adjusted and assigned to each group) | |||||
| USB communication interface (optional) | |||||
| Operation mode | Setting/program | ||||
| Setting method | Manual input / remote input | ||||
| Set range | Temperature:-60℃~+150℃ | ||||
| Humidity:20%~100% | |||||
| Time::0~9999 Hour/Minutes/Seconds | |||||
| Resolution | Temperature:0.1℃ | ||||
| Humidity:0.01% | |||||
| Time:0.1S | |||||
| Input | PT100 platinum resistor | ||||
| Accessory function | Alarm display function (prompt for the cause of the fault) | ||||
| Upper and lower limit temperature alarm function, | |||||
| Timing function, self-diagnosis function | |||||
| Measurement data acquisition | PT100 platinum resistor | ||||
| Component configuration | Cooling System | Compressor | French original "Tecumseh" fully enclosed compressor unit | ||
| Air circulation system | Stainless steel fan achieves forced circulation of air | ||||
| Sino foreign joint venture "Heng Yi" differential motor | |||||
| Multi wing wind wheel | |||||
| Air supply system is single cycle | |||||
| Windows floodlight | Philips | ||||
| Other configuration | Stainless steel movable sample holder 1 layer | ||||
| Test cable outlet Φ50mm hole*1 | |||||
| Hollow conductive electric defrosting function glass observation window and illumination lamp | |||||
| Bottom angle universal moving wheel | |||||
| Security system | Leakage Protection | ||||
| Over temperature alarm protector | |||||
| Fast fuse | |||||
| Compressor high and low voltage protection, overheating, overcurrent protection | |||||
| Line fuses and fully sheathed terminals | |||||
| Production standards | GB/2423.1 ;GB/2423.2;GB/2423.3,GB/2423.4 | ||||
| Service | Free one year warranty for equipment and lifetime service and technical service | ||||
| Conditions of Use | Power supply |
AC240V Voltage allowable fluctuation range:AC240V ±10% Frequency allowable fluctuation range:50Hz ±0.5 Hz Protective earthing wire grounding resistance is less than 4Ω; TN-S mode power supply or TT mode power supply |
|||
| Use environment | Temperature:5℃~35℃,Relative humidity:≤85%RH | ||||
| Site |
The floor is flat, well ventilated, free of flammable, explosive, corrosive gases and dust No strong electromagnetic radiation source nearby Appropriate maintenance space around the equipment |
||||
Application :
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
