Product Details:
|
| Power Supply: | 380V 50HZ | Wave Length Of Test Light Source: | 280~400nm |
|---|---|---|---|
| Air Pressure: | 86~ 106Kpa | Material: | Stainless Steel |
| Humidity Range: | ≥75%RH | Power: | Electronic |
| Brand: | GSKA | Authentication Certificate: | CE |
| High Light: | UV Testing Equipment,Accelerated UV Testing Equipment |
||

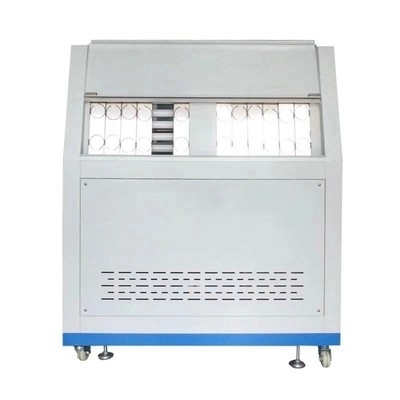

Stainless Steel Electric Heating Tube Uv Testing Machine 380V 40W
Product function and principle:
The test chamber uses fluorescent ultraviolet lamp as the light source, through the simulation of natural sunlight in the ultraviolet radiation and condensation, to accelerate the weatherability test of the material, in order to obtain the results of weatherability of the material. Can simulate the natural climate of ultraviolet, rain, high temperature, high humidity, condensation, dark and other environmental conditions, by reproducing these conditions, combined into a cycle, and let it automatically complete the cycle times.
UV weather stability test chamber is the most widely used UV Weathering tester in the world,there are thousands of ultraviolet aging testers coming into use. It has become the standard of the UV test, fit standards of ISO,ASTM,DIN,JIS,SAE,BS,ANSI,GM,U.S.GOVT,ect. It can simulate the damage of sunshine, rain, dew to the material quickly and exactly. Damage types including bleaching, discoloration, loss of light, powder, crack, turbidity, bubble-based, embrittlement, strength decline and oxidation need to be engenderd in months or years but can engender in a few days or weeks.
Features:
After directly exposed to the sun in the shipping container, some materials, like rubber & shoes, may fade, discolor, and age. And UV aging test machine can simulate the circumstances of sunshine radiation in containers to test the resistance to discoloration of materials.
1.The UV weather stability test chamberis designed according to uses’ operation , it’s easy to operate, safe and reliable.
2.The thickness of specimen installation is adjustable and the specimen installation is fast and convenient.
3.The door rotating up does not interfere with the operation and the tester takes a very small space only.
4. UV weather stability test chamber is unique condensating system can be contented by tap water.
5.The heater is under the container rather than in the water, which is long life, easy to mainten.
6.The water level controller is outside the box, easy to monitor.
7. UV weather stability test chamber has truckles, convenient to move.
8.Computer programming is convenient, automaticly alarming when incorrect operated or faulted.
9. UV weather stability test chamberhas irradiance calibrator to extend the life of the lamp tube(more than 1600h).
10. UV weather stability test chamber has Chinese and English instruction book, convenient to consult.
11. UV weather stability test chamber Divided into three types: common, light irradiance controlling, spraying.
| Rubber Programmable Accelerated Weathering UV Aging Test Chamber Technical Parameters | ||
| Model | GSKA-UV-280 | |
| Internal Dimension W*H*D (cm) |
115*50*40 | |
| External Dimension W*H*D (cm) |
150*150*55 | |
| Applicable Standard | GB/T16422,GB/T5170.9 | |
| Temperature Range | R.T.+10degree C~+70degree C | |
| Temperature Fluctuation | ±0.5degree C | |
| Humidity Range | ≥95%R.H. | |
| Environmental Temperature for Use |
+5degree C~+35degree C | |
| Test Light Source | UVA,UVB UV light | |
| Wave Length of Test light Source (nm) |
280~400 | |
| Center Distance between Sample and Tube (mm) |
50±2 | |
| Center Distance Between Tubes (mm) |
75±2 | |
| Material of Internal Case | Stainless steel with sanding polish | |
| Material of External Case | Stainless steel with sanding polish or painting coated | |
| Heating and Humidifier | Electric-heat type steam generator ,heating and humidification | |
| Safety System | Operation Interface | Digital smarts touch key input (Programmable) |
| Running Mode | Program/constant running type | |
| Input | Black panel thermometer.PT-100 Sensor | |
| Standard Configuration | 1 pc Stainless steel shelves | |
| Safety Configuration | Protection of electric leakage, power outage when over-load, over-temperature protection, water short storage, ground lead protection | |
| Power | AC220V 1phase 3 lines, 50HZ | |
Package: Standard export wooden case, plywood case or according to customer's requirement.
If you need more info about this UV Weather Simulated Plastic Accelerated Aging Test Machine / Plastic Aging Chamber , please contact with us,thank you
