Product Details:
|
| Brand Name: | GSKA | Place Of Origin: | Guangdong,China |
|---|---|---|---|
| Warranty: | 1 Year | Internal Material: | SUS#304 Stainless Steel, Thickness 3mm |
| Certification: | CE SGS ROHS UL | Pressure Range: | 0.5~100Kpa, Common Test Air Pressure Is 11.6 Kpa |
| Power: | Electronic | Dimensions: | 650x620x1310mm |
| High Light: | Thermal Test Chamber,Environmental Test Chamber |
||

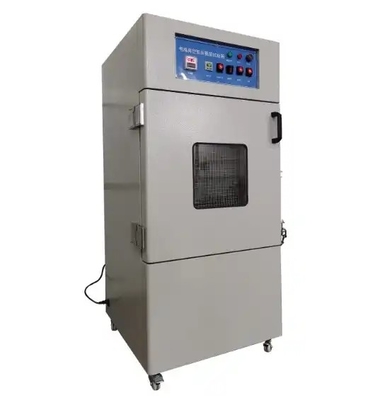

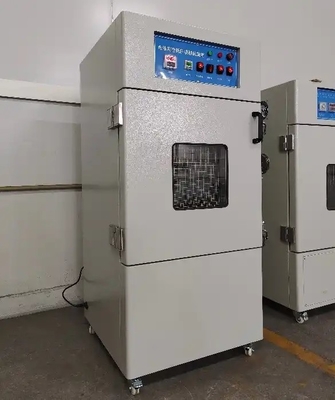

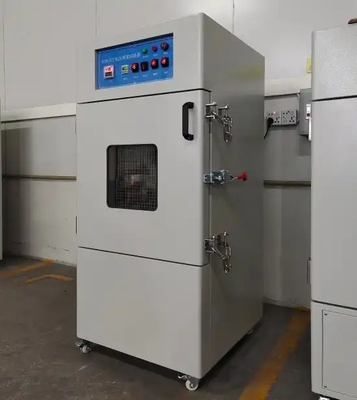

0.5 To 100Kpa High And Low Altitude Test Chamber For Aviation Chemical Industry
product presentation:
This Altitude Test Chamber for conducting high and low temperature, altitude (not higher than 30000 meters or 45000 meters above sea level), high and low temperature cycling tests, and temperature height comprehensive tests on products (whole machine), components, and materials. During high and low temperature tests, this test box can be used for testing heat dissipation test samples and non heat dissipation test samples. For the test of heat dissipation test samples, the heat dissipation power should not exceed the cooling capacity of the test chamber, as the cooling capacity is a dynamic value that varies with temperature points.
Altitude test box, national defense industry, space industry automation components, auto parts, electronic and electrical components, plastics, chemical industry, food industry, pharmaceutical industry and related products can simulate the high altitude, high altitude, (high original area) climate for storage, operation and transportation reliability tests under the single or simultaneous action of high, low temperature and low pressure, and can simultaneously test the electrical performance parameters of the test pieces.
|
1. Internal material
|
SUS#304 stainless steel, thickness 3mm;
|
|
2. External material
|
A3 cold plate paint treatment, thickness 1.5mm;
|
|
3. Pressure range
|
0.5~100Kpa, common test air pressure is 11.6 Kpa;
|
|
4. Material of storage partition
|
stainless steel;
|
|
5. The number of storage partitions
|
1;
|
|
6. Control mode
|
push-button control;
|
|
5. Vacuum degree display
|
SMC digital display vacuum meter control, accurate display of vacuum degree, easy to set vacuum degree;
|
|
6. Timer
|
LED digital display, can be set within 0-99H99M;
|
|
7. Inner box size
|
400x400x400mm (width x depth x height);
|
|
8. Dimensions
|
650x620x1310mm (width x depth x height, including door lock);
|
|
9. Observation window
|
Two-layer tempered glass with a size of 250x250mm, equipped with stainless steel mesh;
|
|
10. Pressure fluctuation
|
≤5%;
|
|
11. Equipment power supply
|
AC220V, 50HZ, 2.2KW;
|
