Product Details:
|
Applicable Industries: | Brazing Industry | Core Components: | PLC, Pressure Vessel, Pump |
---|---|---|---|
Valid Zone: | 9000x1550x1830 | Heating Power (kw): | 2000 |
Certification: | Ce | Ultimate Vacuum (Pa): | 6x10-4 |
Voltage: | 380V 50HZ | Usage: | 5 T |
Size: | Customization | ||
Highlight: | Vacuum Brazing Furnace,Box Type Furnace |

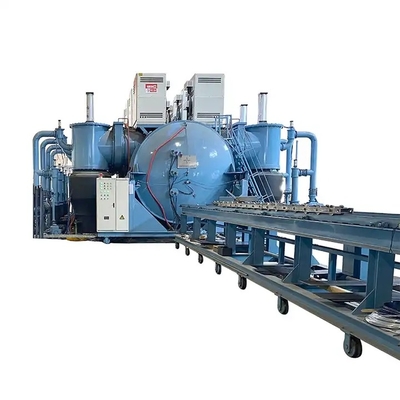

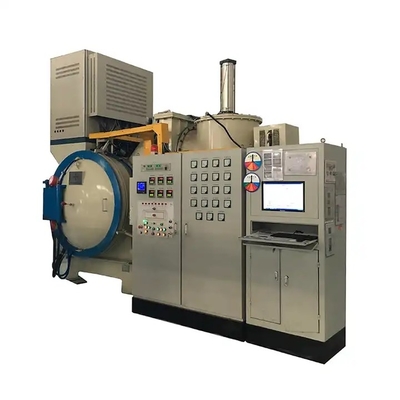

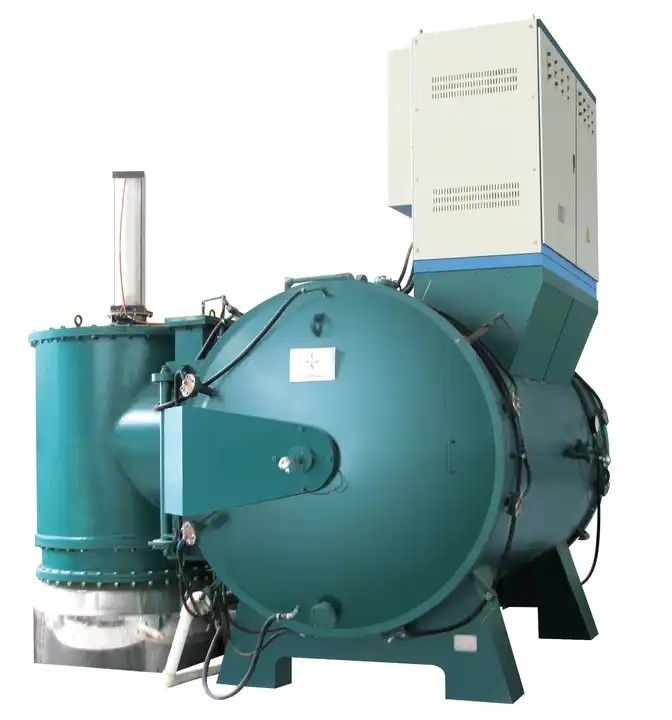

Silver/Copper/Nickel Base Vacuum Brazing Furnace (Molybdenum Foil Furnace)
Scope of application:
used for vacuum brazing of air inter cooler oil coolers, radiators, air-conditioning evaporators, condensers or tube-type heat exchangers of automobile environmental protection products.
Vacuum Aluminum Brazing Furnace
|
|
||||
Model
|
Valid zone
|
Maximum temperature (℃)
|
Heating power (kw)
|
Ultimate vacuum (Pa)
|
Gas cooling pressure (bar)
|
GB50
|
600x400x400
|
800
|
50
|
6x10-4
|
Negative pressure
|
GB90
|
700x500x500
|
800
|
90
|
6x10-4
|
Negative pressure
|
GB120
|
1200x600x600
|
800
|
120
|
6x10-4
|
Negative pressure
|
GB300
|
2100x900x900
|
800
|
300
|
6x10-4
|
Negative pressure
|
GB310
|
2100x900x1000
|
800
|
310
|
6x10-4
|
Negative pressure
|
GB300
|
2600x800x800
|
800
|
300
|
6x10-4
|
Negative pressure
|
GB450
|
2100x1200x900
|
800
|
450
|
6x10-4
|
Negative pressure
|
GB460
|
2100x1100x1300
|
800
|
460
|
6x10-4
|
Negative pressure
|
GB600
|
4000x1000x1050
|
800
|
600
|
6x10-4
|
Negative pressure
|
GB750
|
6100x1200x1200
|
800
|
750
|
6x10-4
|
Negative pressure
|
GB1000
|
6000x1300x1300
|
800
|
1000
|
6x10-4
|
Negative pressure
|
GB2000
|
9000x1550x1830
|
800
|
2000
|
6x10-4
|
Negative pressure
|
The heating chamber of vacuum aluminum brazing furnace adopts Ni-Cr belt heating and multi-layer 1Cr18Ni9Ti reflective screen
The vacuum system is a three-stage high vacuum system composed of diffusion pump, Roots pump and mechanical backing pump; Aluminum brazing furnaces are all negative pressure furnaces, and external circulation air cooling system can also be installed according to customer requirements;
The size of valid zone can be customized according to customer requirements;
Computer control system
|
|||||
Product description: used for vacuum brazing of air inter cooler, oil coolers, radiators, air-conditioning evaporators,
condensers, radar network antennas, waveguide tubes and various plate-fin or tube-type heat exchangers of automobile environmental protection products. It can also be used for vacuum brazing of aluminum water-cooled plates and air-cooled boxes of electric components in industries such as high-speed rail and new energy vehicles, and brazing of separation products. |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
