Product Details:
|
| Warranty: | 1 Year | Customized Support: | OEM |
|---|---|---|---|
| Place Of Origin: | Donggaun,china | Power: | 3kw |
| Temperature Optional: | 1200℃-1700℃ | Voltage: | 208V ~240V |
| Working Temperature: | GSA548 | Brand: | GSKA |
| High Light: | 3kw Atmosphere Muffle Furnace,1700C Atmosphere Muffle Furnace,OEM Vacuum Atmosphere Furnace |
||

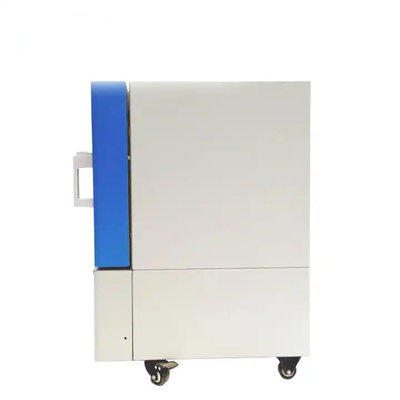

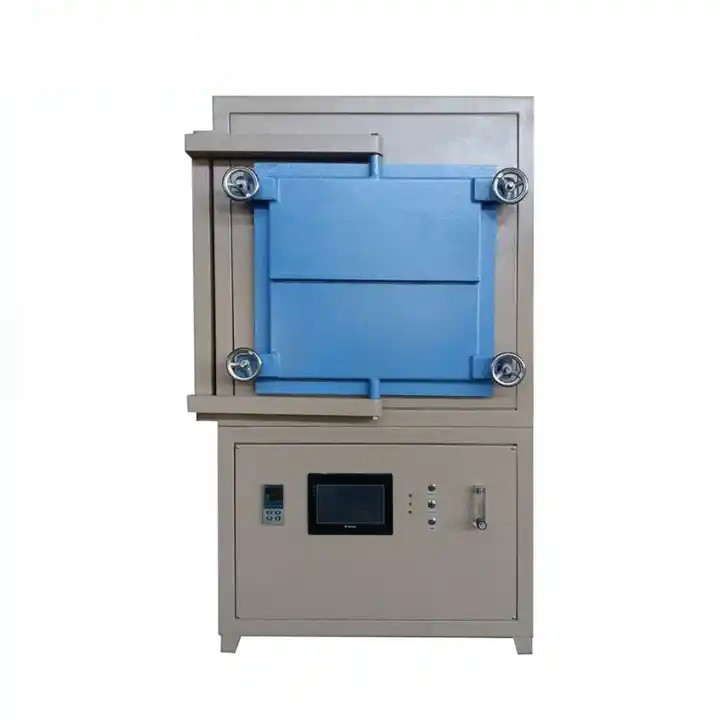

1700C High Temperature Box Atmosphere Muffle Furnace/Vacuum Atmosphere Furnace
description
Product Advantages
1.Adopt advanced AI artificial intelligence adjustment algorithm, no overshoot, with self-tuning function, can realize any slope rise and drop temperature control, with jump (cycle), run, pause, stop and other programmable/operable commands.
2.The input and output adopt digital correction system, the measurement is accurate and stable, and it can be extended to use non-linear sensors with any index number.
3.The second-order digital filtering function and watchdog circuit can maintain accurate measurement and stable work even in a strong interference environment.
4.Measurement accuracy: 0.2 level
5.Alarm function: upper limit, input open circuit.
6. 30/50 segment program control function.
7.Power-down protection: Due to the EPROM chip, various input data can be reliably saved even when the meter is powered off or interfered.
8.Power supply: 100 ~ 240VAC 50 ~ 60Hz
9.Power consumption: ≤ 5W
| Chamber size | 300x300x300mm (Width * Height * Depth) (8 Liter) | |||
| Max. temperature | 1200 C (<2hour) | 1400 C (<2hour) | 1700 C (<2hour) | |
| Working temperature | 1100 C | 1300 C | 1600 C | |
| Temperature controlling | PID automatic control via SCR (Silicon Controlled Rectifier) power control with phase angle fired, current limiting resistor. | |||
| 51 programmable segments for precise control of heating rate, cooling rate and dwell time. | ||||
| Built in PID Auto-Tune function with overheating & broken thermocouple broken protection. | ||||
| Over temperature protection and alarm allows for operation without attendant. | ||||
| Temperature accuracy | ±1C | |||
| Temperature Uniformity | ±5C over 120mm | |||
| ±3C over 80mm | ||||
| Heating rate | 0-20C /min | |||
| Vacuum | 1Pa | |||
| Atmosphere | Inert gas like nitrogen and argon | |||
| Thermocouple | K type | S type | B type | |
| Heating element | Heating wire | SiC heating element | MoSi2 Heating element | |
| Furnace Chamber | 2 layers of ceramic fiber insulation | 3 layers of ceramic fiber insulation | 3 layers of ceramic fiber insulation | |
| 1st: 1430°C ceramic fiber board | 1st: 1700°C ceramic fiber board | 1st : 1800°C ceramic fiber board | ||
| 2nd: 1260°C ceramic fiber board | 2nd:1430°C ceramic fiber board | 2nd: 1600°C ceramic fiber board | ||
| 3rd: 1260°C ceramic fiber board | 3rd: 1260°C ceramic fiber board | |||
FAQ:
Q:Are you a factory?
A:Yes,We are China leading vacuum furnace manufacturer ,It was form -erly known as China National Vacuum Research Institute. Our factory is covering an area of over 10,000sq.m.We have powerful R&D team and manufacturing facility.
Q:Do you have customization or OEM service ?
A:We can provide the regular and standard model sizes,at the same time, we can customize furnaces as product ,work piece size, and temperature requirement .Meanwhile, we offer OEM service under the strict industrial standard.
Q:What kind of quality standard dose your furnace follow?
A:Firstly, we are ISO9001:2008 and CE certified factory,All the processes are strictly following the standard of the metallurgy process. In the facto -ry, we have about 10employees that work in the quality assurance department.
Q:Can you serve customer oversea like installation and debugging?
A:Yes,we can dispatch our engineer to your city for installation and debugging or other service. Meanwhile,we will offer relevant docum -ents: The plan of equipment, Foundation condition graph, The layout of equipment, Electric control system schematic diagram, Main accessorie operating instr-uctions & qualification and on.
