Product Details:
|
| Warranty: | 1 Year | Place Of Origin: | Donggaun,china |
|---|---|---|---|
| Voltage: | 380V | Weight (T): | 23 T |
| Temperature Uniformity: | ±5 C | Material: | Aluminum And Heat Resistant Alloy |
| Vacuum System: | Leybold, EVP, Edwards, Kinney | Power (kW): | 75 To 480 (varied By Model) |
| High Light: | Vacuum Atmosphere Furnace,Vacuum Sintering Furnace |
||

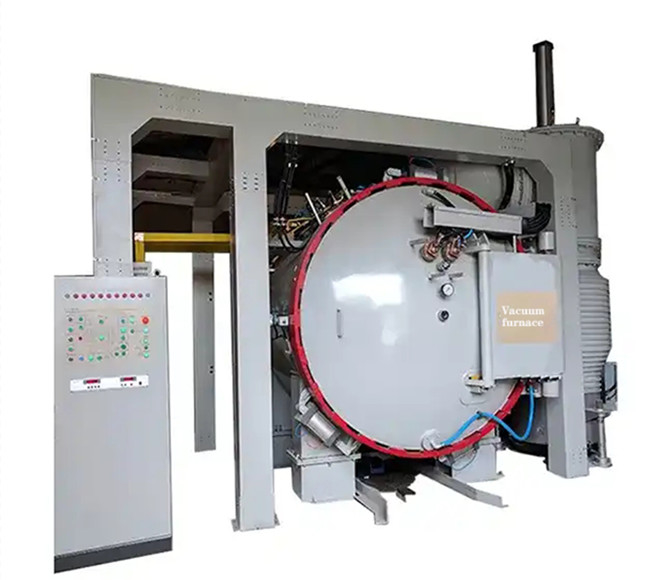

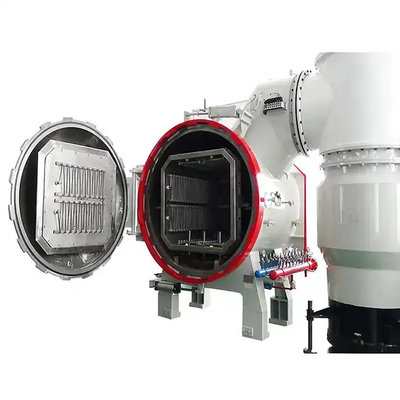

High Temperature Vacuum Furnace For Factory Brazing Parts
product presentation with vacuum furnace:
The GSA series vacuum furnace is a process of melting solder whose melting point is lower than the base material, filling the joint gap through capillary action, and obtaining non-detachable joint. In recent years, with the continuous development of science and technology, brazing technology occupies an increasingly important position in various industrial sectors, especially in the electrical instrument and national defense industry, has become an irreplaceable process method. For example, large oxygen generators, heat exchangers of complex shapes used in automobiles and ships (oil coolers, evaporators, radiators, etc.), honeycomb structures of complex shapes used in jet engines, electrical parts, precision mechanical parts, etc., must be brazed. In recent years, brazing technology has developed rapidly. Brazing technology has been developed from the initial application of aircraft, nuclear energy and other defense industries to common metals and utility components. This product is composed of furnace body, heating element, vacuum system, thermocouple, PLC and other components. Control system adopts Siemens and other developed countries products, furnace body, heating components, vacuum system can be customized according to requirements.
| Name | Parameter |
| High temperature vacuum soldering furnace | Brazing usage / soldering usage |
| Model | Horizontal / Vertical |
| Ultimate vacuum | Custom made |
| Pressure rising rate | 0.5pa/h |
| Max temperature | Custom made |
| Temperature uniformity | ±3℃ / ±5℃ |
| Heating power | Custom made |
| Temperature control method | Intelligent programmable temp controller |
| Control method | PLC auto/manual interlock protection |
| Max gas charging pressure (absolute pressure) | Custom made |
| Place of Origin | Donggaun,china |
| Voltage | 380V |
| Weight (T) | 23 T |
| Material | aluminum and heat resistant alloy |
FAQ:
Q:Are you a factory?
A:Yes,We are China leading vacuum furnace manufacturer ,It was form -erly known as China National Vacuum Research Institute. Our factory is
covering an area of over 10,000sq.m.We have powerful R&D team and manufacturing facility.
Q:Do you have customization or OEM service ?
A:We can provide the regular and standard model sizes,at the same time, we can customize furnaces as product ,work piece size, and temperature
requirement .Meanwhile, we offer OEM service under the strict industrial standard.
Q:What kind of quality standard dose your furnace follow?
A:Firstly, we are ISO9001:2008 and CE certified factory,All the processes are strictly following the standard of the metallurgy process. In the facto
ry, we have about 10employees that work in the quality assurance department.
Q:Can you serve customer oversea like installation and debugging ?
A:Yes,we can dispatch our engineer to your city for installation and debugging or other service. Meanwhile,we will offer relevant docum -ents: The
plan of equipment, Foundation condition graph, The layout of equipment, Electric control system schematic diagram, Main accessorie operating
instr-uctions & qualification and on.
