Product Details:
|
Dimension(L*W*H): | 1200X600X600 | Power (kW): | 100KW |
---|---|---|---|
Voltage: | 380V 50HZ | Core Components: | PLC, Pressure Vessel, Pump |
Size: | Customization | Usuage: | Heat Treatment Furnace |
Machinery Test Report: | Individual Foil Pouch/ Customized Package | Type: | Resistance Furnace |
High Light: | Vacuum Brazing Furnace,Box Type Furnace |

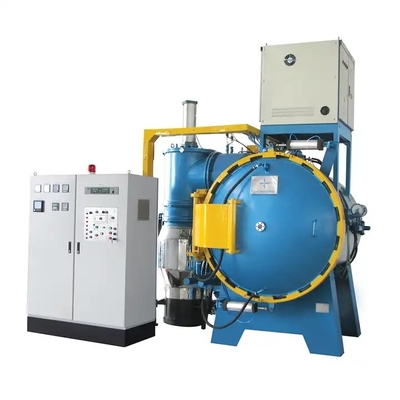

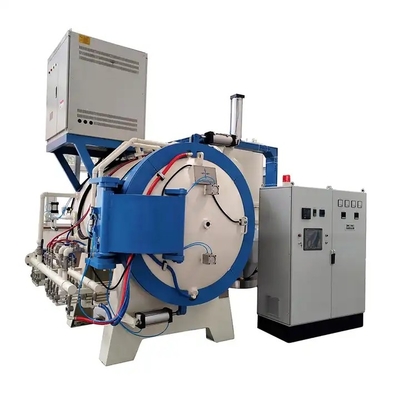

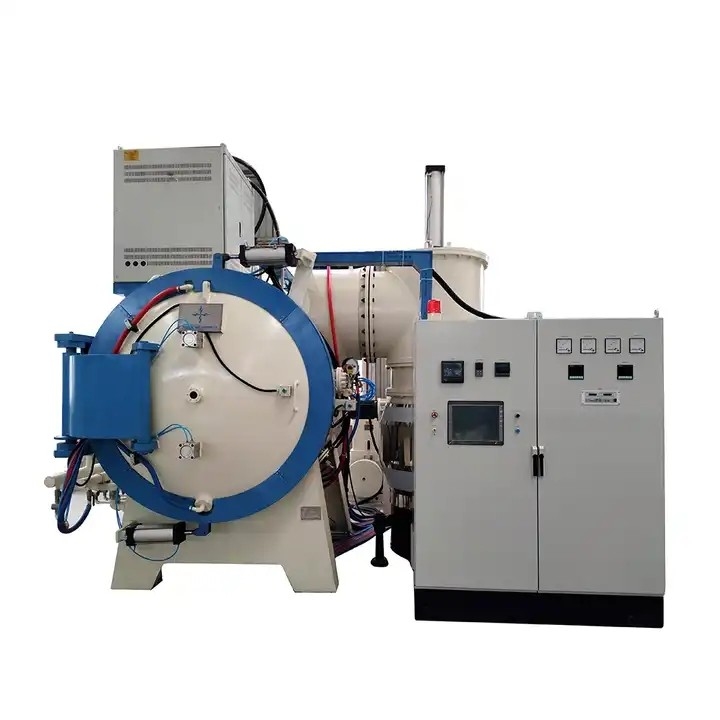

High Temperature Vacuum Brazing Furnace For Stainless Steel Magnetic Materials
characteristic:
1. Vacuum degree can reach 7*10-3Pa (two-stage rotary vane vacuum pump + Roots pump + diffusion pump set)
2. Maximum temperature 1200℃ or 1700℃ is optional
3. Designed with air inlet and exhaust port, can be used for vacuum, also can be filled with inert gas use
4. Helium mass spectrometer leak detector vacuum pickup, to ensure that the vacuum leakage rate is less than 0.67Pa/h.
5. Alumina ceramic fiber furnace and resistance wire or silicon molybdenum rod heating, in order to ensure good use effect, greatly reduce the cost of electric furnace.
6. 50 section programmable temperature control instrument table PID adjustment
7. High strength carbon steel, external electrostatic spray, beautiful and generous
8. Double layer water cooling, shell surface temperature s50℃
9. Pneumatic vacuum valve, easy to operate
10. Upper limit alarm, deviation alarm, automatic stop at the end of the program, no person on duty
technical specifications:
Single-chamber Vacuum High Temperature Brazing Furnace
|
|
||||
Model
|
Valid zone
|
Maximum temperature (℃)
|
Heating power (kw)
|
Ultimate vacuum (Pa)
|
Gas cooling pressure (bar)
|
GK40
|
450x300x300
|
1320
|
40
|
5x10-3or4x10-1
|
2
|
GK80
|
600x400x400
|
1320
|
80
|
5x10-3or4x10-1
|
2
|
GK100 |
750x500x500
|
1320
|
100
|
5x10-3or4x10-1
|
2
|
GK150
|
900x600x600
|
1320
|
150
|
5x10-3or4x10-1
|
2
|
GK200
|
1200X600X600
|
1320
|
200
|
5x10-3or4x10-1
|
2
|
GK300
|
1500x800x800
|
1320
|
300
|
5x10-3or4x10-1
|
2
|
The heating chamber can adopt graphite tube heating and multi-layer graphite felt or graphite hard felt insulation structure;
For products with high requirements or special materials brazing, the heating chamber can also adopt molybdenum belt heating and molybdenum sheet and stainless steel sheet composite insulation structure;
The size of valid zone can be customized according to customer requirements;
Computer control system
|
|||||
Product description: Product description: mainly used for vacuum high-temperature brazing of high alloy steel, magnetic materials, stainless steel,titanium alloy and non-ferrous metal materials, and suitable for vacuum brazing of copper-based, nickel-based and silver-based solders.
|
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
