Product Details:
|
| Warranty: | 1 Year | Packing Dimension: | 100 X 110 X 170cm |
|---|---|---|---|
| Customized Support: | OEM | Condenser: | Water-cooled Condensing Agent |
| Power Rating: | 5000W | Temperature Uniformity: | ±2.0℃ |
| Power: | 220V , 50Hz | Keyword: | Environmental Chambers |
| High Light: | Environmental Humidity Chamber,Humidity Test Chamber |
||

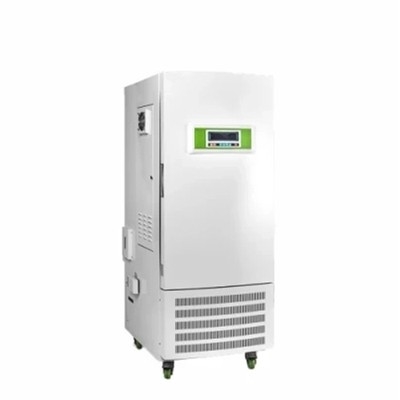

Hospital Ambient Temperature And Humidity Test Artificial Climate Chamber OEM
Features:
1. Adopt imported fluorine-free compressor, environment friendly and reliable.
2. Adopt imported brand humidity sensor, with self-designed built-in water tank and electric heating humidifying system, ensuring high accuracy for humidity.

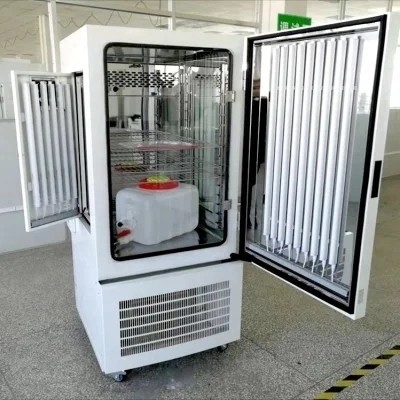

3. Double door design, the inner door is made of tempered glass, can directly observe the culture in the working chamber. the outer door is magnetically sealed.
4. Large LCD touch screen to display multiple parameters at same time , menu interface, enjoyable operation.
5. Adopt mirror stainless steel inner tank, shelves inside the chambers can be freely adjustable without tool,convenient for disinfection and cleaning.
6. The left bottom side is equipped with detachable water level sensor to control the humidifying of tank, which is convenient for operators to check and repair.
Intelligent Control:
1. It can simulate the temperature changes of nature during the day and night and the multi-directional nature light.
2. The parameters set by the user can be automatically stored in case of power cut, it will run the original setting program after power restored.
3. Automatically control for circulating wind speed to avoid plant blowing by strong wind duringtest.
Safety function:
1. Independent temperature limit alarm system, giving sound and visual alarm to prompt operator, ensuring safe operation of equipment.
2. Alarm for high or low temperature.
3. Equipped with leakage protection.
4. Equipped with spare temperature control which ensures the product work normally even the main temperature control failed(for heating).
5. Data control system (optional)
6. Optional RS485 or USB interface and software.
7. With data logging, data communication, and failure analysis function.
8. Optional printer for data recording and print, compliance with GMP standards.
| Control Mode | Balanced Temperature Control System | |
| Operating Temp. & Humid. Range | +5deg ~ +35deg; <85%R.H. | |
| Temp. Range | A=0deg, B=-20deg, C=-40deg, D=-70deg ~ +100deg(150deg) | |
| Temp. Fluctuation | ±0.5deg | |
| Temp. Uniformity | ≤2.0deg | |
| Temp. Deviation | ≤1.0deg | |
| Temp. Heating Time | -40deg ~ +150deg within 35 min; -70deg ~ +150deg within 60 min | |
| Temp. Cooling Time | 20deg ~ -40deg within 60 min; 20deg ~ -70deg within 90 min | |
| Power Supply | AC380V, 50/60HZ, Three-phase (Specified by User) | |
| Material | Exterior Material | Stainless steel with baking paint |
| Interior Material | SUS304# Stainless steel | |
| Insulation Material | Rigid polyurethane foam | |
| Refrigeration System | Refrigerating Method | Mechanical cascade refrigeration system |
| Compressor | Air cooling hermetic compressor | |
| Radiator | Fin type radiator | |
| Refrigerant | Refrigerant R404A | |
| Heating System | Stainless steel radiating heater | |
| Controller | Touch screen controller HL-1000 | |
| Safety Devices | Overheat protector Switch, Compressor overload protector switch Fault alarm system |
|
| Accessories | Viewing window, Chamber lamp, Cable port ø50mm, Product shelf slides 2 pieces, universal casters GSKA-1000 touch screen controller |
|
Note:
1. The performance values are no specimen inside the test area
2. At 20deg ambient temperature, rated voltage
3. According to IEC68-2-1 and IEC68-2-2
4. The above specifications are for reference only.
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
