Product Details:
|
| Warranty: | One Year | Customized Support: | OEM |
|---|---|---|---|
| Application: | Vertical Tube Furnace For Making Quenching Test | Working Temperature: | 1100.C |
| Temperature Control: | 30 Segments Programmable | Voltage: | 220V/50HZ |
| Max. Temperature:: | 1400C | Heating Rate: | 0-20C/min |
| Highlight: | Vacuum Brazing Furnace,Box Type Furnace |
||

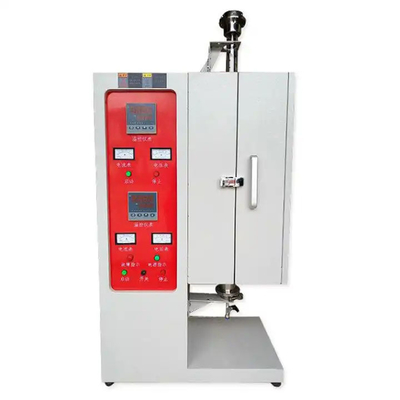

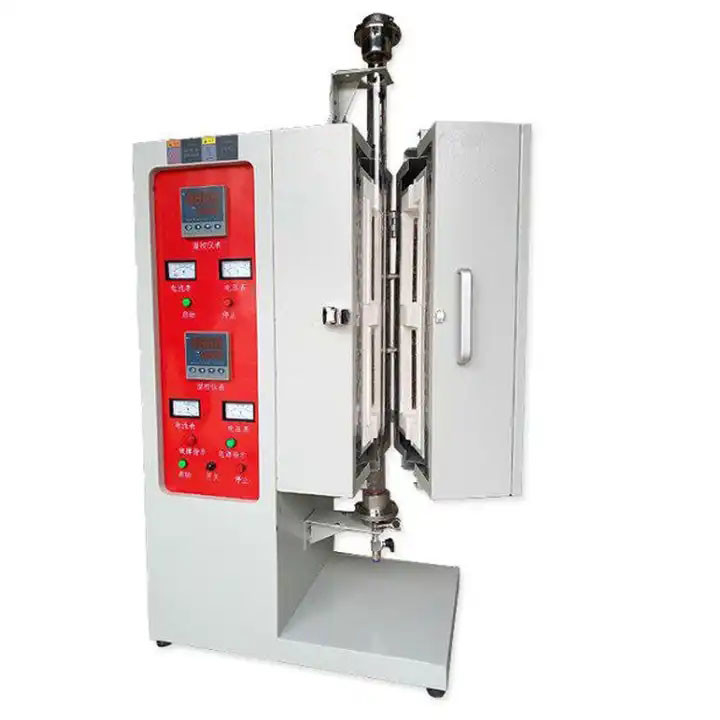

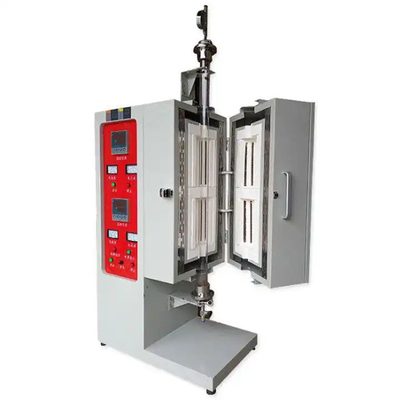

1400℃ Vertical Tube Furnace Can Be Used In Scientific Research Institutes
product presentation:
Vertical vertical tube furnace can be used in ceramics, metallurgy, electronics, glass, chemical industry, machinery, refractory materials, new material development, special materials, building materials and other fields, and is also widely used in colleges and universities, scientific research institutes, industrial and mining enterprises experiment and small batch production.
Vertical tube type furnace features:
1, temperature optional: 1000℃, 1200℃, 1300℃, 1400℃
2. Using vacuum forming technology, forming the inner furnace in one time.
3. Silicon carbon rod or electric furnace wire for heating elements.
4. The furnace tube is made of high temperature resistant stainless steel tube, quartz glass tube or corundum tube.
5, high temperature control precision, display accuracy ±1℃; Impact temperature < 3℃, temperature uniformity ±5℃
6, LED display dial, mainly used for temperature control, sensitive response, PID control, programmable, automatic heating, heat preservation, cooling temperature curve, unmanned duty, with deviation, over temperature power alarm and other functions, with automatic constant temperature and time control function, and is equipped with two over temperature automatic protection function, reliable control, safe use.
7, the heating speed is 0-30℃/min, the heating speed is fast, the empty furnace energy consumption is small, energy saving more than 60%.
8, 1200℃, 1300℃, 1400℃ tube furnace is recommended to use silicon carbon rod heating and 99 corundum pipe diameter.
Various safety protection design, good safety performance, long service life.
| Max.temperature | 1200C |
| Working temperature | 0-1100C |
| Tube diameter | 60mm or as your requirement |
| Tube heating length | 300mm |
| Tube material | High quality 99% quartz tube |
| Heat element | Resistance wire |
| voltage and frequency | 220v 50Hz/60Hz |
| Heating rate | 0-20C/min |
| Temperature accuracy | ±1°C |
| Thermocouple | K type |
| Temperature control | Adopt international advanced temperature controller, with 30-50 programmable PID self-tuning, automatic temperature rise, automatic temperature drop, no duty. |
| Max.vacuum | -0.1Mpa |
| Inlet gas/Atmosphere | It can be filled with various protective or destructive gases,Inert gases, mixed gases, nitrogen, oxygen, etc |
|
Gas control |
The air inlet can be set up 1 or more air intakes, each air inlet is provided with a needle valve, connected with a vacuum gauge. The air outlet is connected with one air outlet, and all holes are equipped with needle valves. Equipped with a vacuum pump. |
|
Vacuum system |
Use Stainless steel vacuum flange with vacuum gauge,valve;Easy to unload, double seal |
| Appearance design | The electric furnace adopts humanized design, beautiful and easy to operate, and the outer layer of paint is sprayed with high temperature baking technology. High temperature resistance, oxidation resistance, acid and alkali resistance. Color selection is aging resistant tone, will not cause the appearance color fade due to a long time of use. |
| Furnace shell structure | Electric furnace shell adopts double layer forced air cooling structure, so that the electric furnace works at the highest temperature and the external temperature of the shell is close to room temperature, so as to avoid accidental injury. |
| Temperature control security | The electric furnace adopts integrated circuit, module control, double circuit protection (partial temperature protection, ultra-high temperature protection, coupling protection, overcurrent protection, overpressure protection and other protection functions) to make the electric furnace work stable and reliable, safe. |
|
Furnace Chamber material |
Adopt the most advanced light alumina ceramic fiber in the world, with excellent thermal insulation effect, light weight, high temperature resistance, cold and heat resistance, no crack, no crystallization, no slag, do not worry about pollution of the fired products. The energy saving effect is 60-80% of the old electric furnace. |
|
Furnace chamber design |
Furnace adopts the stepped assembly structure, integrating the mechanical law, effectively ensure the furnace in the heating process of uniform force, ensure that the heat is not easy to disperse, prolong the service life of the furnace. |
| Sandard accessories | Vacuum pump 1pc, Crucible tongs 1pc, Thermal gloves 1 pair,User manual 1 pc,other small tools for assembly furnace |
| Other temperature options | 1200C,1400C,1700C,1800C |
| Furnace standard Tube size |
Tube diameter:40mm,60mm,80mm,100mm or other OEM size; Heating zone length:200mm,350mm,440mm or other OEM size. |
| Waranty | One year |
FAQ:
1. Q:Are you muffle furnace manufacturer?
A: Yes, we are professional muffle furnace manufacturer of China.
2. Q:What kind terms of payment can be accepted?
A: L/C, T/T, Western Union, Paypal, Trade Assurance, etc.
3. Q: Can I ask for customized furnace?
A: Yes, customized furnace is accepted.
4. Q: What about the delivery time?
A: Normally within 15 days after receiving your payment or based on order quantity and production schedule.
5. Q: What about the guarantee period?
A: The guarantee period is 12 months.
6. Q: What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
