Product Details:
|
| Inside Material: | Stainless Steel SUS 304# | Controller: | Digital Controller From South Korea |
|---|---|---|---|
| Customized Support: | OEM | Condenser: | Water-cooled Condensing Agent |
| Accuracy/ Uniformly: | ±0.1℃;±0.1%R.H./ ±1.0℃;±3.0%R.H. | Temperature Uniformity: | ±2.0℃ |
| Power: | 220V , 50Hz | Keyword: | Environmental Chambers |
| High Light: | Environmental Humidity Chamber,Humidity Test Chamber |
||

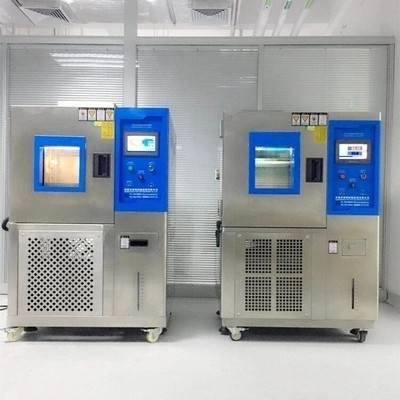

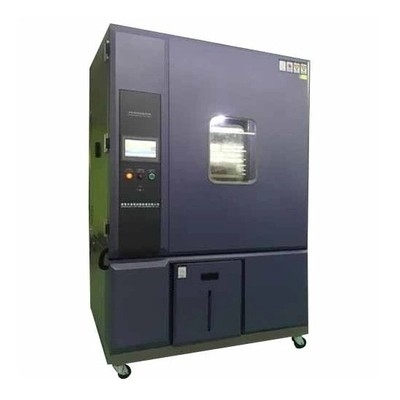

Touching Screen Environment Test Chambers Stainless Steel SUS 304#
Technical parameter:
| Model | GSKA-50L | GSKA-80L | GSKA-225L | GSKA-408L | GSKA-800L | GSKA-1000L | |
| Inner chamber size (CM) | 35*45*35 | 50*40*40 | 50*60*75 | 80*60*85 | 80*100*100 | 100*100*100 | |
| Power (- 40 ℃) | 4.5(KW) | 5.0(KW) | 6.0(KW) | 7.0(KW) | 8.5(KW) | 9.5(KW) | |
|
Performance
|
Temperature range |
A:-20℃~150℃ B:-40℃~150℃ C:-60℃~150℃ D:-70℃~150℃ E:-70℃~180℃ Customized temperature is available |
|||||
| Humidity range |
20~98%R.H Customized humidity is available |
||||||
| Fluctuation / uniformity | ±1.5℃/±2℃ | ||||||
| Humidity deviation | ±3%R.H | ||||||
| Heating rate | About 1.0~3.0℃/min | ||||||
| Cooling rate | About 0.5~1.0℃/min | ||||||
|
Control system
|
Controller | "Temi" brand programming temperature instrument, HD real color LCD touch screen | |||||
| Accuracy range |
Setting accuracy: temperature 0.1 ℃, humidity 1% R.H, Indication accuracy: temperature 0.1 ℃, humidity 1% R.H |
||||||
|
Temperature and humidity sensor |
Platinum resistor PT100Ω/MV | ||||||
| Heating system | Fully independent system, Ni Cr alloy electric heating heater | ||||||
| Humidification system | External isolation type, all stainless steel shallow surface evaporation humidifier | ||||||
| Dehumidification system | Adopt the dew point temperature laminar contact dehumidification method of evaporator coil | ||||||
| Water supply system | Humidification water supply adopts automatic control, and can recover residual water, save water and reduce consumption | ||||||
| Refrigeration system | French "Tecumseh" totally enclosed air-cooled single-stage or cascade compressor refrigeration mode | ||||||
| Circulation system | Motors with low noise and temperature resistance - multi blade centrifugal fans | ||||||
|
Materials
|
Outer box material | High quality carbon steel plates. Phosphorized electrostatic spray or SUS304 stainless steel | |||||
| Inner box material | Stainless steel high quality mirror plate | ||||||
| Thermal insulation material | Polyurethane rigid foam / superfine glass fiber wool | ||||||
| Door frame insulation | Double layer high and low temperature aging resistant silicone rubber door sealing strip | ||||||
| Standard configuration | Multi layer heating defrosting with lighting glass window 1 set, test sample rack 2, test lead hole 1 | ||||||
| Safeguard | Leakage, short circuit, overtemperature, water shortage, motor overheating, compressor overpressure, overload, overcurrent protection | ||||||
| Supply voltage | AC220Vor 380V±10% 50±0.5Hz | ||||||
| Operating ambient temperature | 5℃~+30℃ ≤85%R.H | ||||||
