Product Details:
|
| Warranty: | One Year, 12 Months | Customized Support: | OEM, ODM, OBM |
|---|---|---|---|
| Place Of Origin: | Donggaun,china | Working Temperature: | 0-1100.C |
| Heating Rate: | 0-20C/min | Certificate: | CE |
| Max. Temperature: | 1200.C | Temperature Accuracy: | +/-1℃ |
| Highlight: | Vacuum Brazing Furnace,Box Type Furnace |
||

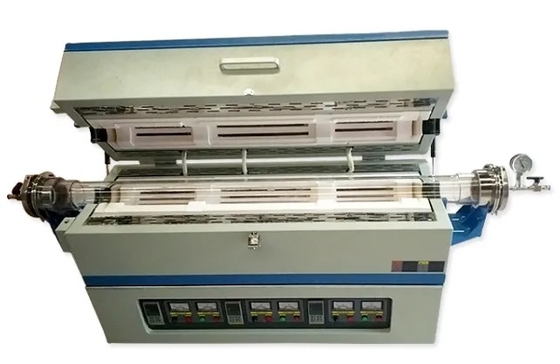

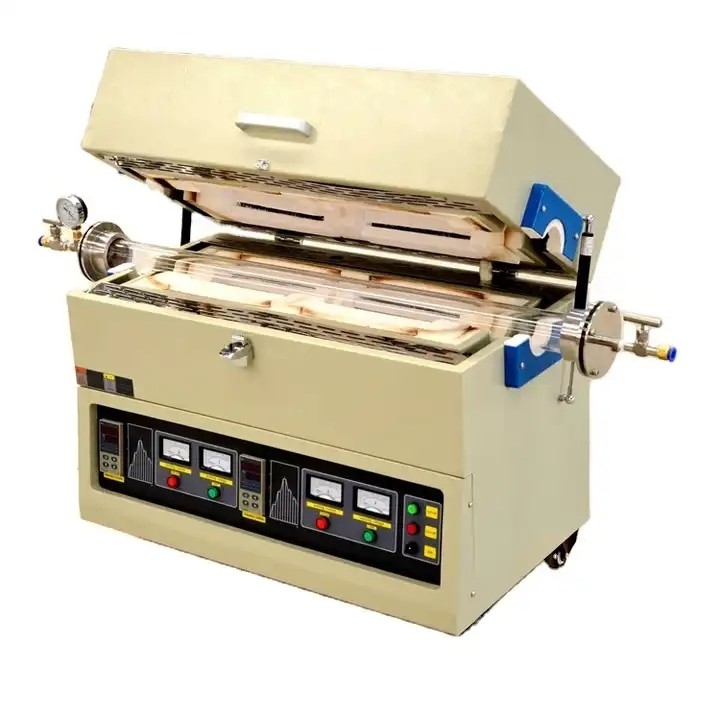

1200℃ High Temperature Three Temperature Zone Tube Furnace Can Be Customized
product presentation:
The furnace of tubular furnace in multi-temperature zone is made of alumina polycrystalline fiber material, and the heating element is the resistance wire coated with zirconia, which has the advantages of balanced temperature field, low surface temperature, fast rising and falling temperature rate, and energy saving. The heating speed is fast, and each temperature zone is separately controlled by five independent temperature control systems. By adjusting the temperature of each temperature zone, five temperature gradients can be formed in the heating zone or a long constant temperature zone can be formed. Each temperature control system is adjusted by PID mode, which can set 30 sections of rising and cooling procedures. K-type thermocouple is used for temperature measurement and control, and the temperature control accuracy can reach +/-1℃. The product is mainly used for powder roasting, ceramic sintering, high temperature experiment, material treatment and quality detection in universities, scientific research institutes, industrial and mining enterprises in vacuum or atmosphere environment.
specification:
| Max.temperature | 1200C |
| Working temperature | 0-1100C |
| Tube diameter | 60mm or as your requirement |
| Tube heating zone length | 300mm*3 |
| Tube material | High quality 99% quartz tube |
| Heat element | Resistance wire |
| voltage and frequency | 220v 50Hz/60Hz |
| Heating rate | 0-20C/min |
| Temperature accuracy | ±1°C |
| Thermocouple | K type |
| Temperature control | Adopt international advanced temperature controller, with 30-50 programmable PID self-tuning, automatic temperature rise, automatic temperature drop, no duty. |
| Max.vacuum | -0.1Mpa |
| Inlet gas/Atmosphere | It can be filled with various protective or destructive gases,Inert gases, mixed gases, nitrogen, oxygen, etc |
|
Gas control |
The air inlet can be set up 1 or more air intakes, each air inlet is provided with a needle valve, connected with a vacuum gauge. The air outlet is connected with one air outlet, and all holes are equipped with needle valves. Equipped with a vacuum pump. |
|
Vacuum system |
Use Stainless steel vacuum flange with vacuum gauge,valve;Easy to unload, double seal |
| Appearance design | The electric furnace adopts humanized design, beautiful and easy to operate, and the outer layer of paint is sprayed with high temperature baking technology. High temperature resistance, oxidation resistance, acid and alkali resistance. Color selection is aging resistant tone, will not cause the appearance color fade due to a long time of use. |
| Furnace shell structure | Electric furnace shell adopts double layer forced air cooling structure, so that the electric furnace works at the highest temperature and the external temperature of the shell is close to room temperature, so as to avoid accidental injury. |
| Temperature control security | The electric furnace adopts integrated circuit, module control, double circuit protection (partial temperature protection, ultra-high temperature protection, coupling protection, overcurrent protection, overpressure protection and other protection functions) to make the electric furnace work stable and reliable, safe. |
|
Furnace Chamber material |
Adopt the most advanced light alumina ceramic fiber in the world, with excellent thermal insulation effect, light weight, high temperature resistance, cold and heat resistance, no crack, no crystallization, no slag, do not worry about pollution of the fired products. The energy saving effect is 60-80% of the old electric furnace. |
|
Furnace chamber design |
Furnace adopts the stepped assembly structure, integrating the mechanical law, effectively ensure the furnace in the heating process of uniform force, ensure that the heat is not easy to disperse, prolong the service life of the furnace. |
| Sandard accessories | Vacuum pump 1pc, Crucible tongs 1pc, Thermal gloves 1 pair,User manual 1 pc,other small tools for assembly furnace |
| Heating zone optation | one,two,tree,five heating zone |
| Other temperature options | 1200C,1400C,1700C,1800C |
| Furnace standard Tube size |
Tube diameter:40mm,60mm,80mm,100mm or other OEM size; Heating zone length:200mm,350mm,440mm or other OEM size. |
| Waranty | One year |
FAQ:
1. Q:Are you manufacturer?
A: Yes, we are professional manufacturer of China.
2. Q:What kind terms of payment can be accepted?
A: L/C, T/T, Western Union, Paypal, Trade Assurance, etc.
3. Q: Can I ask for customized furnace?
A: Yes, customized furnace is accepted.
4. Q: What about the delivery time?
A: Normally within 15 days after receiving your payment or based on order quantity and production schedule.
5. Q: What about the guarantee period?
A: The guarantee period is 12 months.
6. Q: What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
