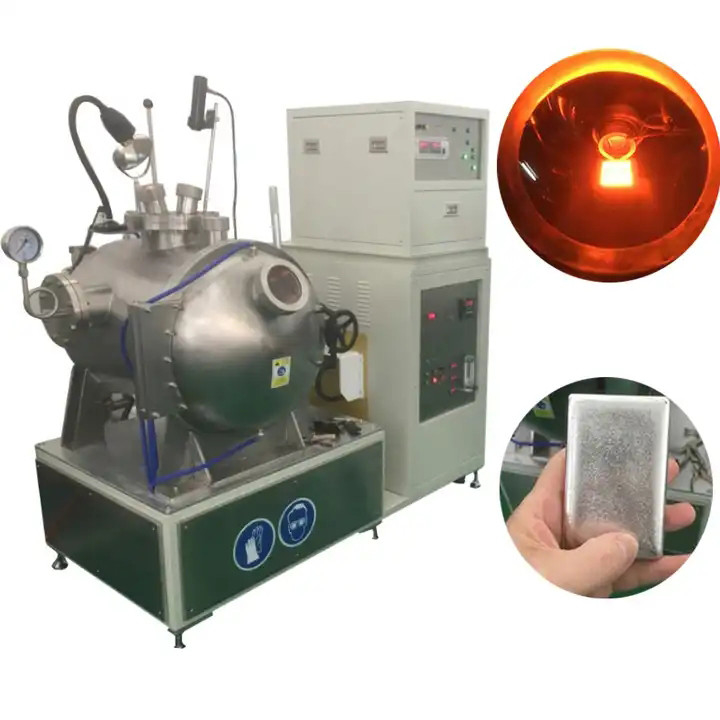

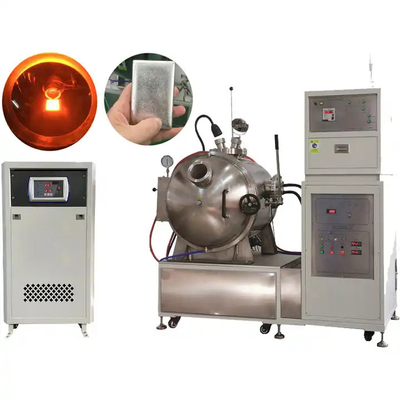

2200°C High Vacuum Induction Melting Machine Vacuum Melting Furnace CE

2200°C High Vacuum Induction Melting Machine Vacuum Melting Furnace CE
2200°C High Vacuum Induction Melting Machine Vacuum Melting Furnace CE 2200°C High Vacuum Induction Melting Machine Vacuum Melting Furnace CE 2200°C High Vacuum Induction Melting Machine Vacuum Melting Furnace CE

Large Image :  2200°C High Vacuum Induction Melting Machine Vacuum Melting Furnace CE

Product Details:
Place of Origin: Dongguan China
Brand Name: GSKA
Certification: CE
Model Number: vacuum melting furnace
Payment & Shipping Terms:
Minimum Order Quantity: Negotiate
Price: Negotiate
Packaging Details: Export package
Delivery Time: 10-60days after confirmed payment or by contract stipulation
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 Set / Sets per Month

2200°C High Vacuum Induction Melting Machine Vacuum Melting Furnace CE

Description
Type: Vacuum Induction Furnace Core Components: PLC, Engine, IGBT
Voltage: 380V/50HZ Dimension(L*W*H): 1500x1200x1750mm
Weight (T): 0.5 T Max. Temp: 2200°C
Power: 15KW/30KW MOQ: 1set
High Light:

Vacuum Brazing Furnace

,

Box Type Furnace

2200°C High Vacuum Induction Melting Machine Vacuum Melting Furnace CE



use:



Wood set each flat field classroo m gateway city of principle Sichuan straight JiRong unit To juice to JiRong な words of the metal under the fast too school has widely should Tian Gan forced its pure dew is unwilling to turn the copper alloy, active metal, high temperature alloy, magnetic materials research and production, can be used for small parts of vacuum precision casting



The design of this equipment system is based on the actual needs of the project and process, using modern high-tech technology.


1. Adopt German high-frequency heating technology, automatic frequency tracking and multiple protection technology, which can be melted in a short time, energy saving and environmental protection, and high work efficiency.
2. The closed type + high vacuum/inert gas protection melting chamber can prevent the oxidation of molten raw materials and prevent impurities from mixing in. This equipment is suitable for the casting of high-purity metal materials or easily oxidized elemental metals.
3. Adopting a closed + high vacuum/inert gas protection melting chamber, melting, refrigerating, and secondary feeding are performed at the same time, which greatly improves production efficiency. The product has the characteristics of no oxidation,low loss, no porosity, no segregation in color, and beautiful appearance.

4. With the electromagnetic stirring function under the protection of inert gas, there is no segregation in color.


5. Using Mistake Proofing (anti-fuzzy) automatic control system, the operation is more convenient.

6. The high-vacuum melting equipment is independently researched and developed and manufactured with advanced technology. It is specially used for the melting and casting of platinum, palladium, gold, silver, copper and other alloys.

7. This equipment uses Mitsubishi PLC program control system, SMC pneumatic and Panasonic servo motor drive and other well-known brand components at home and abroad.

Power
15KW/30KW
Voltage
380V ; 50/60Hz
Max Temp
2200°C
Temp Accuracy
±1°C
PID temp control
Optional
Capacity
1 - 2 kg; 10kg Platinum
Application
Platinum, Palladium, Gold, silver, copper and other alloys
Cooling type
Water chiller(sold separately)
Vacuum Degree
German original vacuum pump, vacuum degree 10-2 Pa (Optional)
Shielding Gas
Nitrogen/Argon
Operation Method
One-key operation to complete the entire process, POKA YOKE foolproof system
Control System
Mitsubishi PLC+Human-machine interface intelligent control system (optional)
2200°C High Vacuum Induction Melting Machine Vacuum Melting Furnace CE 02200°C High Vacuum Induction Melting Machine Vacuum Melting Furnace CE 12200°C High Vacuum Induction Melting Machine Vacuum Melting Furnace CE 2
