Product Details:
|
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, | Voltage: | 380V (adjustable) |
|---|---|---|---|
| Power (kW: | 48 To 480(depend On Size) | Structure: | Horizontal Dual-chamber |
| Max Temperature: | 1300℃ (custom Made) | Oil Tank Capacity: | 800L To 14000L(depend On Model) |
| Warranty: | 1 Year | Loading Capacity: | 200kg To 1200kg (adjustable) |
| Highlight: | Vacuum Brazing Furnace,Box Type Furnace |
||

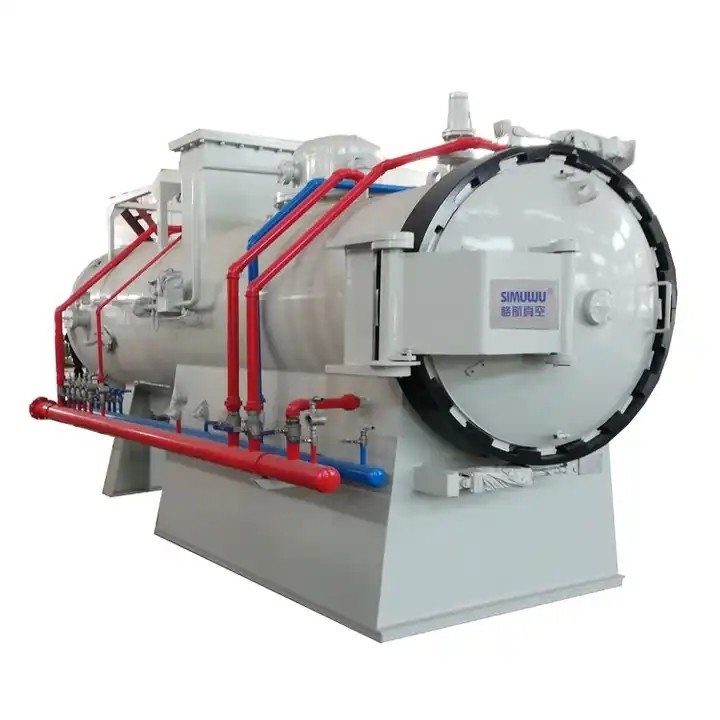

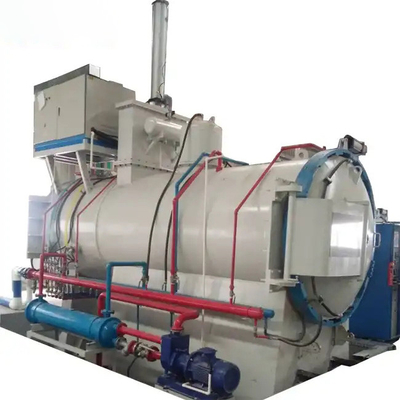

Dual-Chamber Vacuum Oil Quenching Furnace Oil Quenching Gas Cooling Vacuum Furnace
Introduction:
GSKA-Series Vacuum oil&gas quenching furnace with double chamber structure. which can be used for oil quenching/hardening and gas quenching/hardening. Vacuum oil and gas quenching furnace is mainly used for cool work &hot work steel, high speed steel, tool steel material vacuum quenching, tempering and solution-ageing process. For example: H13 D2 M2 HSS Stainless steel Especially for large workpiece and some material hard to do gas quenching. Furnace with automatic intelligent control, easy to operate, and with high safety system.
The main process of oil quenching is to heat the workpiece in the vacuum chamber, move it to the vacuum cooling chamber, then fill it with high-purity nitrogen and immediately send it into the quenching oil tank. There is a stirrer in the oil tank, which can be quickly stirred and cooled. Through oil quenching, a workpiece with good microstructure and no surface oxidation and decarburization can be obtained. The oil quenching cooling speed is fast, the workpiece deformation is small, which is widely used in mold steel heat treatment.
| FURNACE NAME | Model | Application | Decription |
| Vacuum Heat Treatment Furnace |
(1) RQ-series Gas Quencing (2) VQ-series Oil Quencing (3) RA-series Annealing (4) RT-series Tempering (5) RC-series Vacuum Carburzing (6) RN-series Nitriding (7) RN-T-series PIT Gas Nitriding (8) GF-series Gas Carburzing |
Mould steel High speed steel. H13 HSS D2 Inconel Stainless steel Other material |
Max Temp:1350℃ Temp Uniformity: ±3℃or±5℃ Ultimate vaccum:6.67x10-3Pa(custom made) Gas pressure:6/10/15/20Bar |
| Vacuum Sintering Furnace |
(1) RS-series Sintering Furnace (2) IS-H Induction Sintering (3) CF-series Catalytic debinding (4) RS-Series SIC Sintering (5) RD-series Debinding&Sintering |
MIM parts PM parts CIM parts Silicone carbide SIC B4C NdFeB Titanium Tungsten carbide Other material |
Max Temp:1200-2400℃ Temp Uniformity:±3℃or±5℃ Ultimate vaccum:6.67x10-3Pa (custom made) Gas:Ar/N2/H2(Optional) |
| Vacuum Brazing Furnace |
(1)RB-series Low temperature brazing (2)RH-series High temperature brazing (3)RV aluminum brazing |
Glass brazing Bar-plate, tube fin aluminum heat exchanger Stainless steel Copper PCD,PCBN,CVD Other material |
Max Temp:850-1300℃ Temp Uniformity:±3℃or±5℃ Ultimate vaccum:6.67x10-3Pa (custom made) Gas:Ar/N2/H2(Optional) |
| Vacuum Induction Melting Furnace |
(1)IV-series Induction Melting (2)IC-series Continuous Induction Melting |
Stainless steel Nickel alloy Cooper Other material |
Max Temp:1850℃ Ultimate vaccum:6.67x10-3Pa (custom made) Capacity:10kg-1Ton |
| Non-Standard Vacuum Equipment | Custom made | More materials | Custom made according to your requirement |
Advantage:
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
Ø ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
