Product Details:
|
| External Size (mm) W*D*H: | 998×1020×1730 | Temp. Range: | -60 ~ 130°C (Temperature To +150°C Is Optional) |
|---|---|---|---|
| Customized Support: | OEM | Condenser: | Water-cooled Condensing Agent |
| Temp. Fluctuations: | ±0.5°C | Temperature Uniformity: | ±2.0℃ |
| Power: | 220V , 50Hz | Keyword: | Environmental Chambers |
| High Light: | Environmental Humidity Chamber,Humidity Test Chamber |
||

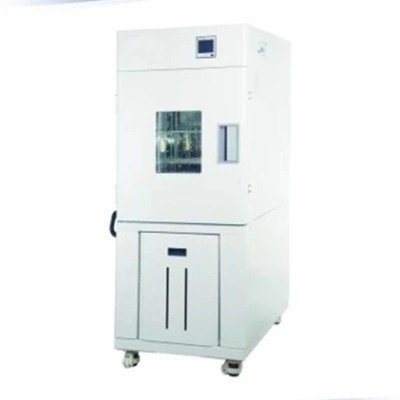

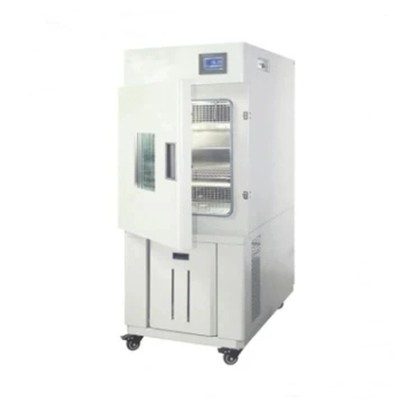

OEM High Low Temp (Humidity) Environmental Test Chamber Connected Printer
Product Description:
Quality Assurance
International brand compressor and circulating fan, temperature uniformity. Environmentally friendly refrigerant (R134a), high efficiency, low energy consumption, promote energy conservation.
Unique wind circulation system to ensure that the working temperature and humidity uniformity, 25mm diameter test 7L, ease of test operation.
Quality 304 mirror stainless steel liner, corners semicircle transition, shelf support handling free, easy cleaning of the box.
The multi-stage programmable control, you can simplify a complex testing process truly automatic control and operation.
Security features:
Independent limit temperature alarm system, more than the limit temperature is automatically interrupted the run, and the sound and light alarm mention mercury operator ensures experiments run safely without accidents.
Temperature high, low and over-temperature alarm.
Compressor overheating, over current, overload protection, fan and overheat protection, water protection.
facilitate data processing (optional)
Can be connected to the printer or communication interface 485, USB data transfer interface (U disk), the computer display, and print
temperature, humidity and time curve during the test data storage and playback, provide a strong guarantee.
| Microprocessor | programmable LCD display | |||
| Temp. range | A: -20 ~ 120°C , B: -40 ~ 120°C, C: -60 ~ 130°C (Temperature to +150°C is optional) | |||
| Temp. fluctuations | ±0.5°C | ±0.5°C | ±0.5°C | ±0.5°C |
| Temp. uniformity | ±2°C | ±2°C | ±2°C | ±2°C |
| Humidity range | 30~95%RH | |||
| Humidity fluctuations | ±3%RH | |||
| Capacity | 68L | 120L | 250L | 500L |
| Working size (mm) W*D*H |
400×380×450 | 500×400×600 | 600×600×700 | 800×700×900 |
| External size (mm) W*D*H |
650×1040×1650 | 700×1040×1750 | 800×1160×1850 | 998×1020×1730 |
| Power | A: 220V/50Hz , B&C: 380V/50Hz | |||
Note:
1. The performance values are no specimen inside the test area
2. At 20deg ambient temperature, rated voltage
3. According to IEC68-2-1 and IEC68-2-2
4. The above specifications are for reference only.
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
