Product Details:
|
Warranty: | 1 Year | Customized Support: | OEM |
---|---|---|---|
Temperature Control: | 51 Segments Programmable | Working Temperature: | 1100-1500℃ |
Max Temperature(℃): | 1200-1600℃ | Heating Rate: | ≤ 20 ℃ /min |
Application: | Material Sintering | Model Number:: | GSA46E |
High Light: | Vacuum Brazing Furnace,Box Type Furnace |

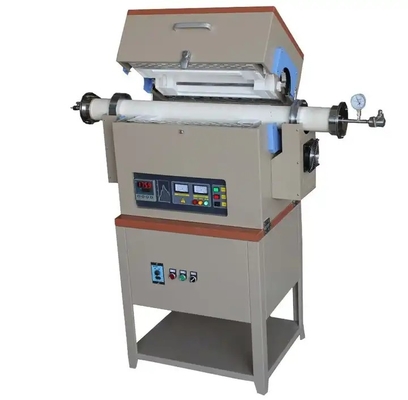

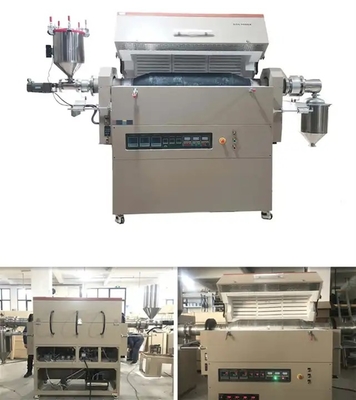

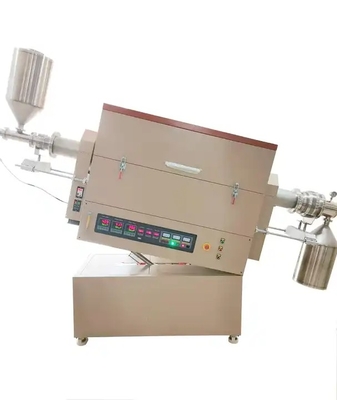

CE Certified 1200℃ High Temperature Rotary Tube Furnace Can Be Tilted At Any Angle
product presentation:
Rotary tube furnace can also be called open inclined rotary tube furnace, he is mainly used for activated carbon, metallurgy, glass, lithium anode materials, rare earth nano new energy, abrasives and other powder particle industry testing materials in a certain atmosphere conditions for heat treatment experiment equipment. Know the purpose of the rotary tube furnace, the following is its characteristics:
1. Light weight, fast heating speed, energy saving, time saving, high temperature resistance, corrosion resistance, good heat preservation, can meet the requirements of rapid sintering.
2. Has very low coefficient of thermal expansion, high temperature resistance, good chemical stability, good electrical insulation.
3. The whole furnace body adopts double-layer inner structure, with air gap isolation in the middle. Even if the temperature of the furnace reaches 1200℃, the surface of the furnace body can still be safely touched without scalding sensation.
4. Double ring sealing technology is adopted to effectively improve the atmosphere of the flange. The flange is equipped with a variety of joints, which can be connected with the resistance vacuum gauge and vacuum bellows and can be made into a hinge type which is easy to be removed.
5. The heating element adopts high quality embedded alloy electric heating wire, high heating efficiency, high temperature resistance, oxidation resistance, corrosion resistance, fast heating, long life, small deformation at high temperature, easy installation and maintenance, long service life.
6. For simple, temperature control precision, reliable, safe multi-stage programmable control, can simplify the complex test process, truly realize automatic control and operation.
Voltage
|
AC 208-240V Single Phase, 50/60 Hz
|
Temperature Accuracy
|
+/- 1 °C
|
Heating Temperature
|
Max. heating temperature: 1200-1600°C (Other temperature can contact us)
Continuously heating temperature: 1100-1500°C |
Titable angle
|
0~40°
|
Vacuum Seal
|
Two stainless steel flanges with vacuum gauge and valves. 1/4" pipe adapters are installed in two ends.
|
Vacuum Level
|
10-2 torr by mechanical vacuum pump.
Leak rate < 5 mtorr / min. |
Heating Element
|
Fe-Cr-Al Alloy doped by Mo or Mosi2 rod/ Sic rod heating elements
|
Power
|
Customized
|
Heating Zone
|
Total heating zone length: 440mm
Constant temperature zone: 150mm (+/-1°C) Can Customized
|
