Product Details:
|
| Core Components: | Motor, Pump | Voltage: | 380V |
|---|---|---|---|
| Weight (T): | 1 T | Maximum Temperature: | 950 ℃ |
| Power (kW): | 60 | Ultimate Vacuum: | 5*10-1 Pa |
| Temperature Uniformity: | ±5 ℃ | Certification: | CE |
| Highlight: | Vacuum Brazing Furnace,Box Type Furnace |
||

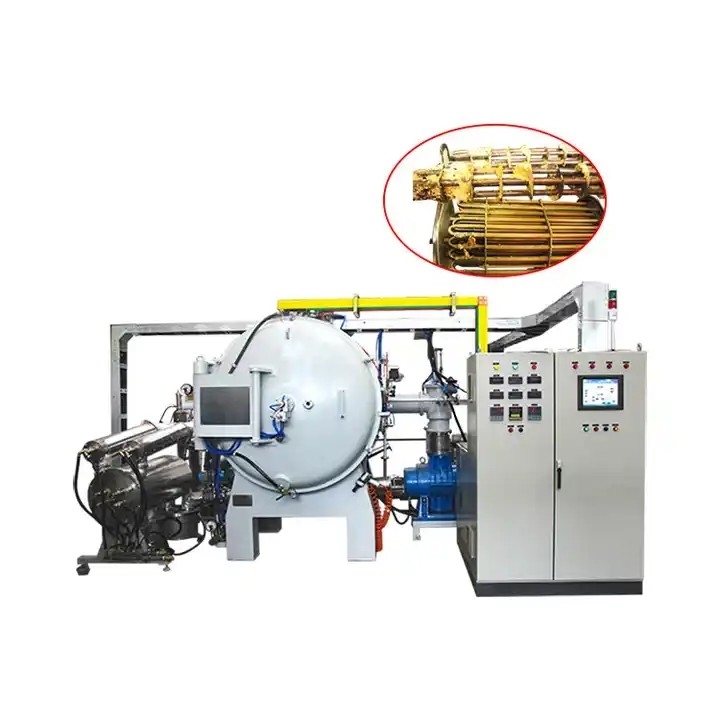

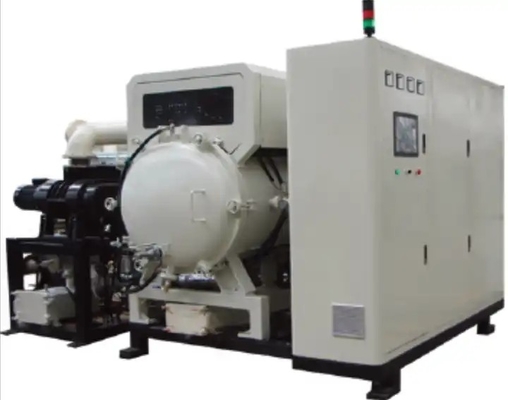

Iron Base Powder Metallurgy Vacuum Thermal Degreasing Furnace Injection Molding
characteristic:
The furnace can be equipped with a square sealed box, on the one hand, the furnace space is more compact to improve the utilization rate: can also reduce the consumption of gas and heating power: the most important is to prevent the degreasing volatile gas does not pollute the furnace wall and insulation materials, all discharged to the furnace
The inert gas (N2) is directly filled into the furnace and the negative pressure degreasing can be carried out effectively by using the pre-vacuum of the furnace
Multilayer graphite plate, effective use of furnace space for loading materials
Graphite rod is used for heating and high purity graphite composite carbon felt is used for insulation layer
The highest heating temperature can reach 1600 degrees
Using slide valve pump + Roots pump vacuum unit, 10 minutes can be pumped to 10 PA
Technical parameters of vacuum thermal degreasing furnace:
| Model | Effective heating zone | Maximum temperature (℃) | Ultimate vacuum (Pa) | Temperature uniformity (℃) | Pressure rise rate (Pa/h) | Heating power (KW) | Furnace loading (Kg) |
| GQ335 | 300*300*500 | 950 | 5*10-1 | ±5 | ≤0.5 | 80 | 75 |
| GQ446 | 400*400*600 | 950 | 5*10-1 | ±5 | ≤0.5 | 100 | 150 |
| GQ558 | 500*500*800 | 950 | 5*10-1 | ±5 | ≤0.5 | 120 | 250 |
| GQ669 | 600*600*900 | 950 | 5*10-1 | ±5 | ≤0.5 | 140 | 300 |
| GQ6611 | 600*600*1100 | 950 | 5*10-1 | ±5 | ≤0.5 | 160 | 400 |
| GQ7712 | 700*700*1200 | 950 | 5*10-1 | ±5 | ≤0.5 | 180 | 600 |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
