Product Details:
|
| Place Of Origin: | Donggaun,china | Type: | Resistance Furnace |
|---|---|---|---|
| Core Components: | PLC | Voltage: | 380V |
| Weight (T): | 3.5 T | Warranty: | 1 Year |
| Dimension(L*W*H): | 500*500*1200mm | Power (kW): | 135 |
| Highlight: | Vacuum Induction Furnace,Vacuum Melting Furnace |
||

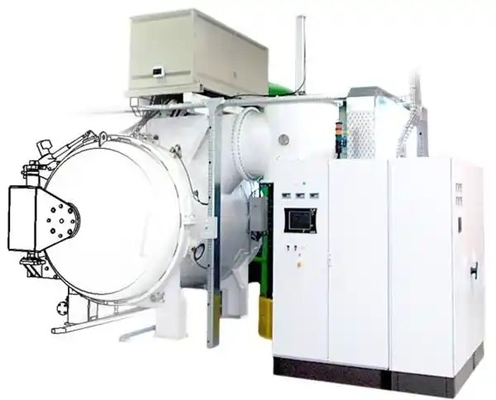

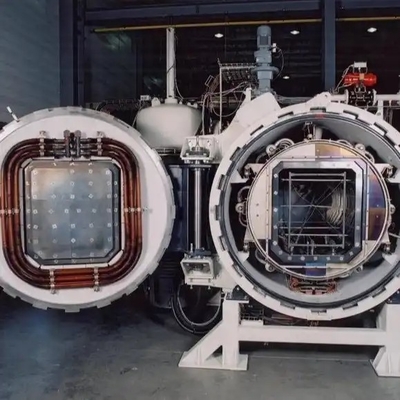

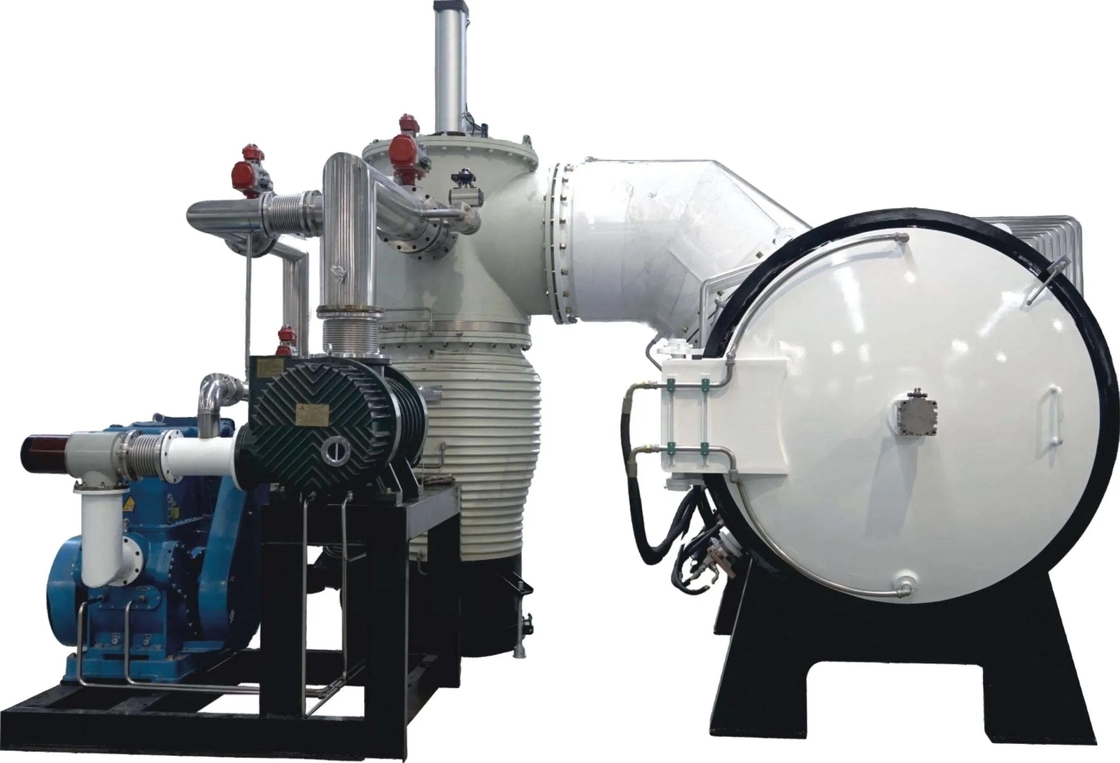

1500C-2400C Vacuum Furnace Heating Treatment For Sintering/Brazing/Annealing
product presentation:
Medium frequency induction sintering furnace absorb the most advanced temperature measurement, temperature control technology, intelligent, new materials technology and furnace design, it's suitable for cemented carbide industry(also applicable to other industries if the conditions in the process allowed), high-performance intelligent electric furnace. The medium frequency induction sintering furnace is a intermittent gas (vacuum) to protect furnaces, sintering time according to the needs of a single set of power can configure multiple furnaces, each individual stove for heat and power electronic cooling section to achieve continuous operation.Application: Applied to cemented carbide, copper tungsten alloy, tungsten, molybdenum, aluminum nickel and cobalt magnet, SmCo5, Sm2Co17 and neodymium iron boron, titanium and other alloy materials of the vacuum/ atmosphere sintering.
Technical Parameters
1. Maximum temperature: 1600
2. High-temperature zone volume: 0.01m3, 0.02m3, 0.03m3, 0.05m3, 0.1m3, 0.15m3, 0.2m3, 0.3m3
3. Furnace working atmosphere: Vacuum, hydrogen, nitrogen, inert gases
4. Temperature uniformity: ≤ ± 10
5. Temperature measurement: Infrared optical temperature measurement range is 800 ~ 1600 or 0 ~ 1600; Measurement Accuracy: 0.2 ~ 0.75%
6. Temperature control: Process control and manual control; Control accuracy: ± 1
7. Limit heating rate: 200 / min (air furnace, depending on volume and high temperature furnace structure.)
| mode spec | unit | GS-L452 |
| heating component(L*W*H) | mm | 500*500*1200 |
| power rate | Kw | 135 |
| max temperature | °C | 1600 |
| limit vacuum | Pa | 1.2*10-2 |
| pressure rise rate | Pa/h | 1.33 |
| temperature uniformity | °C | ±10 |
| quenching gas pressure | bar | 1.5 |
| water cooling pressure | bar | 1.5~2 |
| water cooling temperature | °C | ≤28 |
| dewaxing rate | ≥96% |
Question: Are you a factory?
Yes. We are the famous of High Temperature Vacuum Induction Furnace manufacture, and we have been successfully
served many customers over more than 16 years.
Question: Do you have customization or OEM service?
Yes, we have. Our furnace are specialized designed according to customer's actual needs.
Question: What kind of furnace follow?
Firstly, we are ISO 9001:2015 and CE certificated factory. All the process are strictly following the standard of the metallurgy
process. In the factory, we have about 6 employees that work in the quality assurance department.
Question: Can you serve customer oversea like installation and debugging?
Yes. We can dispatch our engineer to your city for installation and debugging or other service. Meanwhile, we will offer
relevant documents: The plan of equipment; Foundation condition graph; The layout of equipment; Electric control system schematic diagram;
Main accessories operating instructions and qualification
