Product Details:
|
| Weight (T): | 5 T | Voltage: | 380V 50HZ |
|---|---|---|---|
| Dimension(L*W*H): | 600x400x400mm | Power (kW): | 65KW |
| Core Components: | PLC, Pressure Vessel, Pump | Applicable Industries: | Brazing Industry |
| Size: | Customization | Warranty: | 1 Year |
| High Light: | Vacuum Brazing Furnace,Box Type Furnace |
||

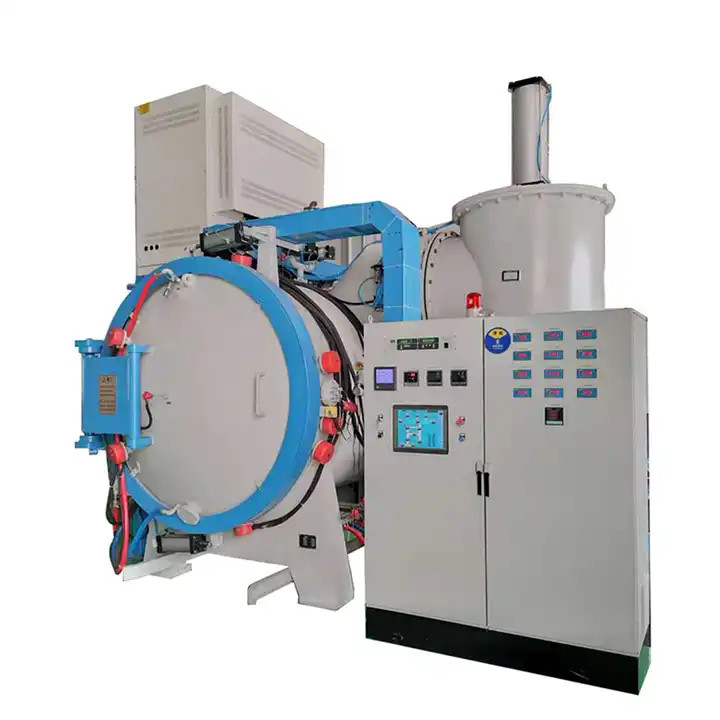

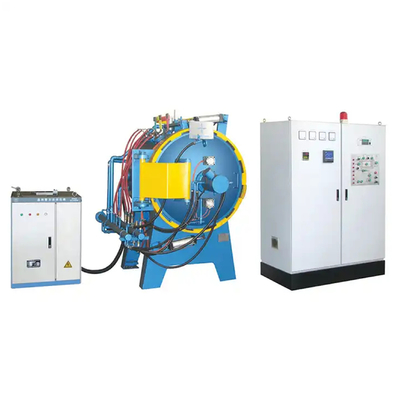

Laboratory heat treatment graphite vacuum tempering furnace 1400 degrees
characteristic:
● With graphite heating body, the highest working temperature can reach 2400℃
● The insulation material is made of imported graphite soft felt and hard felt composite carbon fiber furnace
● The inner layer of the furnace shell is polished stainless steel, the outer layer is carbon steel, double water cooled structure
● Advanced front and rear door design, convenient for customers to unload work parts
● The shell is provided with an observation window, easy to observe the heating situation in the furnace
The use of tungsten rhenium thermocouple and infrared thermometer temperature measurement. Thermocouple in and out automatically
Ultra high temperature graphitization furnace is our engineering and technical personnel digest and absorb foreign temperature measurement, temperature control technology, intelligence, new material technology and furnace design technology, launched a high performance intelligent
Heating furnace. Suitable for high temperature treatment of materials in vacuum or gas protection state.
Technical Specifications:
|
Vacuum Tempering Furnace
|
|
||||
|
Model
|
Valid zone
|
Maximum temperature (℃)
|
Heating power (kw)
|
Ultimate vacuum (Pa)
|
Gas cooling pressure (bar)
|
|
GK40
|
450x300x300
|
1320
|
40
|
5x10-3or4x10-1
|
2
|
|
GK65
|
600x400x400
|
1320
|
65
|
5x10-3or4x10-1
|
2
|
|
GK80
|
700x500x500
|
1320
|
80
|
5x10-3or4x10-1
|
2
|
|
GK150
|
900x600x600
|
1320
|
150
|
5x10-3or4x10-1
|
2
|
|
GK300
|
1500x800x800
|
1320
|
300
|
5x10-3or4x10-1
|
2
|
|
The heating chamber can adopt graphite tube heating and multi-layer graphite felt or graphite hard felt insulation structure
For products with high requirements or special materials, it can also adopt molybdenum belt heating and molybdenum sheet andstainless steel sheet composite insulation structure;
The size of valid zone can be customized according to customer requirements;
Equipped with low-temperature convection heating system;
Computer control system;
|
|||||
|
Product description: mainly used for bright tempering of various materials after vacuum quenching, and can also be used for recrystallization annealing and aging of nonferrous metals.
|
|||||
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
