Product Details:
|
Warranty: | 1 Year | Customized Support: | OEM, ODM |
---|---|---|---|
Place Of Origin: | Donggaun,china | Working Temperature: | 1100C(Continuous) |
Temperature Control: | 1C/-1C(Depends On The Chamber Size) | Max Temperature: | 1200 Deg C |
Heating Rate: | Max 20C/min | Tube Material: | Quartz Tube |
High Light: | Vacuum Brazing Furnace,Box Type Furnace |

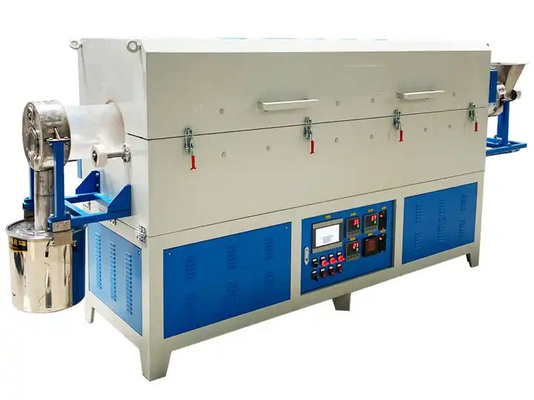

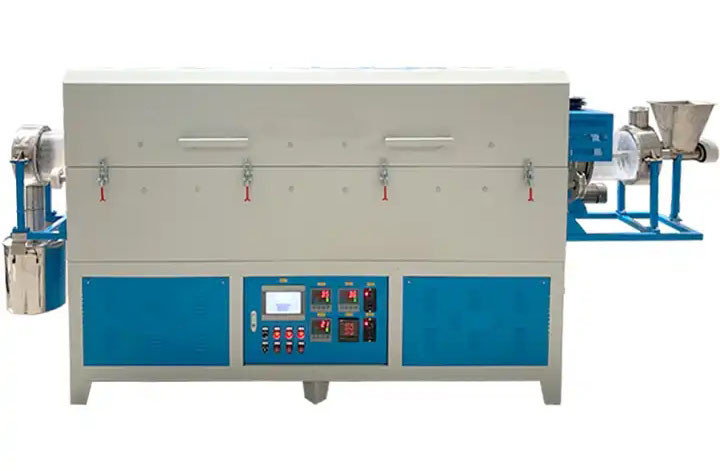

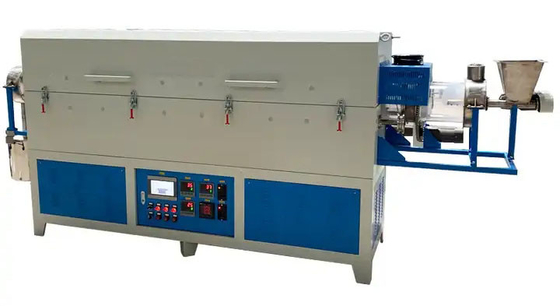

1600 ℃ Multi Temperature Zone Tubular Furnace Can Be Individually Controlled
Main functions and characteristics of multi-temperature zone tubular furnace:
1. Two built-in heating zones can create different temperature gradients within 300℃.
2, with over temperature alarm power off function and leakage protection measures, safe and reliable operation.
3, the use of KF fast flange sealing, only need a clamp can complete the connection of the flange, put, take materials convenient fast key.
4, double temperature zone control system adopts PID control, control instrument can set 50 sections of temperature and cooling procedures, each temperature zone can be controlled separately.
5, good thermal insulation performance, durable, high tensile strength, no stray ball, high purity, energy saving effect is significantly better than other domestic fiber materials; The combination type furnace design, after strict thermal calculation, durable, no collapse, prolong the service life of the furnace.
6, the heating element adopts silicon carbon rod, greatly improve the service life, furnace tube material selection of 99 alumina corundum tube, high density, durable, not easy to break.
7. Multiple heating curves can be set up and allocated to different sintered materials. When needed, they can be called directly without interference and no need to modify temperature parameters repeatedly.
8, Through the software, and computer interconnection, can achieve a single or multiple electric furnace remote control, real-time tracking, historical record, output reports and other functions, can be installed paperless recorder, data storage, output.
specification:
Power
|
0-500kw
|
Voltage
|
AC 208-240V, 50/60HZ
|
Tube materials
|
High Purity Quartz Tube
|
Tube Size
|
Dia80mm x 1400mm (optional)
|
Temperature Controllers
|
Two digital controllers with PID control and self-tuning
Each has 51-segments programmable with protection for overheated and broken thermo-couple |
Thermal Couple
|
K type
|
Temperature Accuracy
|
±1℃
|
Heating Element
|
Fe-Cr-Al adopted Mo Wire
|
Heating Zones
|
440mm
|
Constant Temperature Zone
|
200mm
|
Warranty
|
One year limited warranty (Consumable parts such as processing tubes, o-rings and heating elements are not covered by the warranty)
|
FAQ :
1.Is your company accepting customization?
We have our own factory and excellent technical team, and we accept OEM service.
