Product Details:
|
| Warranty: | 1 Yearty | Customized Support: | OEM |
|---|---|---|---|
| Max Temperature:: | 1600C | Voltage: | 220V/50HZ |
| Certificate: | CE SGS ROHS UL | Working Temperature: | 1400C |
| Power: | 8KW | Temperature Accuracy: | ±1℃ |
| High Light: | Vacuum Brazing Furnace,Box Type Furnace |
||

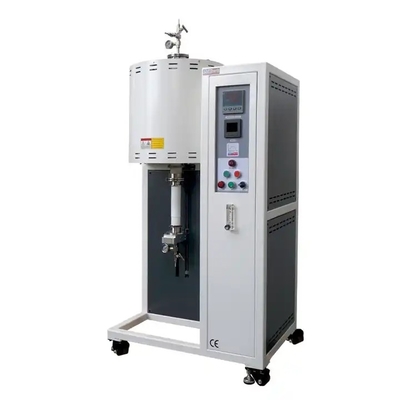

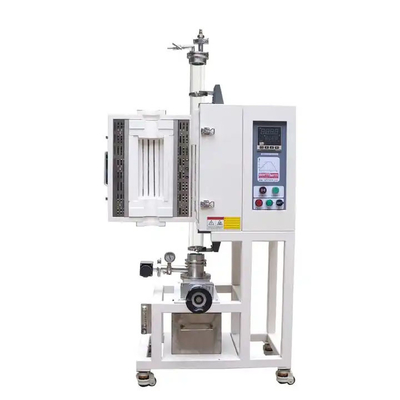

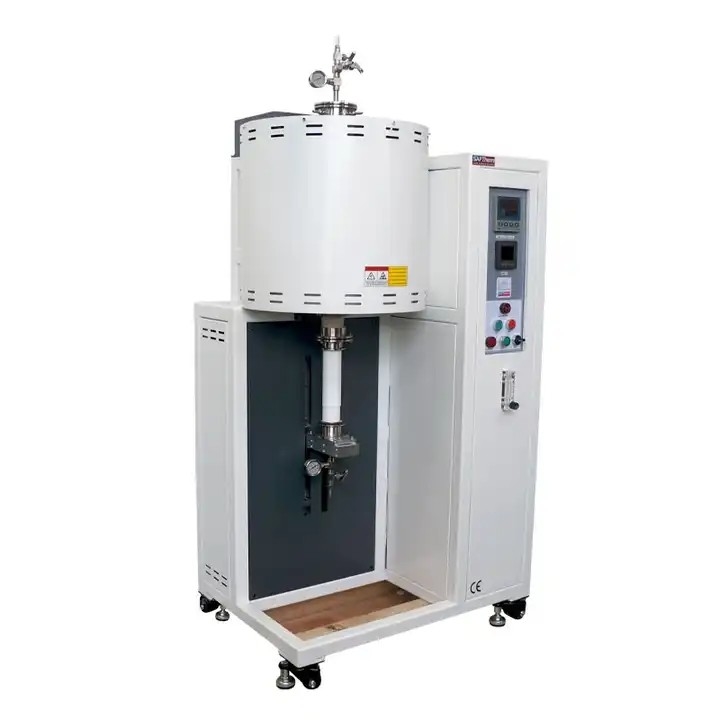

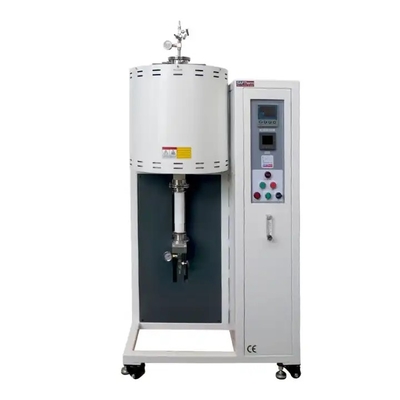

Customizable Vertical Vacuum Tube Furnace 1600℃ High Temperature Programmable
product presentation:
Vertical tube furnace refers to foreign advanced technology, independent research and production of high efficiency, energy saving, environmental protection, high precision, new electric furnace, with advanced and reasonable structure, beautiful appearance, the shell is made of high quality cold rolled steel plate, advanced CNC machine processing, luxury, beautiful two-color imported epoxy powder electrostatic painting process, processing, high temperature resistance, corrosion resistance, the use of high quality heating elements The double-layer furnace shell is equipped with an air cooling system, which can reduce the temperature quickly. The furnace has the advantages of balanced temperature field, low surface temperature of furnace body, fast rising and falling temperature, energy saving and so on. The furnace is made of imported ultra-high temperature fiber materials by unique technology. It has strong thermal shock resistance, good corrosion resistance, no collapse, no crystallization, no slag, no pollution and long service life. The control system adopts microcomputer artificial intelligence adjustment technology, with PID adjustment, fuzzy control, self-setting function, multi-segment programming, and can prepare a variety of temperature, heat preservation, cooling procedures, high temperature control precision; Integrated module thyristor control, phase shift trigger, protection system: independent over temperature protection 1 protection, over pressure, over current, leakage, short circuit and other protection. High degree of automation, the indicators have reached the international advanced level. This equipment is widely used in universities, scientific research institutes, industrial and mining enterprises to do powder, electronics, metallurgy, medicine, ceramics, military, aerospace, new materials, chemical industry, metal sintering and metal heat treatment and other experimental and production ideal equipment.
specification:
|
Model
|
GSA-65N
|
GSA-66N
|
GSA-67N
|
GSA-68N
|
GSA-69N
|
GSA-70N
|
|
Chamber size(WxLxH)mm
|
Φ40 x 1000
|
Φ60 x 1000
|
Φ80 x 1000
|
Φ100 x 1000
|
Φ150 x 1000
|
Φ200 x 1000
|
|
Type
|
Split
|
|||||
|
Furnace structure
|
Chamber material, temperature controller system, heating element, furnace shell and other assistant parts
|
|||||
|
Max temperature
|
1400℃
|
|||||
|
Continue Operating Temp.
|
1350℃
|
|||||
|
Power supply
|
220V/3KW
|
220V/4KW
|
220V/5KW
|
220V/6KW
|
220V/7KW
|
380V/9KW
|
|
Heating element
|
High quality SIC rod
|
|||||
|
Chamber material
|
High temperature polycrystal alumina ceramic fiber material
|
|||||
|
Temperature precision
|
±1℃
|
|||||
|
Thermocouple
|
S type
|
|||||
|
Temperature controller
|
YUDIAN intelligent microcomputer PID controller can program 30 segments
|
|||||
|
Electronic component
|
DELIXI make
|
|||||
|
Heating rate
|
≤ 25℃/min ( suggest 15℃/min for longer life using of furnace )
|
|||||
|
Safety protection
|
Overheat and thermocouple-break alarm
|
|||||
|
Furnace shell
|
high quality cold-rolled steel sheets CNC processing
|
|||||
|
Insulation
|
High quality thermal insulation material to ensure a good uniformity
|
|||||
|
Accessories
|
One pair of high temperature furnace gloves
One piece of furnace hook One set of sealing flanges |
|||||
|
Optional |
Paperless recorder
Quartz boat Vacuum pump |
|||||
FAQ:
1.Is your company accepting customization?
We have own factory and excellent technical team, and we accept OEM service.
