Product Details:
|
| Warranty: | 3 Years | Controller: | Programmable LCD Touch Screen |
|---|---|---|---|
| Programmable LCD Touch Screen: | 1000*1000*1000mm | Power Supply: | AC380VAC 50Hz, 3Phase |
| Internal Material: | SUS304 Stainless Steel | Power Supply: | AC380V 50HZ |
| Certification: | CE SGS ROHS UL | Model: | GSA-68 |
| Highlight: | Walk In Climate Chamber,Temperature Test Chamber |
||

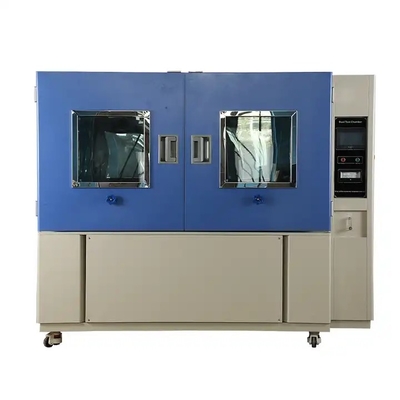

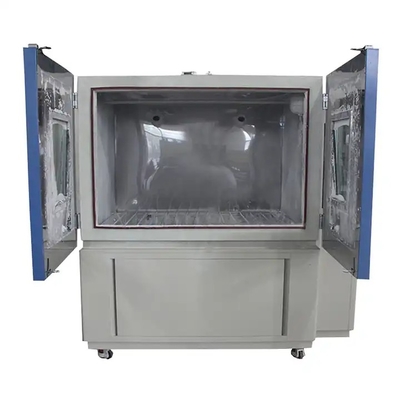

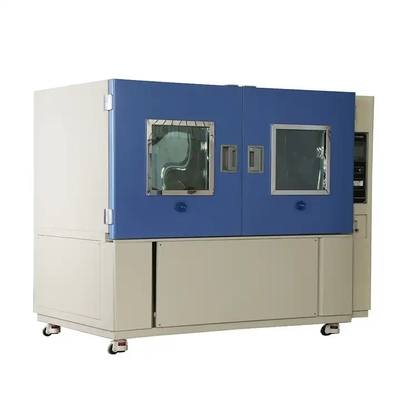

Programmable sand and dust test chamber can be used for dust explosion test
Dust test chamber is an experimental equipment used to assess the risk of dust explosion and fire. It is usually made of stainless steel and has sealed doors and lighting. The device can be used to test and assess the explosive and fire properties of various dusts at predetermined temperatures, humidity and oxygen concentrations. The use of dust test box can help enterprises develop more safe operating procedures, reduce the risk of dust explosion and fire, and ensure the safety of workers in production.
Technical Parameters
|
Name
|
Sand and Dust Test Chamber
|
|
|
Model
|
DI-1500
|
DI-2000
|
|
Internal Dimension (mm)
|
1000*1500*1000
|
1000*2000*1000
|
|
Overall Dimension (mm)
|
1250*1900*1960
|
1300*2400*1960
|
|
Interior Volume (L)
|
1500
|
2000
|
|
Temperature Range
|
Ambient ~ +50℃
|
|
|
Humidity Range
|
< 30% RH
|
|
|
Normal Wire Diameter
|
50um
|
|
|
Nominal Width of a Gap Between wires
|
75um
|
|
|
Fight Time
|
0 ~ 99H59M
|
|
|
Blowing Time
|
0 ~ 99H59M
|
|
|
Specimen Power Outlet
|
Dust-proof socket 16A
|
|
|
Heating Element
|
Nichrome heater
|
|
|
Vacuum System
|
Equipped with a pressure gauge, air filter, pressure regulator, connecting tube
|
|
|
Controller
|
Programmable color LCD touch screen controller
|
|
|
|
Ethernet connection, PC Link
|
|
|
Interior Material
|
SUS304 stainless steel
|
|
|
Observation Window
|
Interior lighting, double-layer thermo stability silicone rubber sealing
|
|
|
Standard Configuration
|
Sample shelf, dust wiper, talcum powder(5kgs)
|
|
|
Power Supply
|
380V 50Hz
|
|
|
Maximum Noise
|
65 dBA
|
|
|
Environmental Conditional
|
5℃～+35 ℃ ≤85% RH
|
|
|
Standard
|
IEC 60529, ISO 20653
|
|
1. How to choose the most suitable Mechanical Equipment ?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do andthe required specification.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15~20 working days after deposit receipt. If you are
in urgent need, we can consider making special arrangement for you.
3. Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines
according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4. Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
5. Do you have customers of our country before?
Now our testing machines have been sold to more than 100 countries, like USA, Canada, Russia,UK, Italy, Germany, European , India, Pakistan,
Philippine, Singapore, Malaysia,Thailand , Vietnam, Korea,Saudi Arabia,Brazil...and so on.
6. How about your warranty?
Generally,our warranty is two years. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers
may go to your place for better service.
7. How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air
without damage.
8. What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing -
delivery - customer receiving - after service.
9. How to install and use the product?
The product is shipped with an operating instructions and video of English version.
