Product Details:
|
| Work Rate: | 200W (According To Load) | Tensile Space: | 500mm |
|---|---|---|---|
| Power Supply: | AC220V±10%,50Hz | Control Method: | Computer Control |
| Data Sampling Frequency: | 200times/sec | Test Speed Range: | 50-500mm/min |
| Load Range: | 0.4%～100%F·S | Structure: | Single Column Double Spaces |
| High Light: | Universal Tensile Tester,Universal Testing Machine |
||

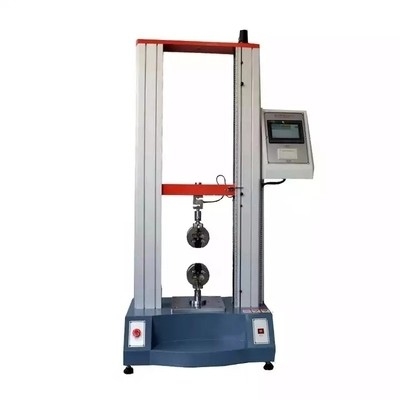

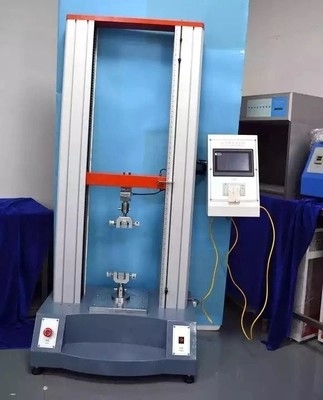

Desktop Digital 100-2000KG Universal Tensile Test Machine OEM
Main function:
This machine is applied to test all material in tension, compression, bending, shear, peel (90 degrees and 180 degrees), tear or two extended (need to add extensometer) and others, the material such as textile, rubber, plastics, synthetic leather, tape, adhesive, plastic film, composite materials, electronics, metals and other materials, it can judge the product quality from the test.
Main features:
1. The appearance of good design. For many years, our company have been very much pay attention to the appearance of the products,developed many products can be comparable to those of foreign models,surface is aluminum and electrostatic spray figure.
2. Digit Led can identify tension or stress, LCD interface clear, easy to read.
3. Units:N-K GF- LBF optional and can be automatically swap.
4. LCD Liquid crystal display with backlighting, Can be used in the environment of the insufficient light.
5. Single determination, can read tensile and press peak value, and can be manually reset.
6. With the function of limit and overload in downtime.
7. Contain thermal printers, can automatically output test results.
8. Can store 10 test reference points automatically calculate the average, automatic fetching max force,fracture strength value.
Technical Parameters :
| Model | GSKA-600 |
| Support Customized | Yes |
| Max capacity | 5kg,10kg,25kg,50kg,100kg,250kg,500kg (It is optional.) can be setting |
| Induction method : | Precision load cell (sensor) |
| Max. Load Capacity : | 500kg |
| Force Resolution/Accuracy: | ± 0.5% |
| Accuracy class : | 0.5 |
| Resolution: | 1/1,000,000 |
| Test width: | 400mm(Standard specifications special specifications can be customized) |
| Test stroke : | Max.700 mm( included the fixture) |
| Stroke Resolution: | 0.01mm |
| Speed range: | 0.001-20inches/min |
| Reference Machine Dimension: | 580*580*1250mm (W*D*H) Support Customized |
| Power : | 1 phase 220V 50/60Hz |
| Packing | Standard Export plywood case |
| Force system | servo drives + Servo motor + precision ball screw drive |
| Control system | Mechanical transmission + TM2101 + Pulse Command and Control System control |
| Measurement and Control System | TM2101 and control system; master controller uses the most advanced 32-bit ARM processor in the 21st century, the processing speed of the Pentium-class common computer standards, compared to the traditional 8 yuan SCM control system overall performance greatly improved, faster operation, control accuracy higher |
Obtain data |
The key components are used America's most stable and ultra-precision 24 yuan AD, sampling rate of up to 2000 times / sec, can capture the power of instantaneous change process, the entire file, regardless of the resolution of up to 1,000,000 indexing |
| Displacement Control: | Displacement encoder count with four frequency technology So that the displacement of four times the resolution can up to 0.0005mm |
| Safety devices: | 1. overload, emergency stop device
2. the upper and lower travel limit devices
3. the test is completed automatic shutdown device
|
|
|
ASTM D903, ASTM E8 CNS11888, JIS K6854, PSTC7 ASTM D903,GB/T16491CNS-11888,JIS K6854, PSTC-7 ,ASTM E4,ASTM D828,ASTM D882,ASTM,D1938,ASTM D 412 ,ISO 8339ASTM D3330,ASTM F88,ASTM F904,ISO 37,JIS P8113,QB/T 2358,QB/T 1130 , ISO 527 ,ISO 178 and other standards. |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
Need more info about Precision UTM Tensile Testing Machine Two Point Extension Stretch Test Machine ,please let us know,thank you
