Product Details:
|
Application: | Tension Compression Bending Flexural Test | Weight: | 70 Kg |
---|---|---|---|
Power Supply: | AC220V±10%,50Hz | Control Method: | Computer Control |
Test Material: | Metal /Non Metal | Test Speed Range: | 50-500mm/min |
Load Range: | 0.4%~100%F·S | Structure: | Single Column Double Spaces |
High Light: | Universal Tensile Tester,Universal Testing Machine |

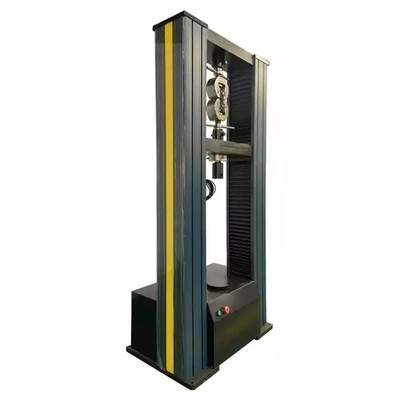

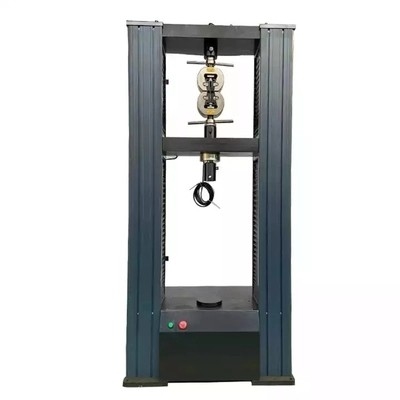

Extensometer Universal Testing Machine 220v For Metal / Non Metal
This testing machine can test and analyze the mechanical properties of metal, non-metal and composite materials, and can test the tensile, compression, bending, shear and other items of various insulating materials. It conforms to the national standard GB / T 228-2010, and can obtain the test data required by the test force, elastic modulus and yield strength. It is widely used in aerospace, petrochemical, machinery manufacturing, vehicle manufacturing, wire and cable, textile fiber, plastic rubber, ceramic building materials, food, medical packaging, metal materials and products and other industries
Features:
Using 32-bit high-precision AD converter (resolution of up to 1 / 10,000,000) and high-precision load cell to ensure that the instrument force data collection of the rapidity and accuracy;
Can be connected to computer software, with real-time display compression curve function and data analysis function;
The use of imported electrical components, high-speed data processing, the entire English menu, before the test can be pre-input sample parameters and test parameters, after the end of the test automatically calculate and output the maximum force, elongation, maximum tensile strength, Can save multiple sets of test data and results.
Stepless speed regulation (5-500mm / min arbitrary setting) screen real-time display test force, peak, test speed, running status and so on.
Using a single space test structure, the sensor is bi-directional pull-pressure force sensing, tensile or compression tests are completed below, pre-selected test methods;
With peak hold, sample break down, return to the original test and other functions, with upper and lower mechanical limit, electrical overload and other protection features.
Technical Parameters :
Model | GSKA-20 |
Maximum test force | 20KN |
Accuracy | 0.5/1grade |
Test space | double space (upper tensile test ;lower compression bending shearing test) |
Maximum width of test space | 400mm |
Maximum tensile space | 750mm |
Maximum compression space | 1000mm |
Compression plate size | φ100 |
Adjustment range of beam moving speed (mm / min) | 0.01 ~ 500 |
Overall dimension | 730 * 410 *1800mm |
Weight | About 180kg |
Accept customized fixture,test space.Just contact us to get technical solutions |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
Need more info about Precision UTM Tensile Testing Machine Two Point Extension Stretch Test Machine ,please let us know,thank you
