Product Details:
|
| Place Of Origin: | Dongguan China | Effective Test Force Range: | 0.02/100~100% |
|---|---|---|---|
| Max. Route (mm): | 1000(not Including Clamp) | Power: | AC220V, 1ph 3 Lines; AC380V, 3ph 5 Lines |
| Brand Name: | GSKA | Speed Accuracy: | Less Than ±0.5% |
| Motor: | AC Servo Motor | Capacity (Kg): | 50,100,200,500,1000,2000,5000,10000,20000 |
| High Light: | Universal Tensile Tester,Universal Testing Machine |
||

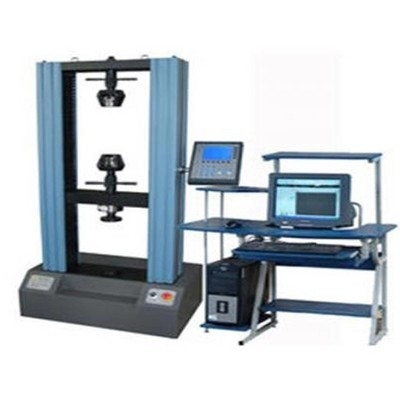

Laboratory Universal Tensile Testing Machine 1-20KN Computer Servo Control
Application:
Tensile Testing Machine is an electrically operated machine that is used for testing tensile strength and elongation of materials like plywood, wires, cables, conductors, ferrous and non-ferrous materials.
Corresponding Standard:
ASTM D903,GB/T16491,GB/T 2790/2791/2792,CNS-11888,JIS K6854, PSTC-7 ,GB 13022,GB 8808,GB 1040,GB 4850,GB 7753/7754,GB 453,GB/T 17200,GB/T 16578,GB/T 7122,GB/T 17590,ASTM E4,ASTM D828,ASTM D882,ASTM D1938,ASTM D3330,ASTM F88,ASTM F904,ISO 37,JIS P8113,QB/T 2358,QB/T 1130 and other standards.

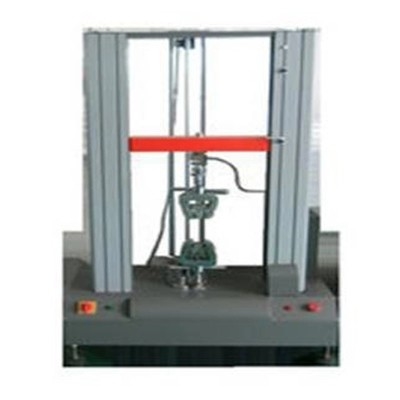

Front View of Universal testing machine laboratory apparatus textile fiber tensile test machine/rubber tensile tester
Features:
1. Force value and deformation can display at the same time.
2. Drive by servo motor, stand-alone can sent testing speed directly.
3. Press Start button the machine will testing automatic after setting.
4. After finishing testing, it can self-return.
5. Fast disassembly joint, can use different kinds grips.
6. Single button testing function, easy operation
7. Direct-connected to printer, print out report.
Technical Parameters:
| Model | GSA-1200-A |
| Capacity (Kg) | 50,100,200,500,1000,2000,5000,10000,20000 |
| Load Accuracy | 0.5% |
| Load Resolution | 1/100,000 |
| Valid Width (mm) | 400 |
| Max. Route (mm) | 1000(not including clamp) |
| Test Speed (mm/Min.) | 0.1~500(1000) |
| Speed Accuracy | ±0.5% |
| Motor | AC servo motor |
| Volume WxHxD (mm) | 1750x3310x1220 |
| Weight (Kg) | 300 |
| Power | AC220V, 1ph 3 lines; AC380V, 3ph 5 lines |
Main feature:
Adopted photoelectric encoder to measure the displacement, the controller uses the embedded single-chip microcomputer structure with multi-function software, which combined with measurement, control, calculation and storage. It can automatic calculate the stress, rate of elongation (need to add with extensometers), tensile strength, elastic modulus, automated statistical results; automatically recorded the biggest point, breaking point, the designated point value or the rate of elongation; Using computer to display the dynamic curves in the testing process and process the data, After testing, it can re-analysis and editing the data by amplifying the curves through the graphics processing module, printing reports, product performance reached the international advanced level.
Customer Support Services:
1. Installation
2. Training (Training customer employees)
3. Calibration
4. Preventative maintenance
5. Replacement parts
6. Assistance via phone or internet
7. On-site diagnosis and repair/online diagnosis and repair
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
