Product Details:
|
| Place Of Origin: | Dongguan China | Use: | Tensile Strength Testing Equipment |
|---|---|---|---|
| Accuracy: | ±0.5% | Weight: | Approx.85kg |
| Brand Name: | GSKA | Max. Stroke: | 1200mm (excluding Fixture) |
| Elongation Accuracy: | 0.001mm | Power: | 1phase,AC220V, 50HZ |
| High Light: | Universal Tensile Tester,Universal Testing Machine |
||

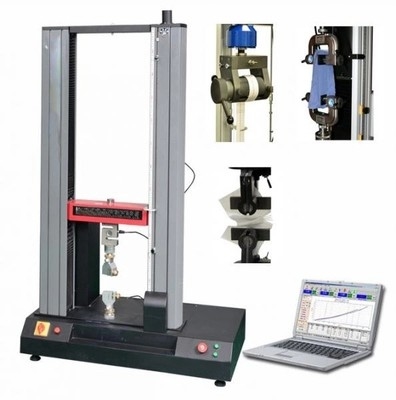

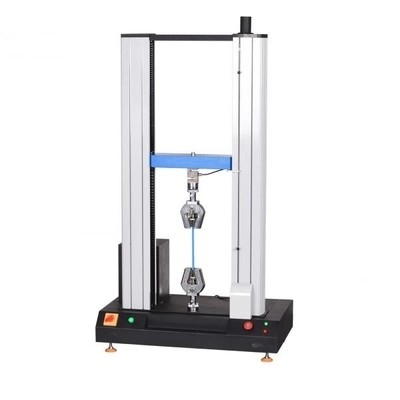

Single Phase Tensile Test Equipment Load Cell Fabric Tensile Tester
Product Description:
Single Phase Celtron Load Cell Tensile Test Equipment Fabric Tensile Test Use is mainly applied to test all kinds of fabrics, such as plain dyed, yarn-dyed poplin, dyed grid tweed, oxford, chambray, denim, and khaki, twill, herringbone, gabardine, satin, dobby, jacquard cloth, and so the tensile, compression, bending, shear, peel, tear, extending two (need to reprovision extensometer) and other tests.
Test principle:
Sample clamped in a fixture between the two fixture, relative motion between two fixtures, through the dynamic clamping force on the head sensor and machine built-in displacement sensors, collected during the test force and displacement, to calculate properties such as tensile strength, tear strength and deformation of the sample rate indicators.
Tensile testing machine lazy pointer back to zero lag or instability:
the pointer bearings, spindle bearings rust or oil: Clean or replace the bearings. the gear lever or gear lever and gear deformation is not engaged: straightening gear lever or cleaning, repair gear, sheave and other transmission components.the buffer valve is dirty: Clean the cushion valve.
Main Technical Parameters:
| Items | Specification |
| Sensor | Celtron load cell |
| Capacity | 5, 10, 20, 25, 50, 100, 200kg |
| Unit Switchover | G, KG, N, LB |
| Display Device | LCD or PC |
| Resolution | 1/250,000 |
| Accuracy | ±0.5% |
| Max. Stroke | 1200mm (excluding fixture) |
| Test Speed | 0-500mm/min (adjustable ) |
| Motor | Taiwan 400w servo motor |
| Screw | High Precise Ball Screw |
| Elongation Accuracy | 0.001mm |
| Power | 1phase,AC220V, 50HZ |
| Weight | Approx.85kg |
| Accessories | One set tensile clamp, one set Lenovo computer, one piece English software CD, one piece operation video CD, one piece English user manual |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
