Product Details:
|
| PropertiesObservation Window: | Tempered Glass | Temperature Fluctuation: | ±1.0℃ |
|---|---|---|---|
| Customized Support: | OEM | Condenser: | Water-cooled Condensing Agent |
| Cooling Rate/min: | 1 Degree | Temperature Uniformity: | ±2.0℃ |
| Power: | 220V , 50Hz | Keyword: | Environmental Chambers |
| High Light: | Environmental Humidity Chamber,Humidity Test Chamber |
||

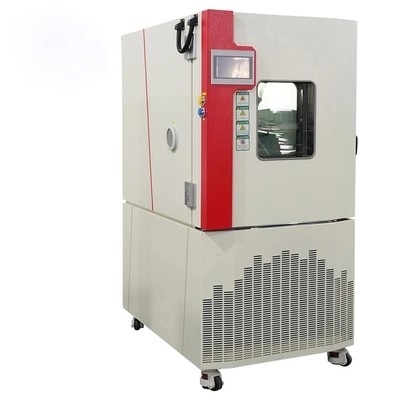

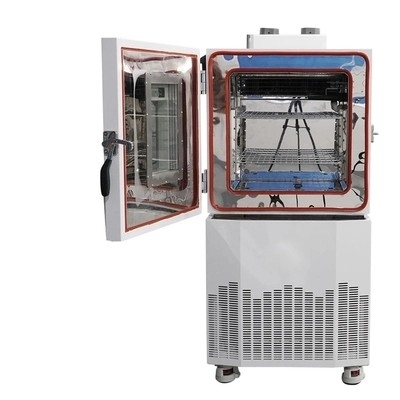

Touching Screen Environmental Chambers Temperature Overshoot ≤±2℃
Test Chamber Applications:
1. To simulate test environment with different temperature and humidity
2. Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, moistening test and drying test…
3. Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation
4. Uncover test unit weakness in a short-term test with accelerated time effect
The scientific name of high and low temperature environmental test box "high and low temperature test box" refers to a test box that simulates the natural environment. It mainly tests whether the product is resistant to high and low temperature. To test and determine the parameters and performance of electrical, electronic and other products and materials subjected to high temperature, low temperature, or constant temperature environment changes.
Performance parameters:
| Temperature Range | A:-0~150℃ B:-20~150℃ C:-40~150℃ D:-70~150℃ |
| Humidity Range | 20%RH-98%RH (details see temperature humidity control diagram). |
| Temperature Fluctuation | ±0.5℃ |
| Humidity Fluctuation | ±2%RH |
| Temperature Deviation | ≤2.0℃ |
| Humidity Deviation | A)>75%RH:≤+2,-3%RH,B)<75%RH:≤±5%RH. |
| Temperature Uniformity | ≤±2.0℃ |
| Humidity Uniformity | +2,-3%RH |
| Heating Rate | Approx 3℃/mins,average non-linear ,no load |
| Cooling Rate | Approx 1℃/ mins,average non-linear ,no load |
| Temperature Overshoot | ≤±2℃ |
| Internal Material | 1.2mm thick SUS#304 high &low temperature resistance stainless steel. |
| External Material | Adopt flame retardant high strength PU Polyurethane foam insulation material. |
| Control Method | Touch screen programmable PLC, with USB interface, with RJ485 interface can be connected to computer controlling, special network control software, convenient remote monitoring, data acquisitioning. |
