Product Details:
|
| Model Number: | GSA-T36 | Brand: | GSKA |
|---|---|---|---|
| Temperature Test Range: | -40~180℃ | Interior Size: | 50×60×*50cm |
| Temperature Precision: | ±0.3℃ | Temperature Distribution: | ±1% |
| Power: | 220V/40W | Timer: | 0-9,999min |
| Highlight: | Environment Test Chambers,Temperature And Humidity Test Chamber |
||

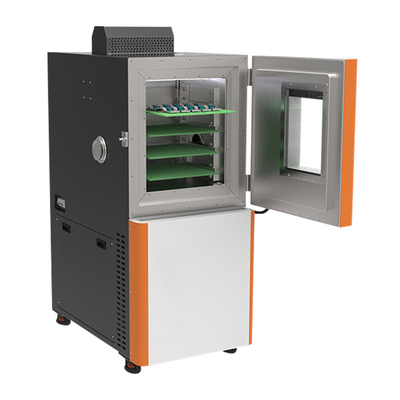

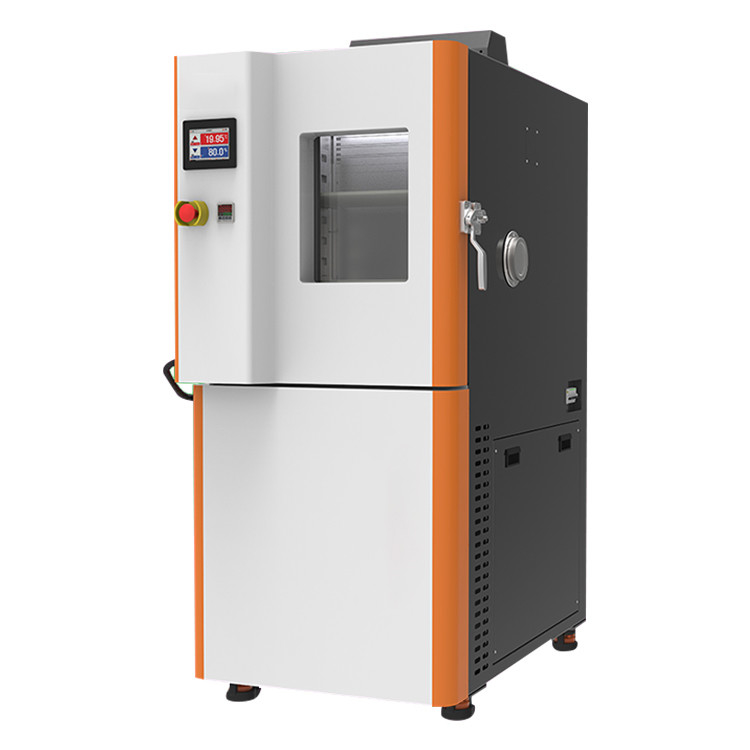

Battery Explosion-Proof Environment Test Chambers Temperature Range -40~180℃
product presentation:
The GSA series battery testing room is an ideal choice for testing batteries and battery modules. These temperature test chambers can be used with or without humidity. In order to test the reliability of lithium batteries, our battery explosion-proof laboratory tests lithium batteries under various testing conditions, such as low or high temperature, rapid temperature changes, humidity, etc. During temperature testing, the battery may overcharge or malfunction. This may cause damage to the battery. When using lithium-ion batteries for testing, increasing storage capacity may have a greater impact on potential failures and risks. Therefore, the safety of the laboratory and the protection of staff during the testing process are crucial.
|
Model
|
GSA-T36
|
|
|
Temperature range
|
-40~180℃
|
|
|
Interior size
(W×H×D) |
50×60×*50cm
|
|
|
Exterior size(W*H*D)
|
70×122×65cm
|
|
|
Temperature precision
|
±0.3℃
|
|
|
Temperature distribution
|
±1%
|
|
|
Temperature control
|
Electronic LED digital display PID automatic number microprocessor temperature controller
|
|
|
Timer
|
0-9,999min
|
|
|
Testing shelf
|
Adjustable speed of 1-10rpm, single-layer rotating frame
|
|
|
Interior material
|
SUS Mirror stainless steel
|
|
|
Exterior material
|
Special cold - tie steel plate, anti - rust treatment, with high - grade resin coating
|
|
|
Safety device
|
Over-temperature protection, leakage protection, current overload protection
|
|
|
Standard attachment
|
Adjustable stainless steel partition×2 sets
|
|
|
Power
|
40Φ/50Hz, 4.5kW
|
220V/40W
|
