Product Details:
|
| Sensor And Amplifier: | Oil Pressure Sensor, Plug In A PC Programmable | Flat Specimen Clamping Thickness: | 0-15mm |
|---|---|---|---|
| The Measuring Range Of Test Force: | 12 KN To 600 KN | Dimensions: | 900×600×2250 Mm |
| Piston Stroke: | 250mm | Deformation Measurement Accuracy: | ±0.5% |
| Transport Package: | CTN | Fulcrum Diameter: | Ø 50 Mm |
| High Light: | Universal Tensile Tester,Universal Testing Machine |
||

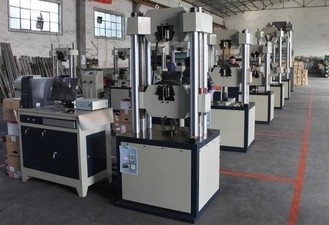

600kn Computer Controlled Hydraulic Universal Testing Machine
Hydraulic Universal Testing Machine Purpose:
Tensile Compressive Bending Tester is the use of fuel tank mounted under the host and mainly used for tensile, compression, bending and shear tests of metal or non-metallic materials, suitable for metallurgy, construction, light industry, aviation, aerospace, materials, universities, research institutes and other fields.Test operations and data processing meet GB228-2002 "metal materials at room temperature tensile test method" requirements.
Testing Machine Description:
(1) Host:
Host is the use of the fuel tank mounted under the host, the tensile space located at between of the upper crossbeam and lower crossbeam, and the compression, bending, shears test space located at between of the lower crossbeam and a host base. The host structure show as below
(2) Transmission System:
Lower crossbeam’s rising and falling is the use of the motor, cycloid reducer, chain gears, and lead screw nut drive, to adjust the space of tensile and compression.
(3) Hydraulic System (piano desktop oil source)
A. Hydraulic principles
As shown below is adaptive load oil into the throttle governing system.Hydraulic oil in the tank through the motor to drive high pressure gear pump into the oil passage, flow through the check valve, 10μ high pressure filter, pressure valve, servo valve, into the cylinder. Computer sends a control signal to the servo valve, control and direction of the opening of the servo valve to control the flow into the cylinder to achieve constant test force, constant displacement control.
B. Feature:
(a) High pressure gear pump, low noise, and smooth pressure.
(b) Dynamical Systems and operations console integrated design, easy to operate, and saving experiments space.
(c) Surface after spray treatment, appearance is beautiful.
Universal Testing Machine Parameters:
| Model Number | GSKA-600 |
| The Measuring Range of Test Force | 12 kN to 600 kN |
| Test Force Display value Accuracy | ± 1% |
| Displacement Measurement Resolution | 0.01mm |
| Deformation Measurement Accuracy | ±0.5% |
| Constant force, Constant deformation, Constant Displacement Control Range | 0.4% ~ 100% FS |
| Pistons Maximum Speed | 100mm / min |
| Maximum Tensile Test Space | 650mm (including the piston stroke) |
| Maximum Compression Space | 480mm (including the piston stroke). |
| Flat Specimen Clamping Thickness | 0-15mm |
| Round Specimen Clamping Diameter | Ø 13- Ø 26mm or Ø 26- Ø 40mm |
| Pressure Plate Dimensions | Ø 120mm |
| Bending Test Spacing | 350 mm |
| Branch Roll Width | 140 mm |
| Fulcrum Diameter | Ø 50 mm |
| Piston Stroke | 250mm |
| Clamping Method | Hydraulic clamping |
| Sensor and Amplifier | oil pressure sensor, plug in a PC programmable |
| Dimensions |
Host: 900×600×2250 mm |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
