Product Details:
|
| Production Capacity: | 15 Sets/Month | Transport Package: | Each Set Protected With Resin Fiber And PP Film, |
|---|---|---|---|
| Customized Support: | OEM | Condenser: | Water-cooled Condensing Agent |
| External Dimension(W*D*H) Uniformity: | 600*1080*1380mm | Temperature Uniformity: | ±2.0℃ |
| Power: | 220V , 50Hz | Keyword: | Environmental Chambers |
| High Light: | Environmental Humidity Chamber,Humidity Test Chamber |
||

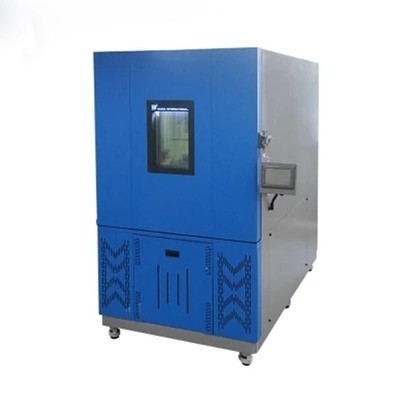

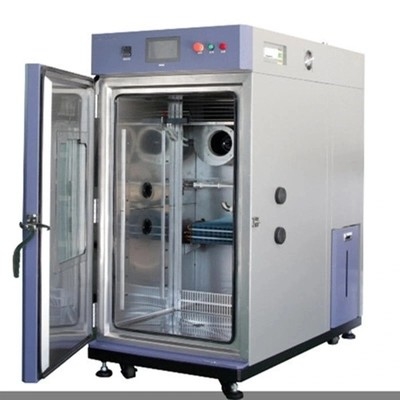

OEM Environmental Test Machines Rapid-Rate Thermal Cycle Chamber SUS#304
Product Description:
This chamber is ideally suited for specimen test requiring quick changes of temperature. It can evaluate the failure of thermal mechanical properties of product. Normally the temperature rate is less than 20C/min, which can achieve the real application environment of testing sample by the fast ramp rate.
Applications:
1. To simulate test environment with different temperature and humidity
2. Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, and drying test…
Test Standard:
IEC60068-2-14 Change of temperature with specified rate of change
Main Parameters:
| Item | Specification |
| Internal dimension(W*D*H) | 400*500*500mm |
| External dimension(W*D*H) | 600*1080*1380mm |
| Working capacity | 100 liter |
| Internal chamber material | SUS#304 stainless steel, mirror finished |
| External chamber material | Stainless steel with paint spray |
| Temperature range | -70ºC~+180ºC |
| Temperature fluctuation | ±1C |
| Humidity range | 10%~98%RH |
| Humidity fluctuation | ±2.5%RH |
| Humidity uniformity | 3%RH |
| Sample tray | SUS#304 stainless steel, 2pcs |
| Observation window | Tempered glass: 250*300mm |
| Testing hole | Diameter 50mm, for cable routing |
| Power supply source | Three-phase, 380V, 50Hz |
| Safety protection device | Protection for leakage Over-temperature Compressor over-voltage and overload Heater short circuit |
(The table parameters for the company Standard Model parameters, we support customer customization parameters)
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
