Product Details:
|
Warranty: | 2 Years | Place Of Origin: | Guangdong,China |
---|---|---|---|
Humidity Range: | 20%~98%R.H. | Inside Material: | Stainless Steel SUS 304# |
Controller: | TEMI300 Digital Controller From South Korea | Power: | 220VAC±10% 50/60Hz 380VAC±10% 50/60Hz |
Temperature Range: | -70℃~+100℃(150℃) | Heating / Cooling Time: | About 4.0℃/min |
Highlight: | Thermal Test Chamber,Environmental Test Chamber |

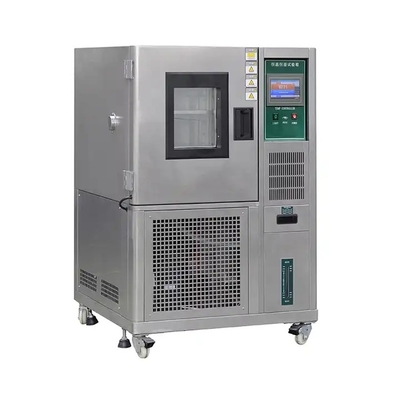

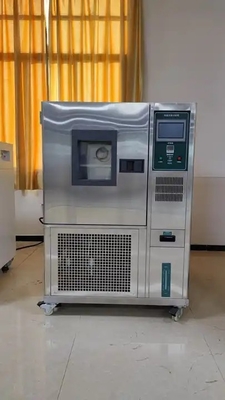

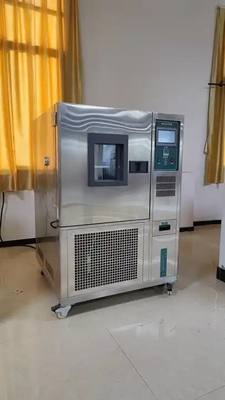

Benchtop Environment Test Chamber, Humidity And Temperature Control Chamber
product presentation:
Temperature and humidity control room is used to control and adjust indoor temperature and humidity equipment room. The room is equipped with temperature and humidity sensors, temperature and humidity controllers, heating or cooling devices, ventilation systems and other equipment, through automatic or manual control system to achieve fine control of the indoor environment, to meet the temperature and humidity requirements of different places. Temperature and humidity control room is commonly found in hospitals, laboratories, factories, electronic equipment manufacturing and other places, can improve the accuracy and stability of production and experiment, ensure the quality and reliability of products, but also provides a comfortable working and living environment. Temperature and humidity control room is used to control and adjust indoor temperature and humidity equipment room. The room is equipped with temperature and humidity sensors, temperature and humidity controllers, heating or cooling devices, ventilation systems and other equipment, through automatic or manual control system to achieve fine control of the indoor environment, to meet the temperature and humidity requirements of different places. Temperature and humidity control room is commonly found in hospitals, laboratories, factories, electronic equipment manufacturing and other places, can improve the accuracy and stability of production and experiment, ensure the quality and reliability of products, but also provides a comfortable working and living environment.
Features:
1.High-texture appearance, the surface handled through the matte stripes, and use of planar non-reactive handles, easy to operate, safe and reliable.
Standard:
1.International Electrotechnical Commission Standard:
IEC68-2-03_test method Ca_Steady damp-heat
IEC68-2-01_test method A_cold
IEC68-2-02_test method B_dry heat
2. Military Standards:
MIL-STD-810F-507.4 humidity
MIL-STD-810F-501.4 high temperature
MIL-STD-810F-502.4 low temperature
MIL-STD883C test method 1004.2 temperature and humidity cycling test
MIL-STD810D test method 502.2
MIL-STD810 test method 507.2 procedure 3
Model |
GSA-L24 |
GSA-L25 |
GSA-L26 |
GSA-L27 |
GSA-L28 |
Inside size WxHxD (cm) | 40x50x40 | 50x60x50 | 50x75x60 | 60x85x80 | 80x95x80 |
Outside size WxHxD (cm) | 100x170x87 | 105x175x97 | 115x190x97 | 135x195x115 | 145x185x137 |
Temperature range | -70℃~+100℃(150℃) (A:+25℃ B:0℃ C:-20℃ D:-40℃ E:-50℃ F:-60℃ G:-70℃) |
||||
Humidity range | 20%~98%R.H.(10%-98%R.H/5%~98%R.H is the specific condition) | ||||
Accuracy/ uniformly | ±0.1℃;±0.1%R.H./ ±1.0℃;±3.0%R.H. | ||||
Accuracy / volatility | ±1.0℃;±2.0%R.H./ ±0.5℃;±2.0%R.H. | ||||
Heating / cooling time | About 4.0℃/min;about 1.0℃/min(5~10℃/mm is the specific condition) | ||||
Inside material | Stainless steel SUS 304# | ||||
Insulation material | High-temperature high-density amino acid ethyl ester foam insulation materials, | ||||
Cooling system | Air-cooled/ single-stage compressor(-20℃) ,wind, water cooled/two-stage compressor(-40℃~-70℃) | ||||
protection | compressor overload switch, high and low pressure protection switch, over-humidity-temperature protection switches, fuses, warning system | ||||
accessories | recorder(purchase),view window,50mm testing hole,PL lamp,clapboard,Dry and wet gauze ball | ||||
controller | TEMI300 digital controller from South Korea | ||||
compressor | France Tecumceh | ||||
power | 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz |
1. How to choose the most suitable Mechanical Equipment ?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do andthe required specification.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15~20 working days after deposit receipt. If you are
in urgent need, we can consider making special arrangement for you.
3. Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines
according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4. Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
5. Do you have customers of our country before?
Now our testing machines have been sold to more than 80 countries, like USA, Canada, Russia,UK, Italy, Germany, European , India, Pakistan,
Philippine, Singapore, Malaysia,Thailand , Vietnam, Korea,Saudi Arabia,Brazil...and so on.
6. How about your warranty?
Generally,our warranty is two years. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers
may go to your place for better service.
7. How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air
without damage.
