Product Details:
|
| Warranty: | 3 Years | Place Of Origin: | Dongguan, China |
|---|---|---|---|
| Product Name: | Temperature Humidity Incubator | Temperature Range: | -20~150°C |
| Instrument Control Precision: | ±0.1°C 2%RH | Certification: | CE SGS ROHS UL |
| Studio Size: | 100L | Humidity Range: | 20%~98%RH |
| High Light: | Thermal Test Chamber,Environmental Test Chamber |
||

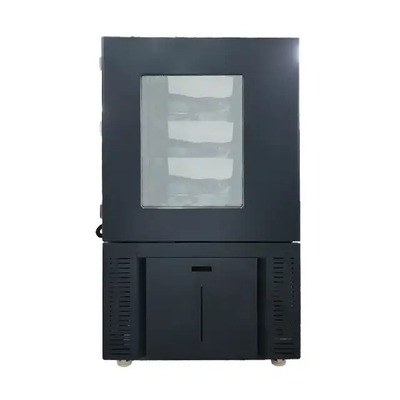

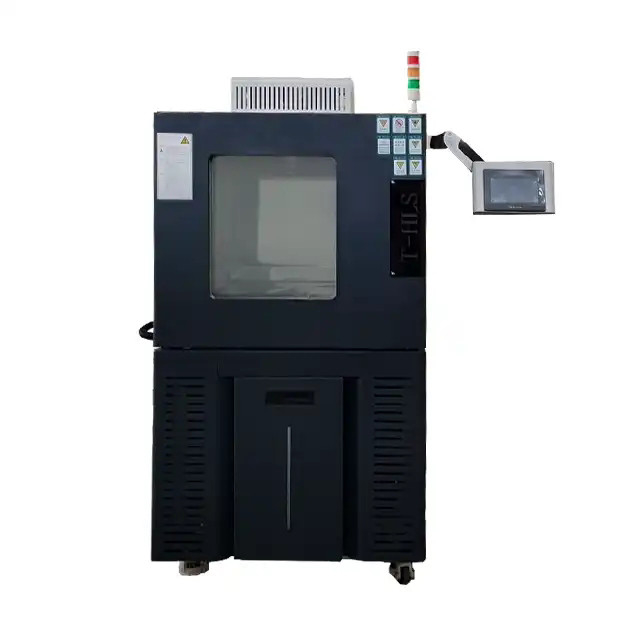

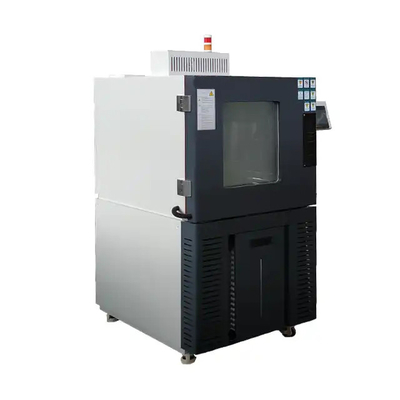

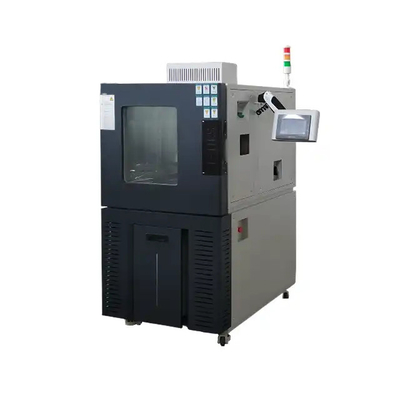

100L Temperature And Humidity Environment Climate Test Chamber Model GSA-81
product presentation:
The Environmental climate test chamber is simulation under the condition of product in humid climate
environment combination (high and low temperature operation & storage, temperature cycle, high temperature and high humidity, low temperature and humidity and condensation test, etc.), check whether the adaptability and characteristics of the product itself.
Does need to be met the requirements of international standard (IEC, JIS, GB, MIL...).International quantum measurement procedures in order to achieve consistency (including test steps, conditions, methods) to avoid different cognitive, and narrowing the scope of measurement uncertainty.
Environmental climate test chamber
| Specification | GSA-81 | GSA-81 | GSA-81 | GSA-81 | GSA-81 | |||||
| Workroom Sizes W*D*H (cm) | 50x40x50 | 50x50x60 | 60x60x70 | 80x70x90 | 100x100x100 | |||||
| Inner chamber volume(V) | 100L | 150L | 252L | 504L | 1000L | |||||
| Outer dimension W*D*H(cm) | 98x95x160 | 98x105x170 | 108x112x180 | 128x125x200 | 148x155x210 | |||||
| Packing Size | 113x110x175 | 113x120x185 | 123x127x195 | 133x140x215 | 163x160x225 | |||||
| G.W(kg) | 360 | 390 | 450 | 480 | 620 | |||||
| Temperature Range | A: -20°C-150°C B: -40°C-150°C C: -60°C-150°C D: -70°C-150°C | |||||||||
| Temperature Fluctuation | ≤±0.5°C(standard)/≤±0.2°C(optional) | |||||||||
| Temperature Evenness | ≤±2°C | |||||||||
| Temperature Deviation | ≤1°C | |||||||||
| Accuracy | 0.1°C,1.5%R.H (standard)/0.01℃,1.5%R.H(optional) | |||||||||
| Humidity Range | 20%~98%R.H/ 10%~98%R.H(optional) | |||||||||
| Humidity Deviation | ±2% R.H | |||||||||
| Temperature Rise Speed | 1.0°C~3.0°C/min | |||||||||
| Temperature Down Speed | 0.7°C~1.2°C/min | |||||||||
| Time needed for heating | RT°C~150°C≤30min | |||||||||
| Time needed for cooling | RT°C~-40°C≤60min | |||||||||
| The machine noise | 72 dB(A) | |||||||||
| Load on the largest |
100kg,≤20kg/ layer |
150kg,≤26kg/ layer |
260kg,≤30kg/ layer |
260kg,≤40kg/ layer |
300kg,≤60kg/ layer |
|||||
| Equipment installed power | ~3.25KW | ~3.55KW | ~3.95KW | ~5.5KW | ~6.25KW | |||||
| material | Inner chamber:# SUS 304 stainless steel | The outer wall:A3 carbon steel plate with plastic spray/#SUS304 | ||||||||
| Wind Cycling Way | Centrifugal fan forced air circulation | |||||||||
| Refrigeration Way | Single stage compression refrigeration | |||||||||
| Refrigerater | French Tecumseh | |||||||||
| Refrigerants | R4O4A USA Dupont environmental protection refrigerant | |||||||||
| Condensing Way | Air-cooled or water-cooled | |||||||||
| Heater | Nickel chrome heating wire heater | |||||||||
| Humidifier | Semi-closed steam and wet | |||||||||
| Water Suplying Way | Automatic cycling water supply | |||||||||
| Controller | Japan OYO/Korea Temi/HLS | |||||||||
| Standard Accessoriesparts | 1 Observe window(double-deck cavity toughened glass),50mm testing hole,PL internal bulbs,partition plate,dry and wet ball gauze,3 fuses,1 power line | |||||||||
| Safety device | Compressor overload protection, fuse protection, Overheat protection,humidifier dry-combustion protection ,high/low pressure of refrigerator ,over-humidity and temperare protection,water shortage protection,over-current protection,Over-current circuit breaker,earth leakage protection | |||||||||
Q: What's the material of machine?
A: Cast iron, stainless steel
Q: Do you accept customization service?
A: Yes, we accept non-standard customized testing apparatus.
Q: What's the production time?
A: In general, the delivery time will be about 25-45 working days after deposit receipt. If you're in urgent need, we could
try to produce your order in advance.
Q: What's the warranty and after sales service?
A: Our warranty is one year. Within warranty, after sales service is for free. For after sales service, we will dispatch our engineer
commissioning at customer's place. The air tickets and accommodations are covered by our customer. Besides, we offer commissioning by video
guidance.
Q: What's the Packaging?
A: Usually, all the machines are packed by wooden case. For
small machines and components, it is packed by carton.
Q: What's the payment term?
A: T/T, L/C and other payment terms could be negotiated.
